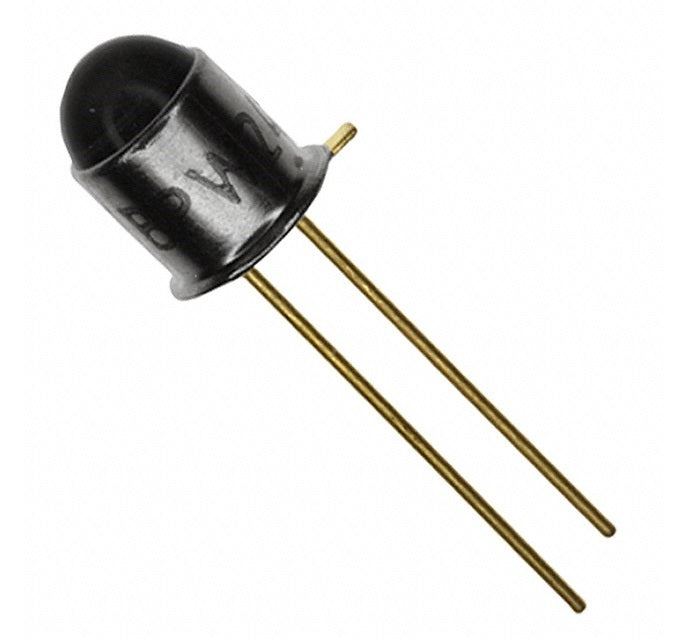

BPW24R Photodiode TO-18 - (AD35088)

Description:

The BPW24R is a high-sensitivity planar silicon photodiode in a standard, hermetically sealed TO-18 metal case with a glass lens. Precise chip alignment ensures good alignment of the mechanical and optical axes. The device features low capacitance and high speed even at low supply voltages.

Characteristics:

• Encapsulation type: leaded
• Package format: TO-18
• Dimensions (in mm): Ø 4.7
• Sensitive radiant area (in mm²): 0.78
• High photosensitivity
• High radiant sensitivity
• Suitable for visible and near infrared radiation
• Fast response times
• Semi-sensitivity angle:  = ± 12°
• Hermetic encapsulation
• Cathode connected to the encapsulation
• Chip center alignment
• Complies with RoHS Directive 2002/95/EC and WEEE Directive 2002/96/EC
