TB6560 3A Single-Axis CNC Router Stepper Motor Driver Board - (AD34836)

Description:

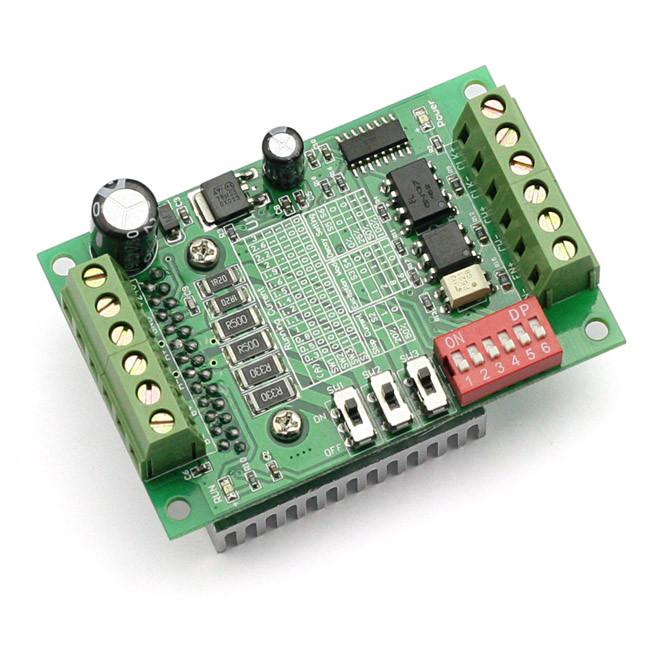

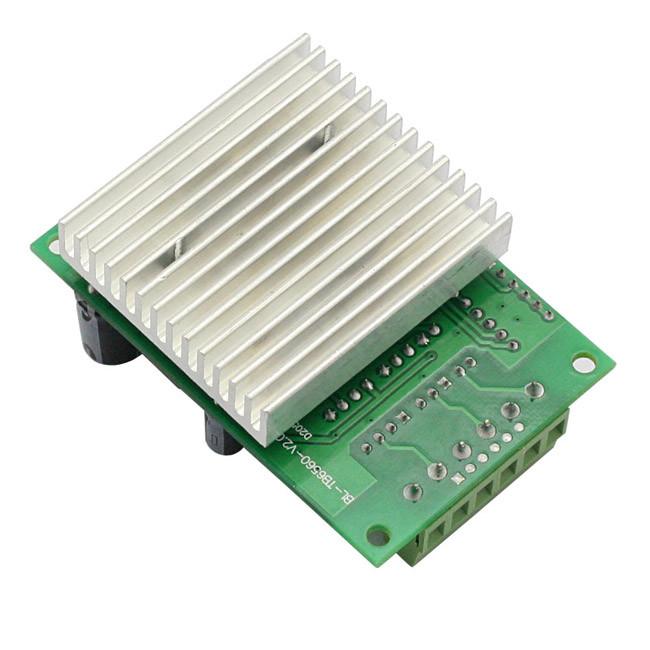

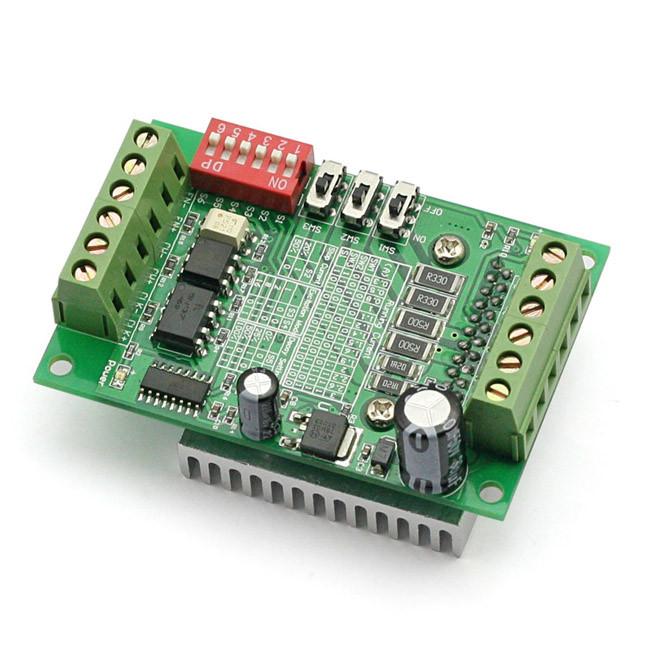

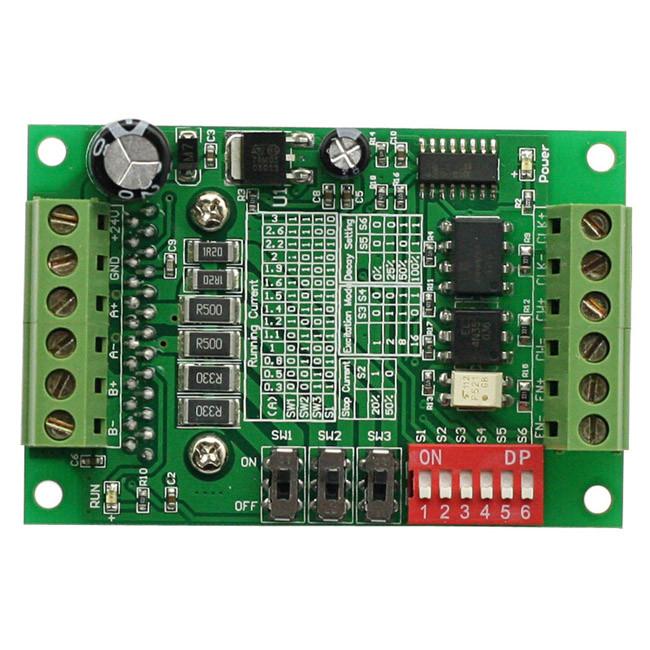

The TB6560 single-axis stepper motor driver board is based on the TB6560AHQ chip. It significantly increases motor torque and facilitates the setup of larger motors. An economical and high-quality driver for CNC or 3D printers. It has an adjustable current level to meet the various needs of your application. High-speed 6N137 optocoupler to ensure high speed without interruptions. It also has a thick heat sink for good heat dissipation.

Specifications:

• Operating voltage: DC 10V-35V.
• Recommended switching power supply: DC 24V.
• High-speed 6N137 optocoupler to ensure high speed without interruptions.
• Original Toshiba TB6560AHQ chip, new, with undervoltage shutdown, overheating protection, and overcurrent protection circuit to ensure optimal performance.
• Rated output: ±3 A, peak 3.5 A.
• For 42, 57, and 86 phase stepper motors up to 3 A, 2/4 phase, 4/6 wire. Not suitable for stepper motors over 3 A.
• Automatic semi-decay.
• Excitation mode: synchronous, half-step, 1/8 step, 1/16 step, maximum 16 segments.
• Dimensions: 50 x 75 x 35 mm
