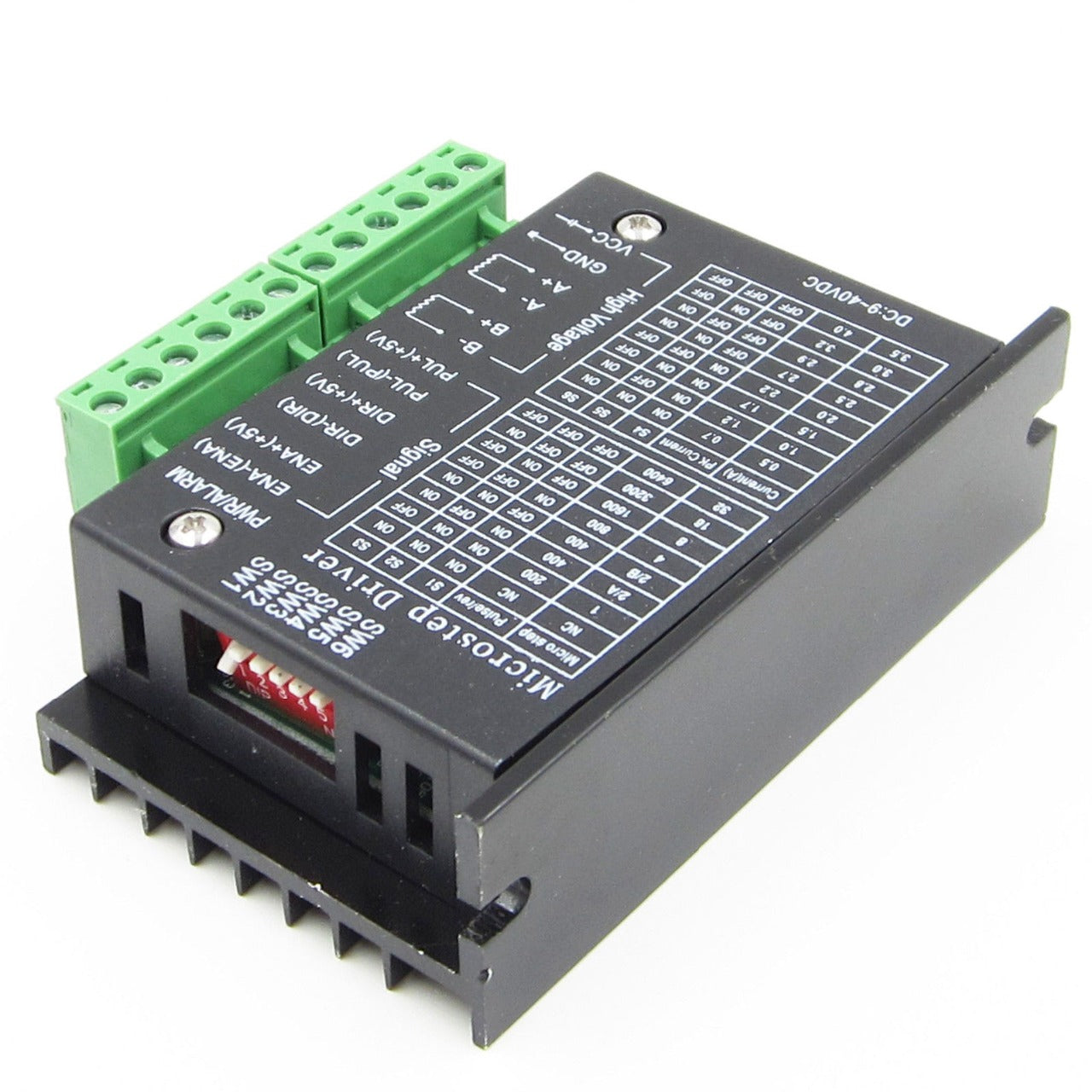

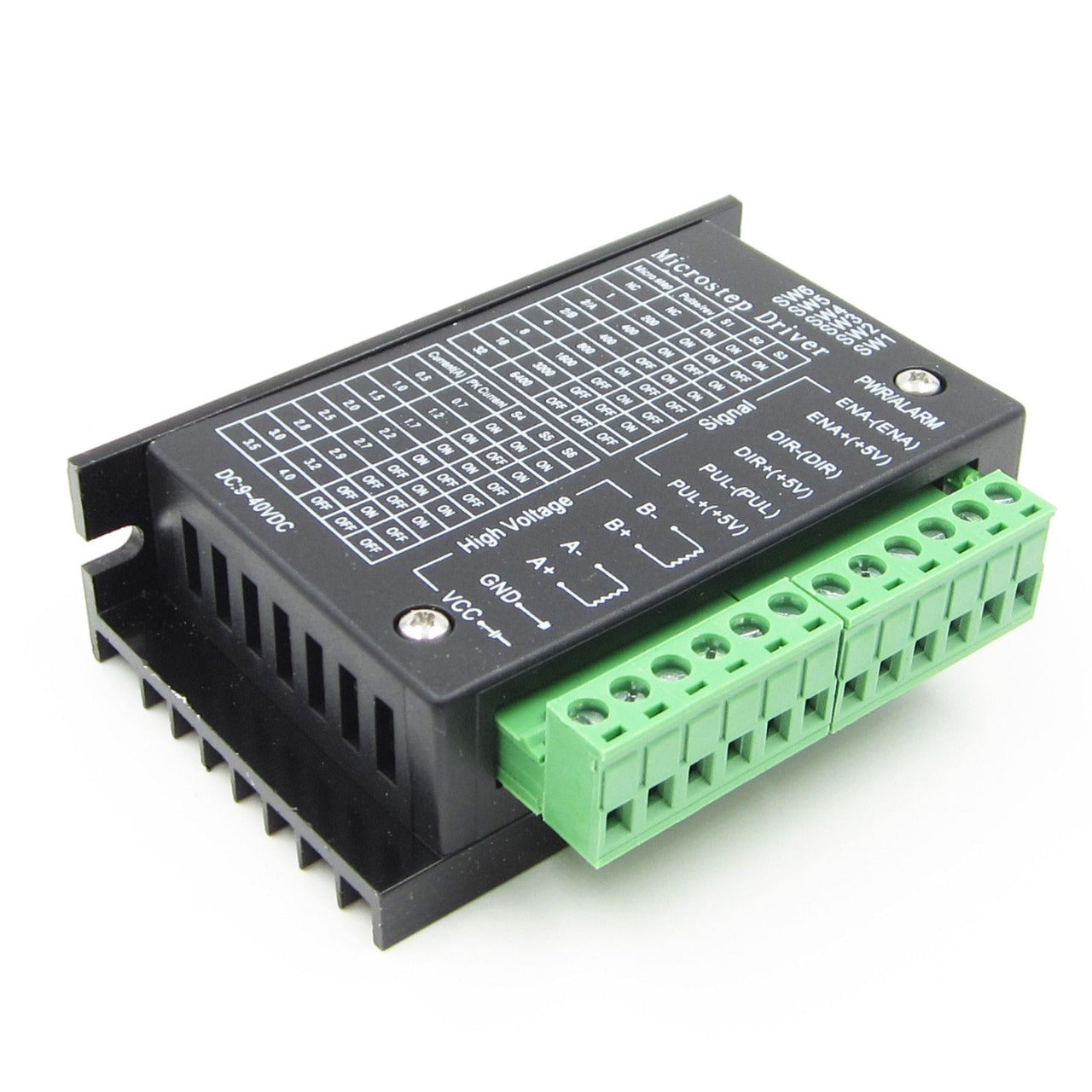

TB6600 Stepper Motor Driver Controller 9~40V @ 4A - (AD34804)

Description:

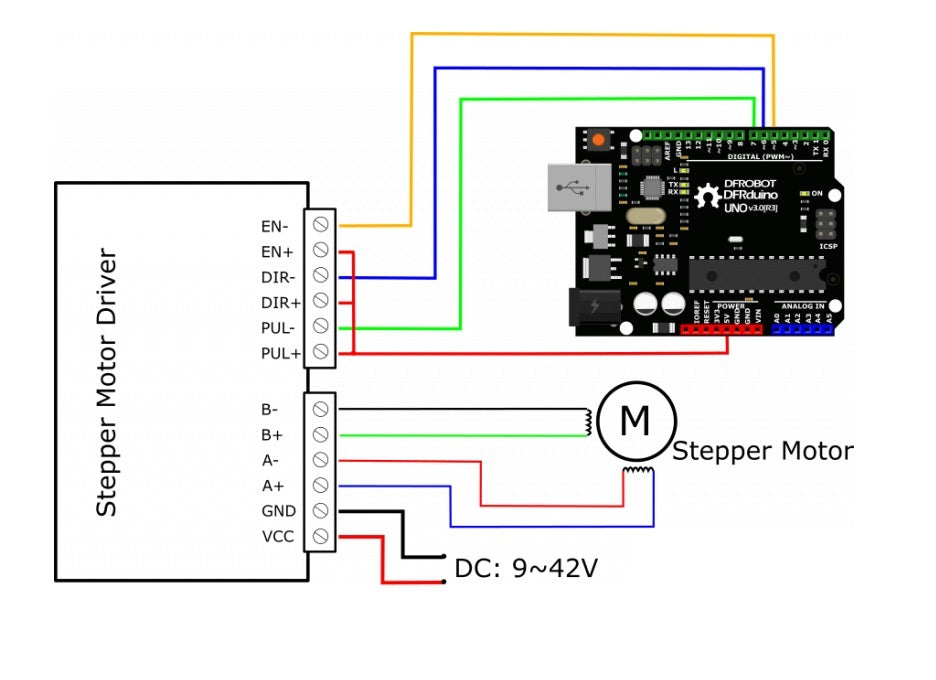

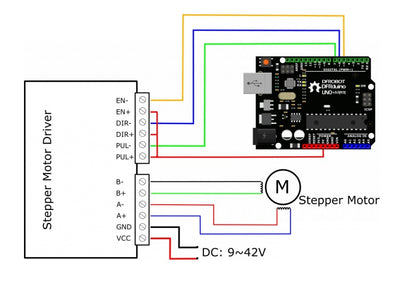

The TB6600 Stepper Motor Driver for Arduino is an easy-to-use professional driver that allows you to control two-phase stepper motors. It is compatible with Arduino and other microcontrollers that output a 5V digital pulse signal. The TB6600 driver for Arduino offers a wide power input range, with a power supply of 9 to 42 VDC. Additionally, it can output a peak current of 4 A, which is sufficient for most stepper motors.

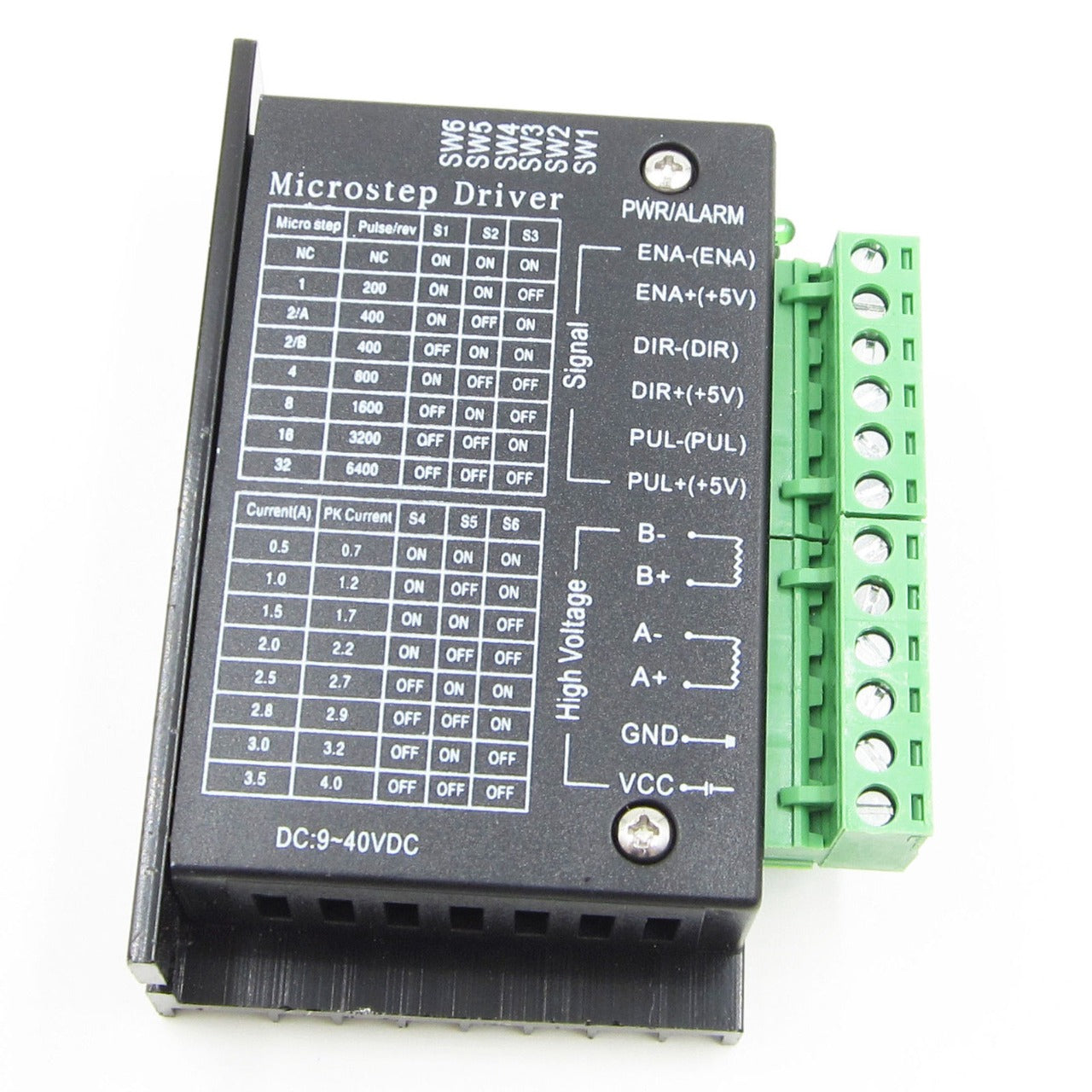

The controller allows you to control speed and direction. Micro-stepping and output current can be configured using 6 DIP switches. It has 7 types of micro-stepping (1, 2/A, 2/B, 4, 8, 16, 32) and 8 types of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A). All signal terminals incorporate high-speed optocoupler isolation, which improves their anti-high-frequency interference capability.
As a professional device, it can control 57 and 42 type, two-phase and four-phase hybrid stepper motors.

Note: This is an improved version of the TB6600 stepper motor driver.

Features:

• Supports 8 types of current control
• Supports 7 types of adjustable micro-stepping
• The interface uses high-speed optocoupler isolation
• Automatic semi-flow to reduce heat

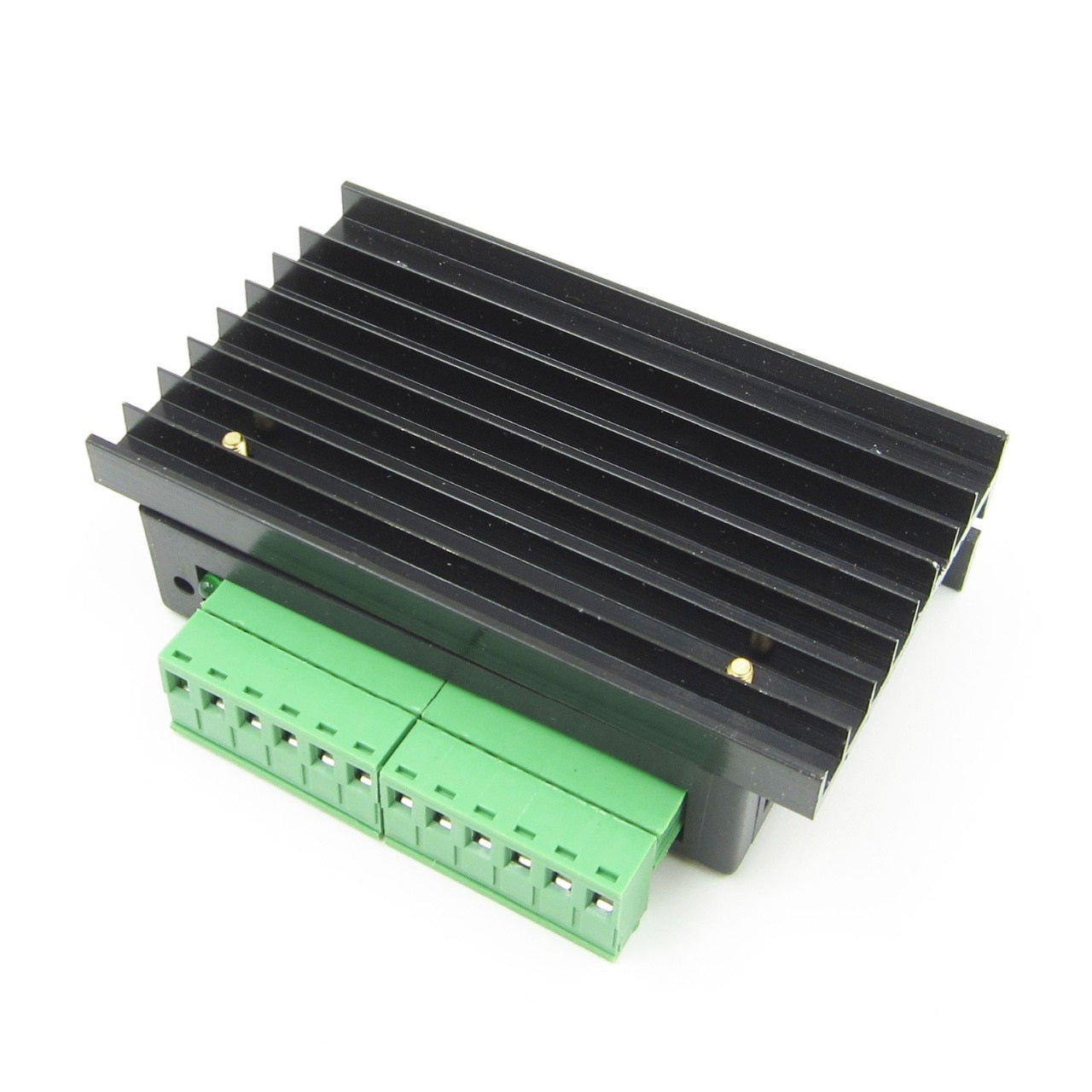

• Large surface heat sink
• Ability to prevent high-frequency interference
• Input reverse connection protection
• Over-temperature, over-current, and short-circuit protection

Specifications:

• Input current: 0~5 A
• Output current: 0.5~4.0 A
• Power (MAX): 160 W
• Micro-stepping: 1, 2/A, 2/B, 4, 8, 16, 32
• Temperature: -10~45°C
• Dimensions: 96 x 71 x 37 mm
