MDF MeArm V0.3 - Pocket Sized Robot Arm - (AD34736)

Description:

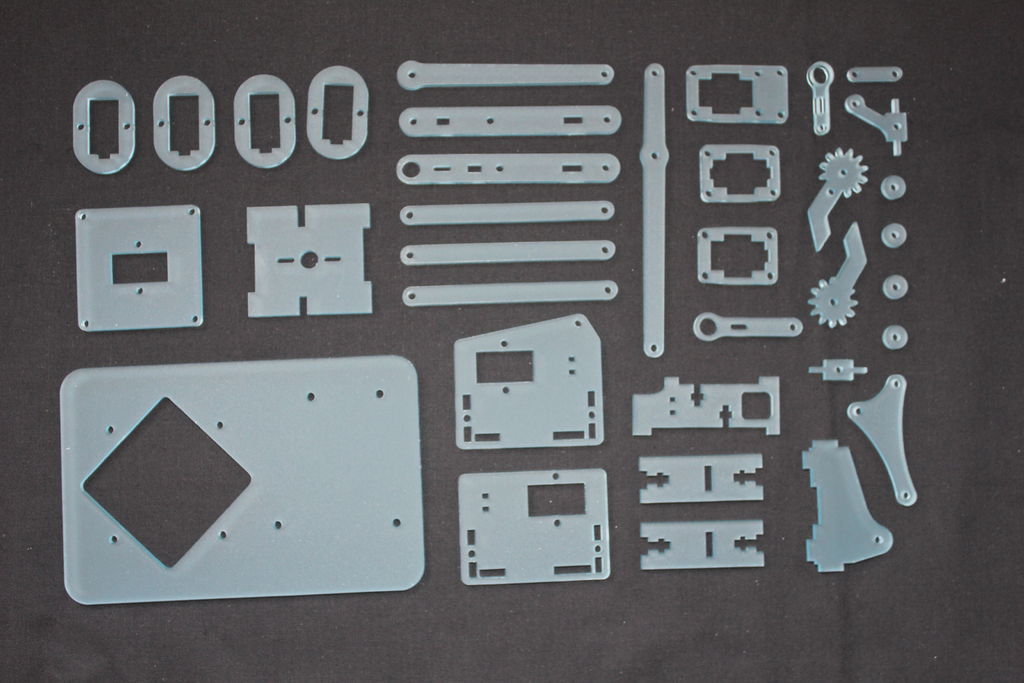

The meArm was designed with economy in mind. It is understood that laser cutters are not the most common tools, but now more of them are at hand! This model is available on the web in dxf for download and use with a laser cutter. MicroJPM makes it available ready to assemble. This kit is available in MDF and acrylic, for the latter you will have to remove all the protective covering. Not the most fun job, but the end result is better!

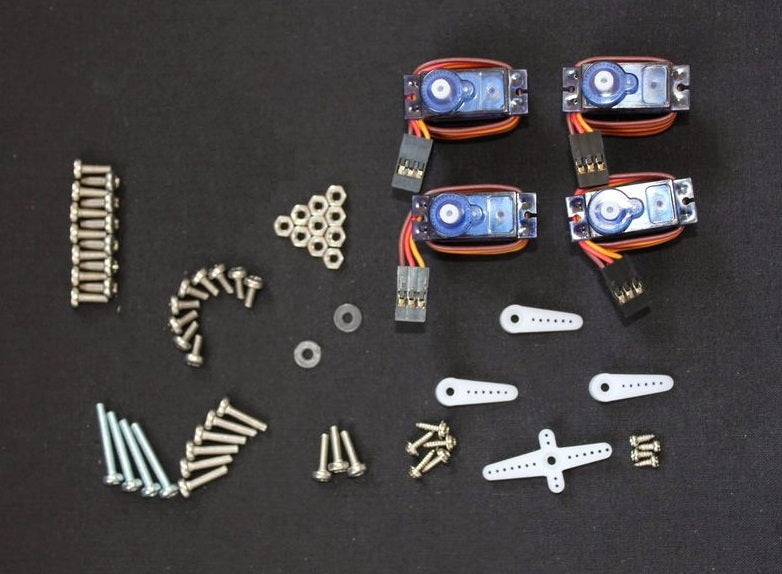

Then you will need all the screws and nuts. We use standard M3 (metric 3mm) parts. The number of these to build the latest version is:

- 10x M3 Nut

- 9x M3x6mm Screw

- 12x M3x8mm Screw

- 3x M3x10mm Screw

- 7x M3x12mm Screw

- 4x M3x20mm Screw

This kit includes 4x SG90 servo motors
