9-Pin Chassis Connector - Panel Mount (male and female) - (AD34672)

Description:

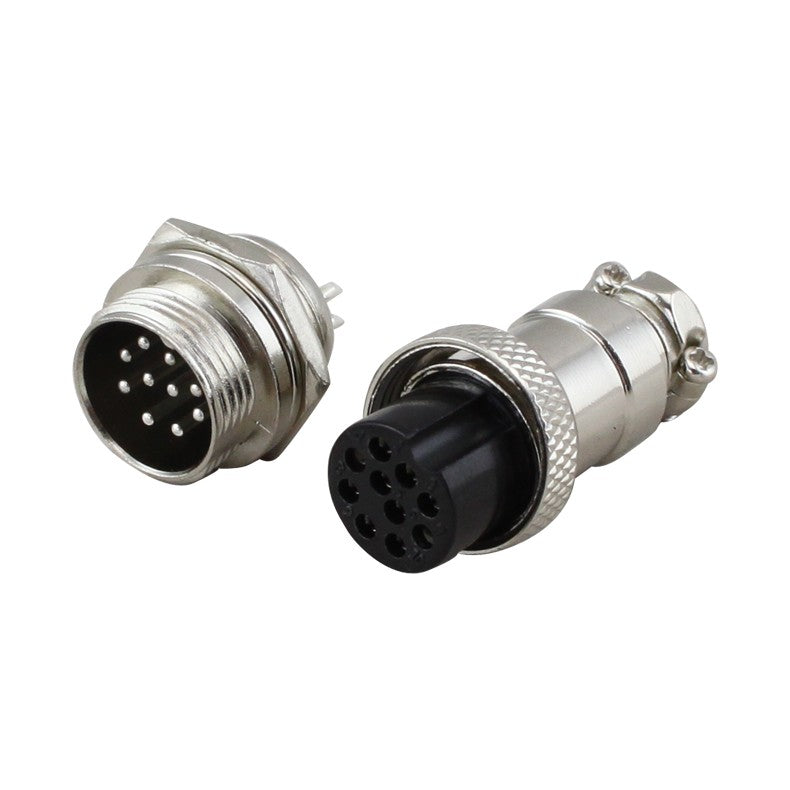

This 9-pin connector and jack set is excellent when you need to make a robust connection for signal or power. This product consists of two separate parts, the panel mount connector, and the mating jack. The jack has a ring that screws onto the panel mount connector to ensure a solid connection that will not pull off.

The connector uses 9 solder cup connections for easy wiring. The panel mount side mounts to a 15.5mm hole with the help of a lock washer and nut (both included). The jack also uses solder cup terminals and separates for easy assembly. It even has a strain relief clamp on the end that grips to 5mm for a sturdy connection. The pins are clearly labeled on both the connector and the jack.
