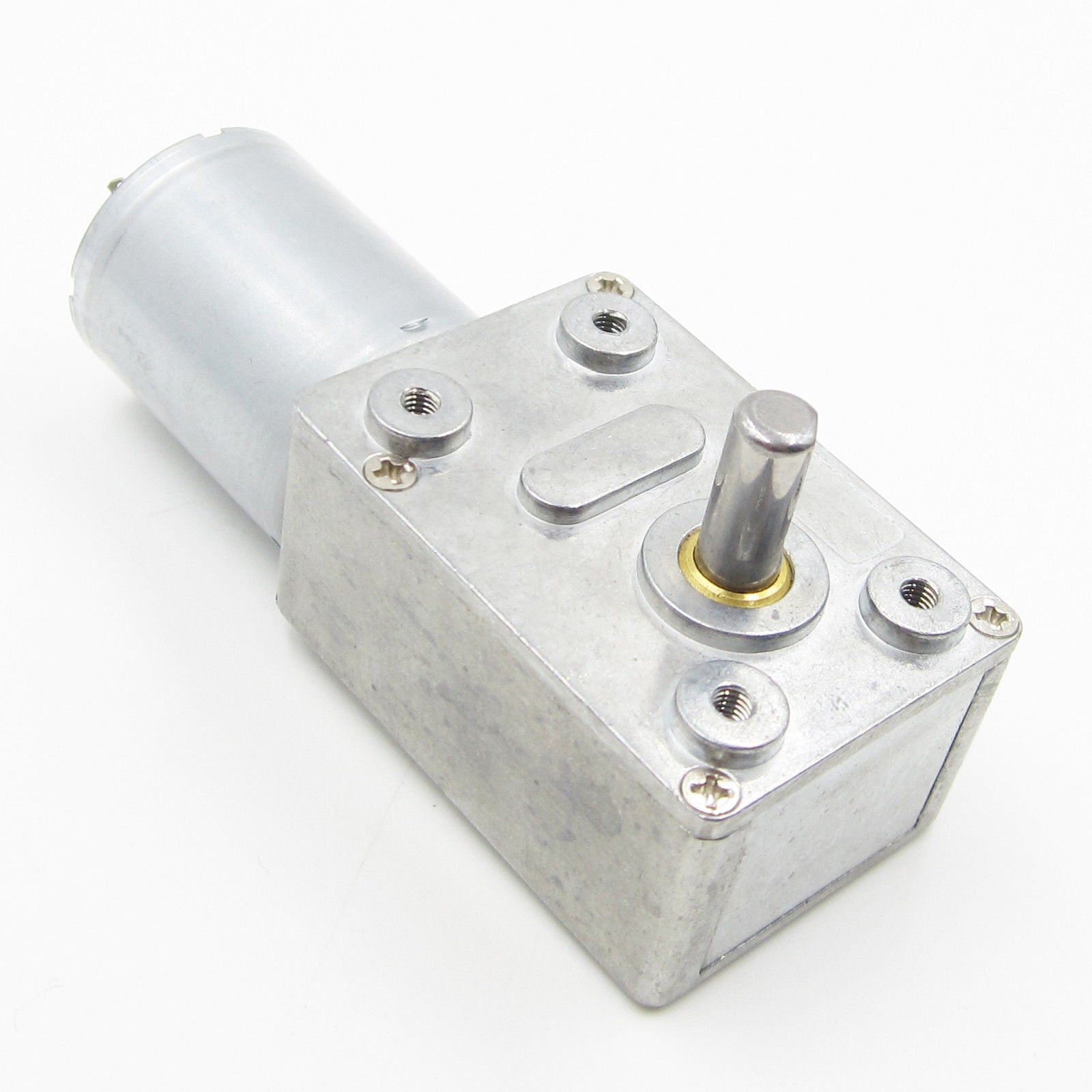

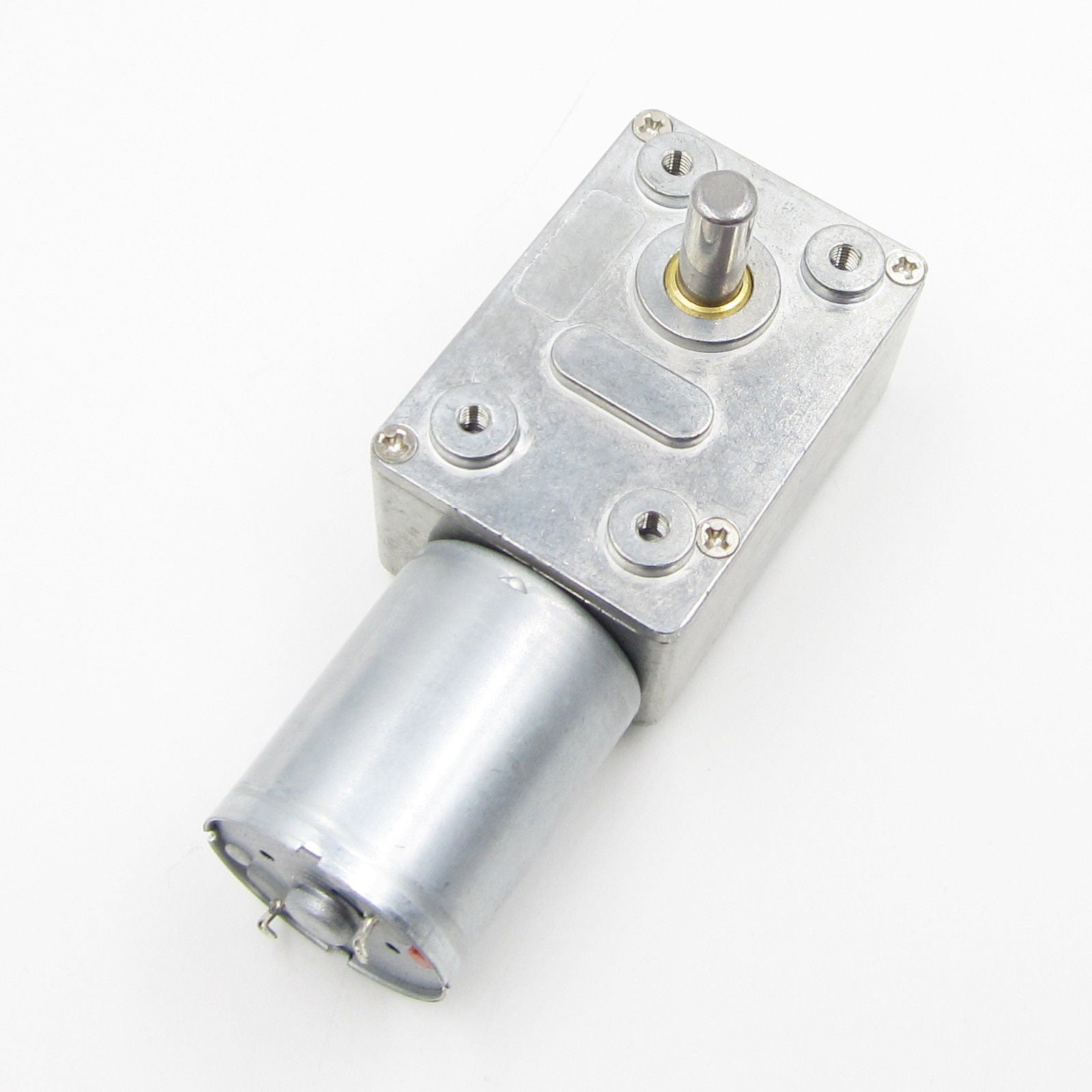

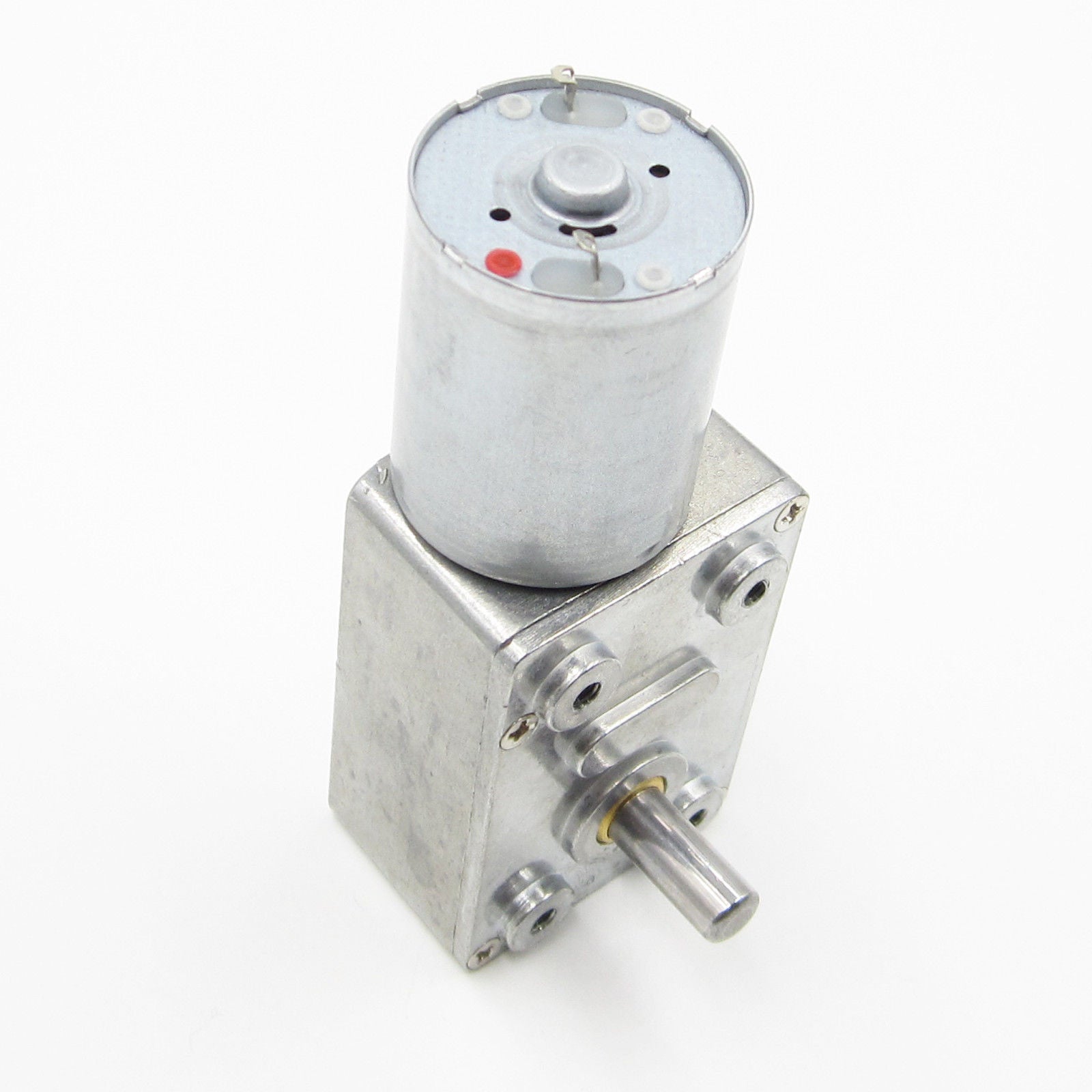

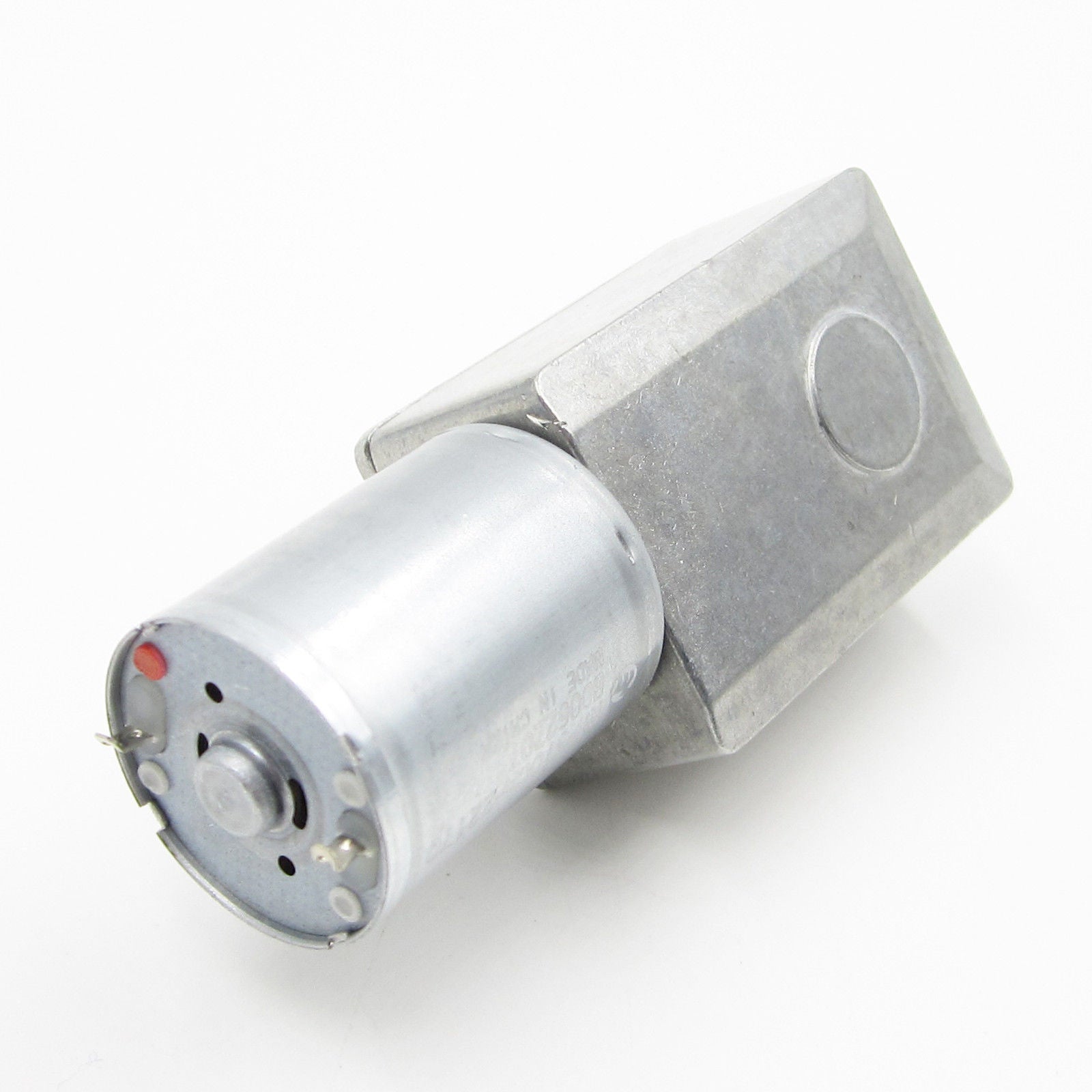

JGY-370 40RPM Powerful Torque Gear Motor - (AD34216)

Description:

These DC motors with metallic gearboxes are incredibly strong, helping you control wheels, gears, or anything else you need to rotate. These small but powerful motors have a gear ratio of 150:1 and operate at 12 VDC. They can develop a torque of 15.5Kg-cm and a maximum speed of 40 RPM; additionally, their shaft has a standard diameter of 6mm.

Features:

- Voltage: 3 - 12Vdc

- Gear ratio: 150:1

- Torque: 15.5 Kg-cm (@ 12V)

- Speed: 40 RPM (@ 12V)

- No-load current: 90 mA (@ 12V)

- Rated current: 0.62A (@ 12V)

- Starting current: 2.8A (max)

- Insulation resistance: 1.0 Mohm

- Reversible DC Voltage

- Shaft dimensions: 6mm Diameter x 18mm Length

- Gearbox dimensions: 37mm Diameter x 60mm Length

- Motor Model: RF-370CA-22170 (DC: 12V, 6000rpm)

- Gearbox Model: (DC 12V, rpm: 40)

Datasheet
