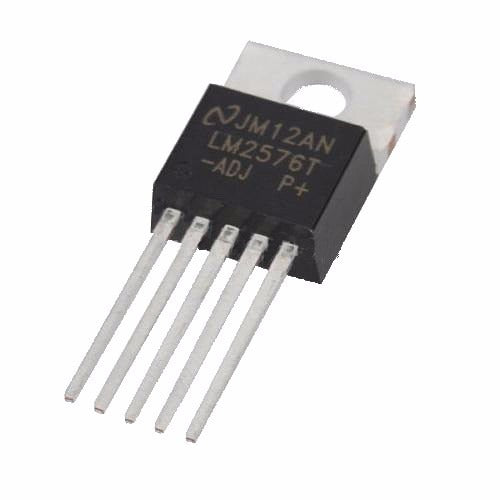

LM2576 Switching Voltage Regulator [+ADJ] - (AD33947)

Description:

The LM2576 is a monolithic integrated voltage regulator circuit that provides all the functions of a switching regulator, capable of driving 3A loads with excellent line and load regulation. These devices have voltage outputs of 3.3V, 5V, 12V, 15V, and an adjustable output version.

Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation and a fixed-frequency oscillator.

Features:

- Output version: Adjustable

- Range: 1.23V to 37V +/-4%

- Output current: 3A

- Wide input voltage range: 40V to 60V

- Requires only 4 external components

- Internal frequency oscillator set to 52KHz

Datasheet
