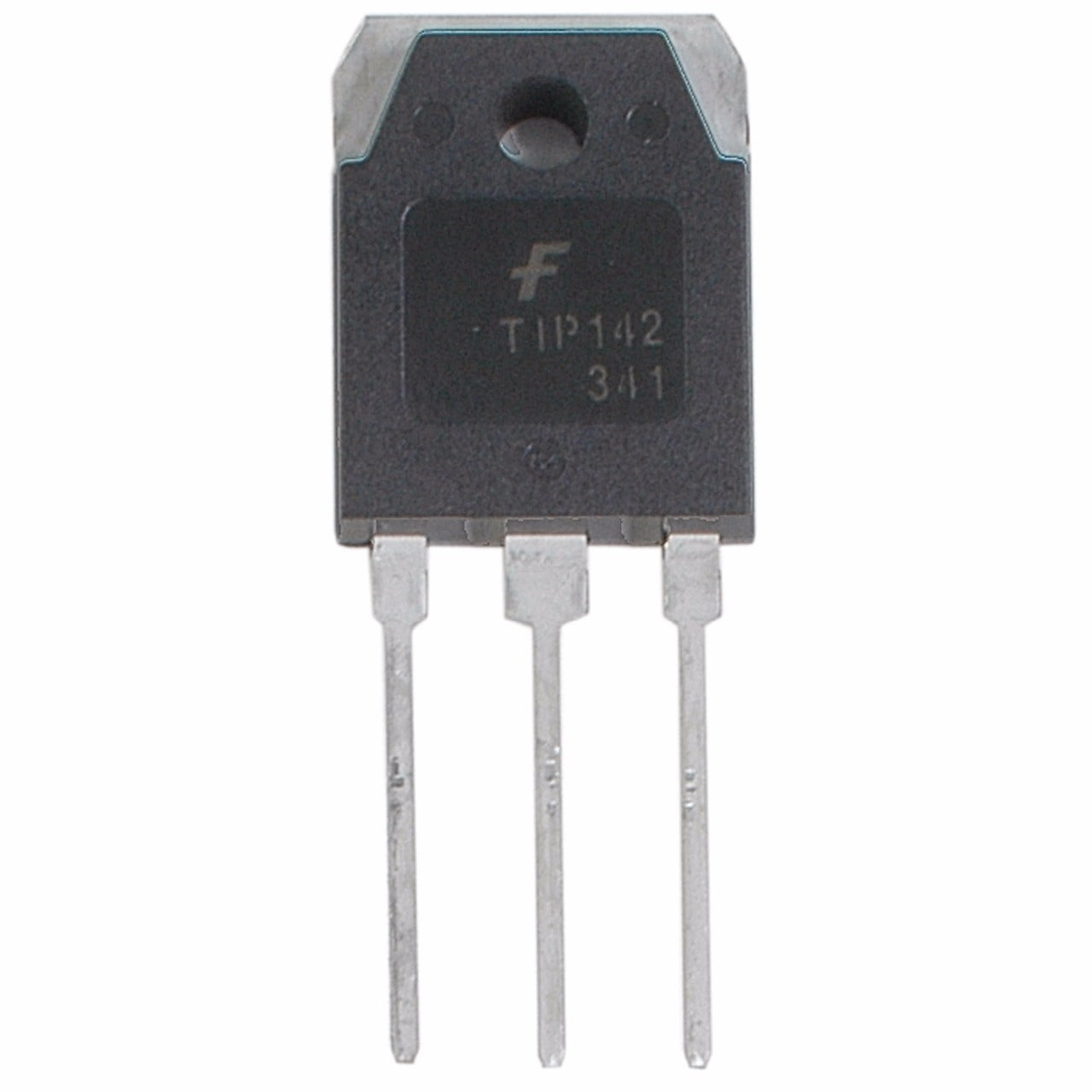

TIP142 NPN Darlington Transistor 100V @ 10A (TO-218) - (AD3355)

Description:

The TIP140, TIP141, and TIP142 are epitaxial-base NPN silicon power transistors in a monolithic Darlington configuration, mounted in a TO-218 plastic package. They are intended for use in linear and power switching applications. The complementary PNP types are TIP145, TIP146, and TIP147 respectively.

Specifications:

- Collector-Base Voltage: 100V

- Collector-Emitter Voltage: 100V

- Emitter-Base Voltage: 5V

- Collector Current: 10A

- Peak Collector Current: 20A

- Base Current: 0.5A

- Power Dissipation: 125W

- Operating Temperature: -65 to +150°C

Datasheet
