Shaft Coupler - 1/4" to 6mm [ROB-12211] - (AD33537)

Description:

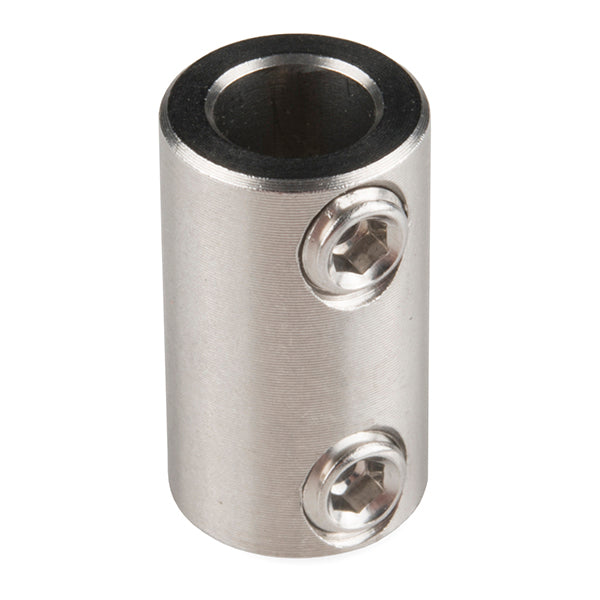

These stainless steel shaft couplers allow you to couple shafts of two sizes. They are for connecting motor shafts to drive shafts, or two shafts of different sizes. These shaft couplers are 0.75” long with an OD of 0.42” and couple a 1/4” to a 6mm shaft.

Actobotics is a robotics construction system based on extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, almost all Actobotics components can be intuitively connected. The wide range of components makes it easy to build complex electromechanical prototypes or finished projects.

Features:

• Length: 0.75”
• Diameter: 0.42”
• Inner Diameter A: 1/4”
• Inner Diameter B: 6 mm

Documents:

• SketchUp Part
• Product Page (625106)
