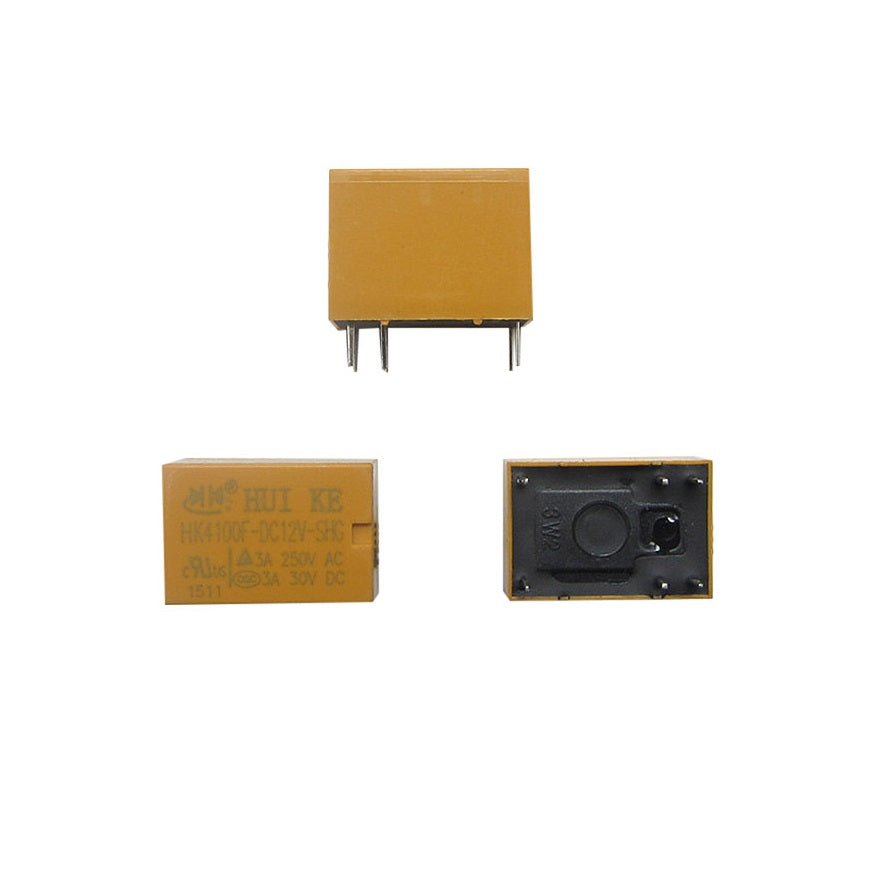

HK4100F-DC12-SHG Relay 12VDC - (AD3333)

Description:

DC power relays interrupt high-capacity DC loads and high-voltage DC circuits in a compact, quiet design. The switching section and drive section are gas-injected and hermetically sealed, allowing these compact relays to interrupt high-capacity loads. The sealed construction also requires no arc space, saving space and helping to ensure safe applications.

These are double-pole, single-throw (DPST) protection relays. Use them to switch high-voltage and/or high-current devices. The coil of this relay is rated for up to 12V, with a maximum switching voltage of 250VAC, 30VDC. The contacts are rated for up to 3A (at 250VAC; 3A at 30VDC).

Features:

- Switching capacity for 3A in a small size design for high-density PCB mounting techniques

- Selection of plastic material for high temperature and better thermal performance

- Completely sealed

Coil Specifications:

- Rated voltage: 12V

- Power: 0.36W

Contact Specifications:

- Ratings: 250VAC @ 3A, 30VDC @ 3A

- Maximum switching current: 3A

- Maximum voltage: 250VAC

- DPST: Double Pole, Single Throw
