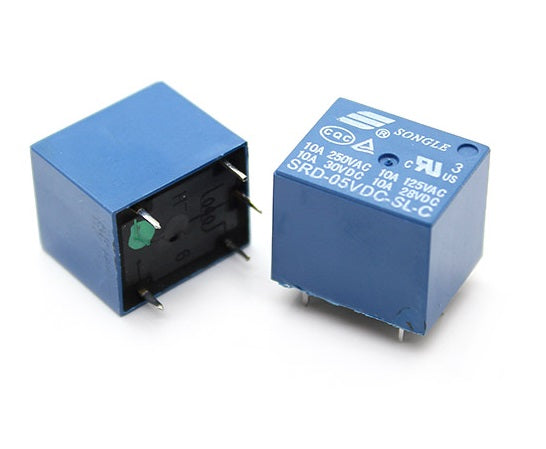

SRD-05VDC-SL-C Relay SPDT 5VDC - (AD3321)

Description:

DC power relays interrupt high-capacity DC loads and high-voltage DC circuits in a compact, quiet design. The switching section and drive section are gas-injected and hermetically sealed, allowing these compact relays to interrupt high-capacity loads. The sealed construction also requires no arc space, saving space and helping to ensure safe applications.

These are single-pole, double-throw (SPDT) protective relays. Use them to switch high-voltage and/or high-current devices. The coil of this relay is rated for up to 5V with a maximum switching voltage of 250VAC, 28VDC. Contacts are rated for up to 10A (at 250VAC; 10A at 28VDC).

Features:

- 10A switching capacity in a small size for high-density PCB mounting techniques

- Selection of high-temperature plastic material for better thermal performance

- Fully sealed

Coil specifications:

- Rated voltage: 5V

- Rated current: 89.3mA

- Resistance: 55 ohm

- Power: 0.45W

Contact specifications:

Resistive load capacity: 28VDC@7A, 125VAC@10A, 250VAC@7A

Inductive load capacity: 120VAC@5A, 28VDC@5A

Maximum voltage: 250VAC

Datasheet
