ATTiny85 Digispark Kickstarter Arduino - (AD32809)

Description:

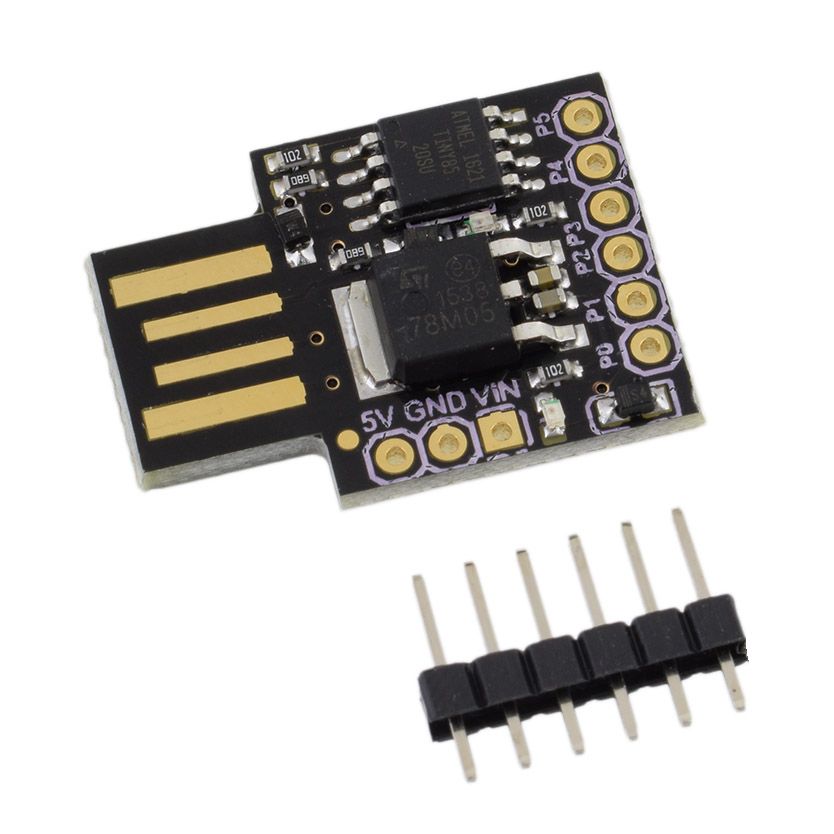

The Attiny85-based mini development board is similar to Arduino, but cheaper and smaller (of course, a little less powerful). With a wide range of shields to extend its functionality and the ability to use the well-known Arduino IDE, this board is an excellent way to get started with microcontroller electronics.

Features:

- Support for Arduino IDE 1.0+ (OSX/Win/Linux)

- Power via USB or external source

- Integrated 5V regulator

- Built-in USB

- 6 I/O pins

- 8k Flash memory (about 6k after bootloader)

- I2C and SPI (versus USI)

- PWM on 3 pins (more possible with Software PWM)

- ADC on 4 pins

- Power LED and test/status LED

- Typically, this board comes fully assembled with a pre-burned bootloader. As the bootloader is already burned, the built-in LED will start flashing when powered on, but you need to install the corresponding driver before the first programming.

Reference link 1

Reference link 2
