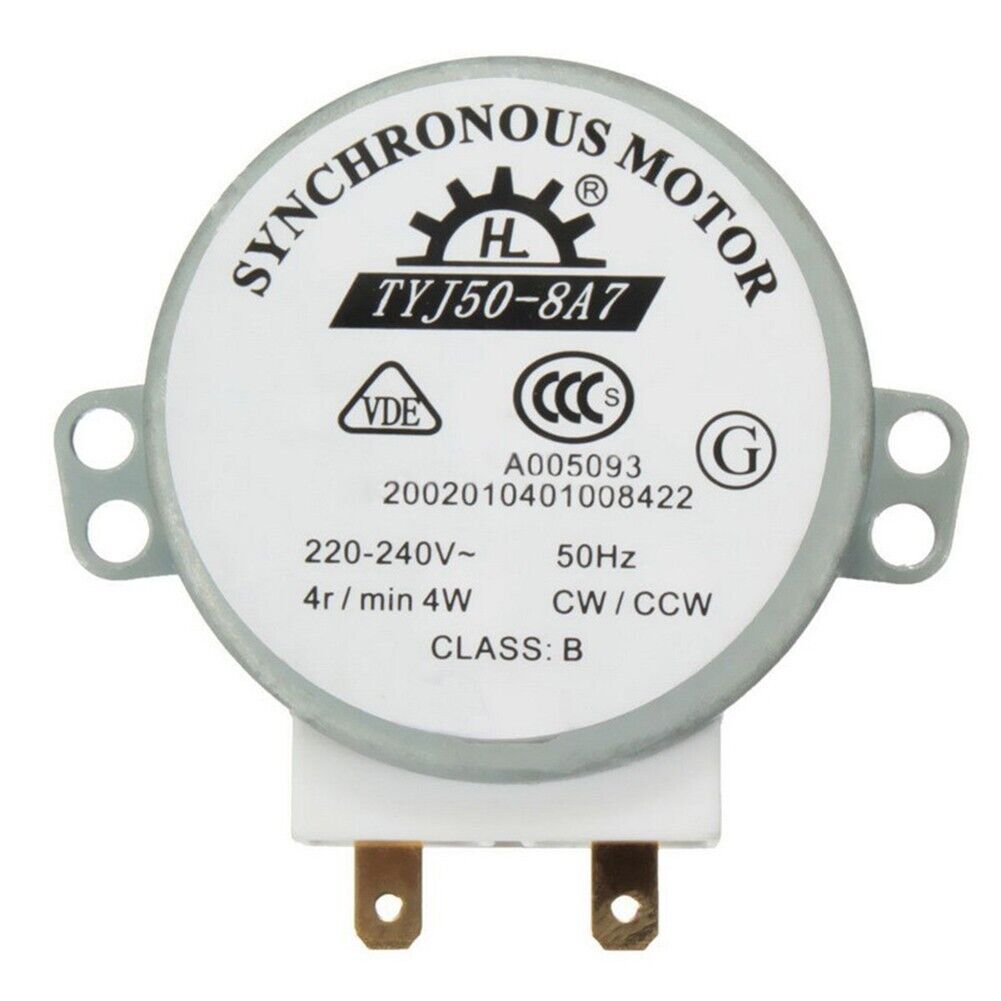

TYJ50-8A7 AC 100V-240V 50Hz CW/CCW Microwave Synchronous Motor 4 RPM - (AD32786)

Description:

This is a small but robust synchronous motor, operating from 100 to 240 VAC and producing very little noise. You can use it as a replacement motor for a microwave oven or it can be a very good option for use in your electronics projects where you need high torque at very low power.

Specifications:

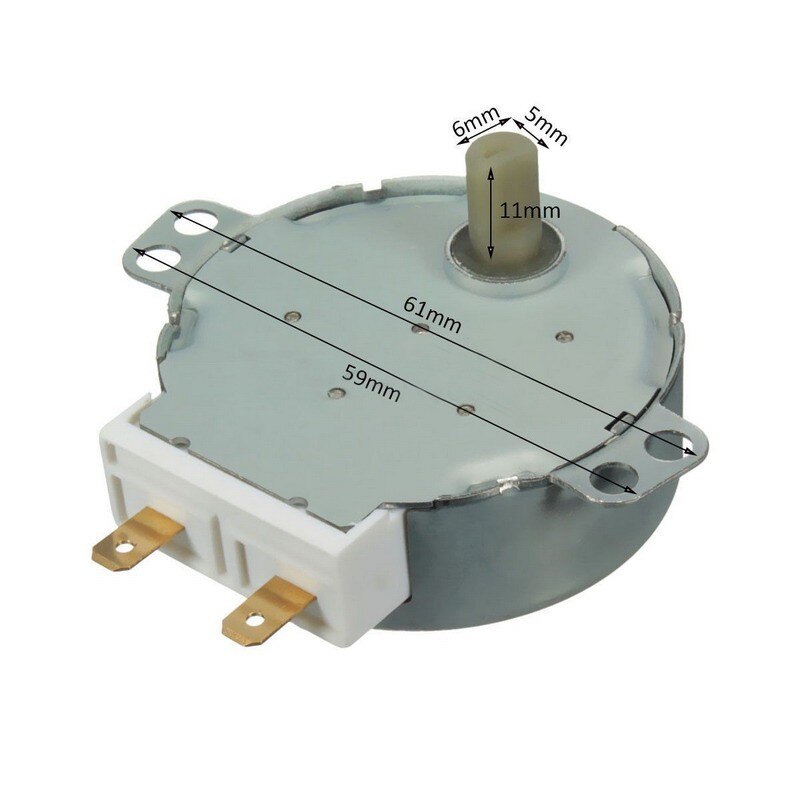

- Shaft diameter approx.: 7mm D-cut

- Shaft length approx.: 11.3mm

- Working voltage: 100 - 240 VAC

- Frequency: 50/60Hz

- Power: 4W

- Speed: 4 rev/min

- Direction of rotation: CW/CCW

- Torque: 0.5 Kgf-cm

Note: Please note that the direction of rotation of this motor is not defined by its nature. However, techniques (mechanical) can be used to control the direction of rotation.
