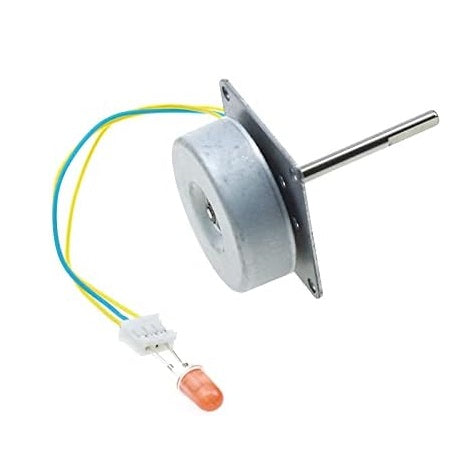

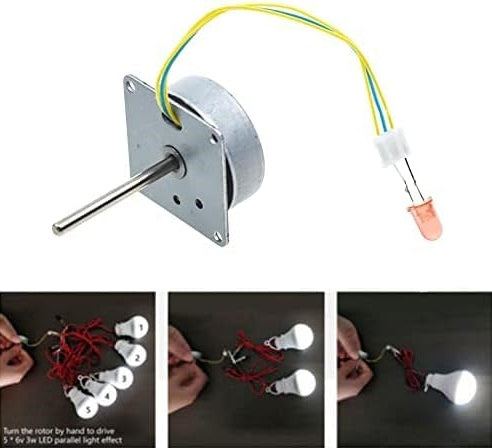

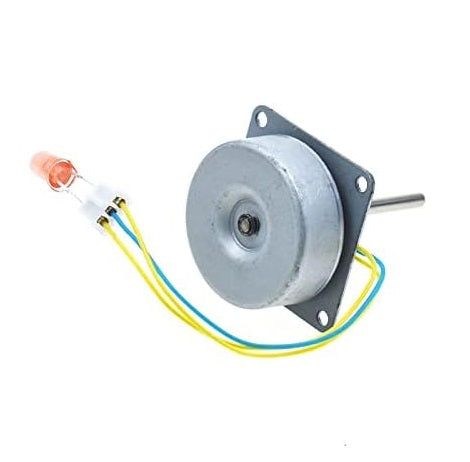

3-Phase Mini Brushless Generator 3-24VAC with LED - (AD32774)

Description:

This is a miniature version of a three-phase wind power alternator, commonly used in student electronics projects (e.g., models). The power generation type is AC, the generator material is permanent magnet; the shaft diameter is 3mm; it can generate from 3V to 24V proportional to RPM; it can deliver 0.03 to 0.3A of output current; the rated speed is 3000 RPM; this mini-generator has a cable with a JST-type terminal for easier connection.

Features:

- Dimensions: 30x30x13mm (excluding shaft length)

- Hole spacing: 25mm

- Shaft length: 31mm

- Shaft diameter: 3mm
