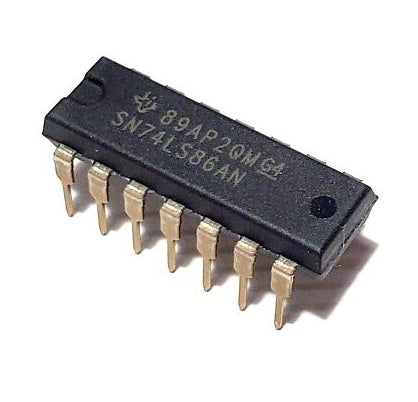

74LS86 XOR Gate - (AD3237)

Description:

The 74LS86 XOR Gate operates with a 5V supply voltage and a maximum supply current of 10mA, ensuring energy efficiency. Its operating range is 0 to +70°C, showing high thermal stability. It features HIGH state output current of -0.4mA and LOW state output current of 8.0mA, with minimum input voltage levels of 2V for HIGH and maximum of 0.8V for LOW. The output provides 3.5V for HIGH and 0.35V for LOW, ensuring clean and precise signals for advanced logic applications.

Datasheet
