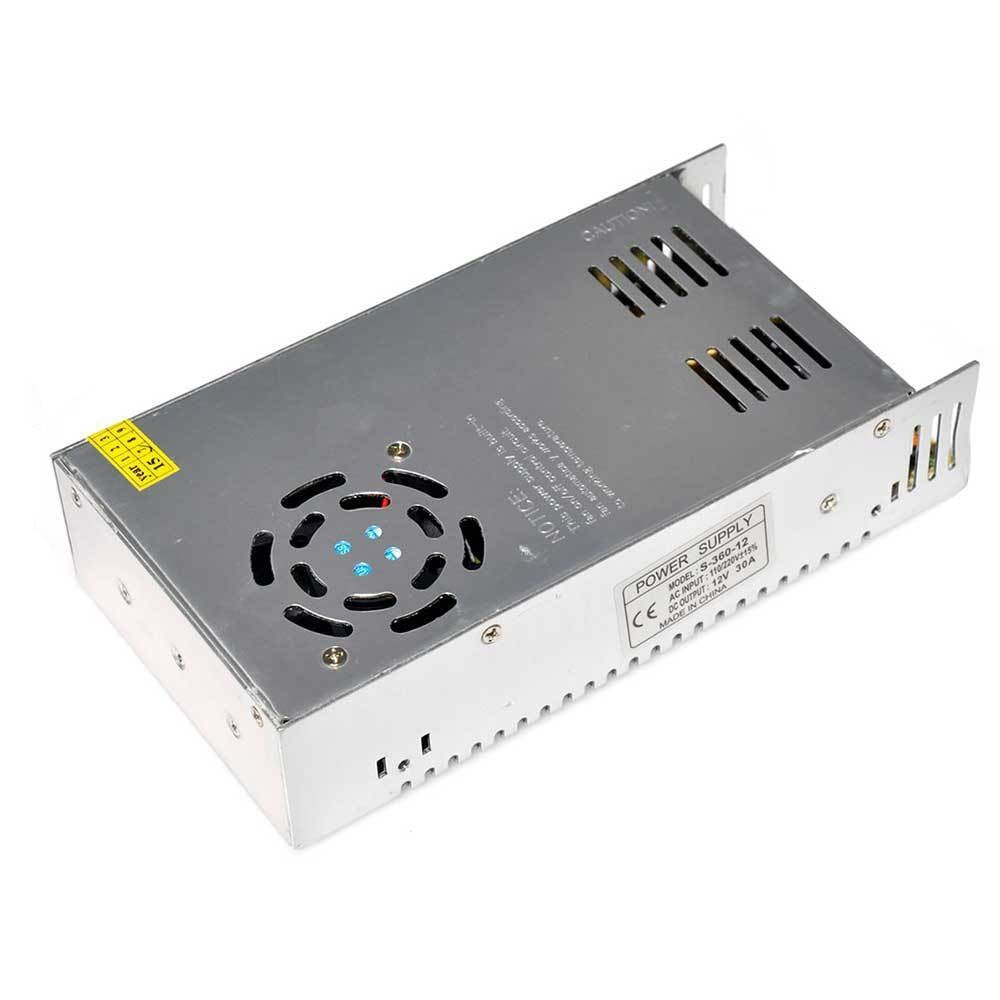

S-360-12 Switch Power Supply 12VDC @ 30A - (AD31763)

Description:

This is a 360W single-output switching power supply. This power supply is extremely reliable and can output 12VDC at 30A. We have been testing this power supply for quite some time and can definitely attest to its durability with its metal casings, short circuit protection, overload, and surge protection. Inside the metal casing surrounding the power supply, you will find a selector switch to change the voltage range between 110VAC and 220VAC. This specific model is fan-cooled and operates at a temperature of -20°C to +60°C. These power supplies are truly high-quality and should last quite a while without loss of reliability.

Characteristics:

- AC input range selected by switch

- Protections: Short-Circuit / Over-Load

- Fan-cooled

- LED indicator for power on

- Switching frequency: 27KHz

Data sheet
