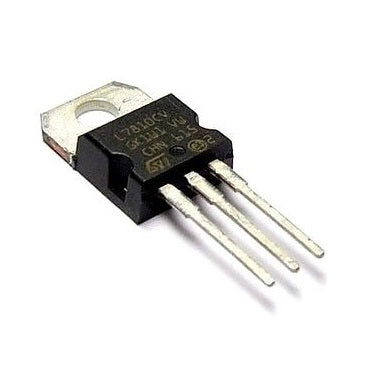

L7810 Voltage Regulator +10VDC @ 1.5A - (AD315)

Description:

This is the basic 7810 voltage regulator in a TO-220 package, a three-terminal positive regulator with a fixed output voltage of 10V. This fixed regulator provides local regulation, internal current limiting, thermal shutdown control, and safe area protection for your project. Each of these voltage regulators can generate a maximum current of 1.5A.

Features:

- Output voltage: 10V

- Max. Output Current: 1.5 A

- Package: TO-220

- Max. Input Voltage: 24V

- Min. Input Voltage: 12.5V

- Operating temperature range: 0°C to +150°C

- Number of pins: 3

Datasheet
