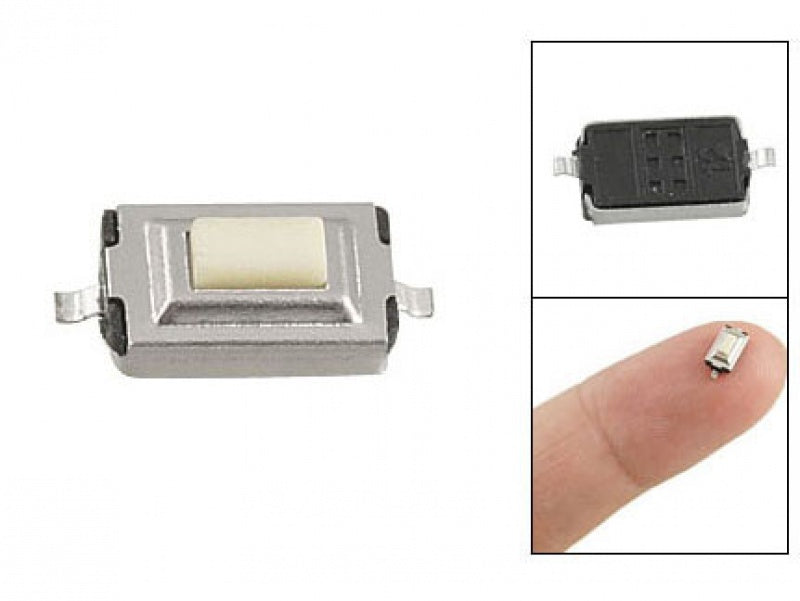

3x6x2.5mm (SMD) Tactile Push Button 2-Pin N.O. - (AD31289)

Description:

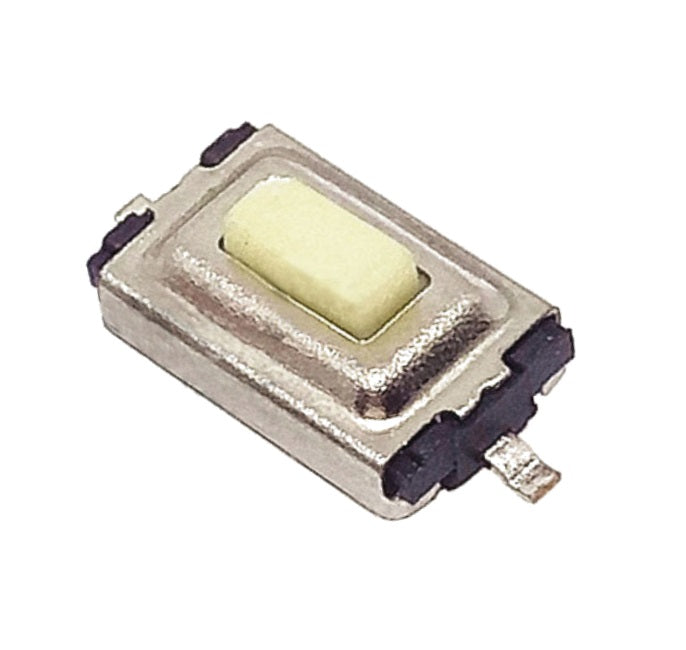

This is a miniature surface mount momentary button. These are great low profile momentary switches. Perfect as a tactile reset switch. Rated up to 50mA.

Specifications:

- Product Name: Tact Switch

- Contact Type: Momentary Contact

- Mounting Type: SMD

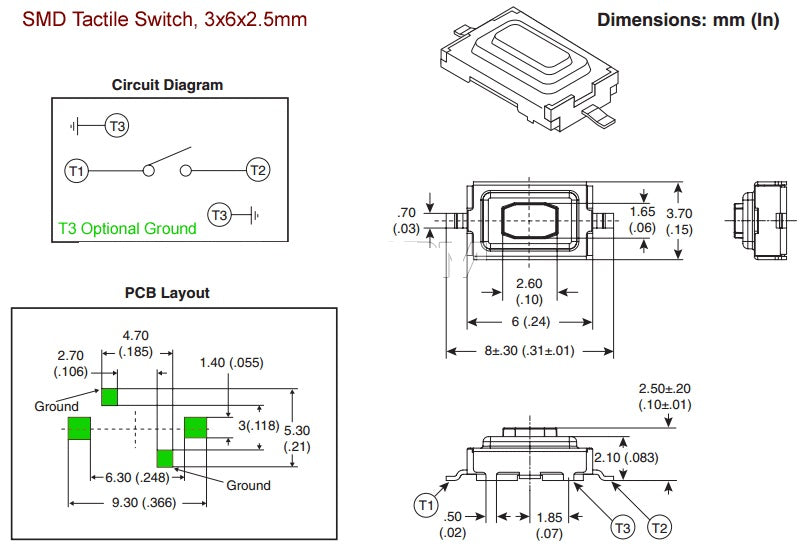

- Dimensions: 3 x 6 x 2.5mm (L x W x H)

- Material: Plastic, Metal, Electric Parts

- Color: Black, White

- Rated Load: 12V @ 50mA

Electrical Specifications:

- 50,000 cycles

- Rated Load: 12V @ 50mA

- Contact Resistance: 100mΩ max

- Insulation Resistance: 100MΩ min., at 500 VDC

- Dielectric Strength: 250 VAC / 1 minute

Mechanical Specifications:

- Operating Force: 160±50gf Brown (N)

- Travel: 0.25+0.2/-0.1mm

- Operating Temperature Range: -25°C to +70°C

- Storage Temperature Range: -30°C to +80°C

- Contact Arrangement: 1 Pole - 1 Throw
