MLX90614 - Infrared Thermometer - (AD31187)

Description:

The Melexis MLX90614ESF-BAA is an infrared thermometer designed for non-contact temperature detection. An internal 17-bit ADC and a powerful DSP contribute to the MLX90614's high accuracy and resolution. It has a wide range of applications, including body temperature measurement and motion detection.

The MLX90614 provides two output methods: PWM and SMBus (i.e., TWI, I2C). The 10-bit PWM output provides a resolution of 0.14°C, while the TWI interface has a resolution of 0.02°C. The MLX90614 is factory calibrated over wide temperature ranges: -40 to 85°C for ambient temperature and -70 to 382.2°C for object temperature. The measured value is the average temperature of all objects in the sensor’s field of view. The MLX90614 offers a standard accuracy of 0.5°C around ambient temperature.

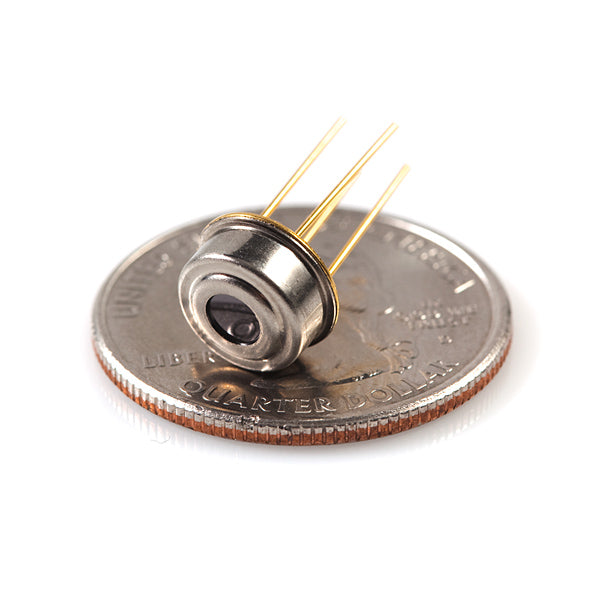

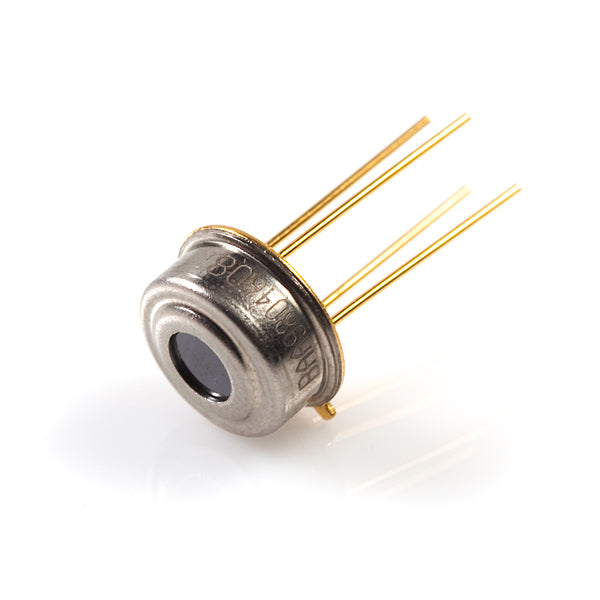

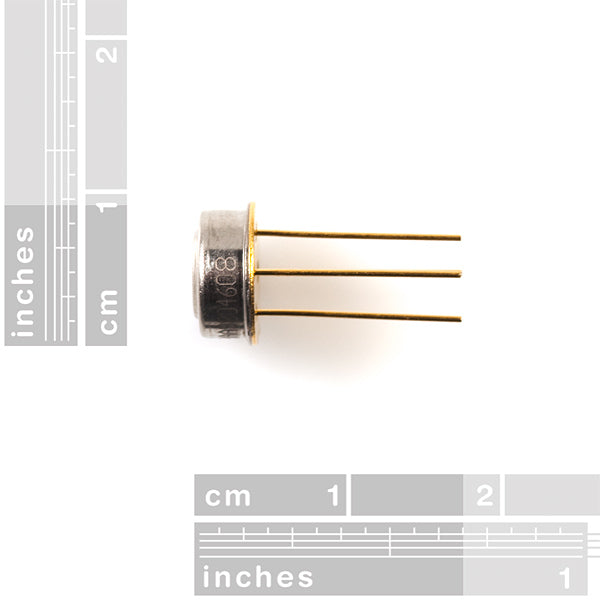

This device comes in an industry standard TO-39 package. This is the 3V version of this sensor .

Characteristics:

• Small size, low cost
• Easy integration
• Factory calibration over a wide temperature range:
• -40 to +85 °C for sensor temperature
• -70 to +380 °C for object temperature
• SMBus compatible digital interface
• Customizable PWM output for continuous reading
• High accuracy of 0.5°C over a wide temperature range (0 to +50°C for Ta and To)
• Measurement resolution of 0.02 °C
• Single and dual zone versions
• Easy adaptation for 8 to 16 V applications
• Power saving mode
• Different packaging options for applications and measurement versatility
• Automotive application

Documents:

• Hookup Guide
• Datasheet
• MLX90614 Product Information
• bildr blog - MLX90614
• GitHub (Library)
