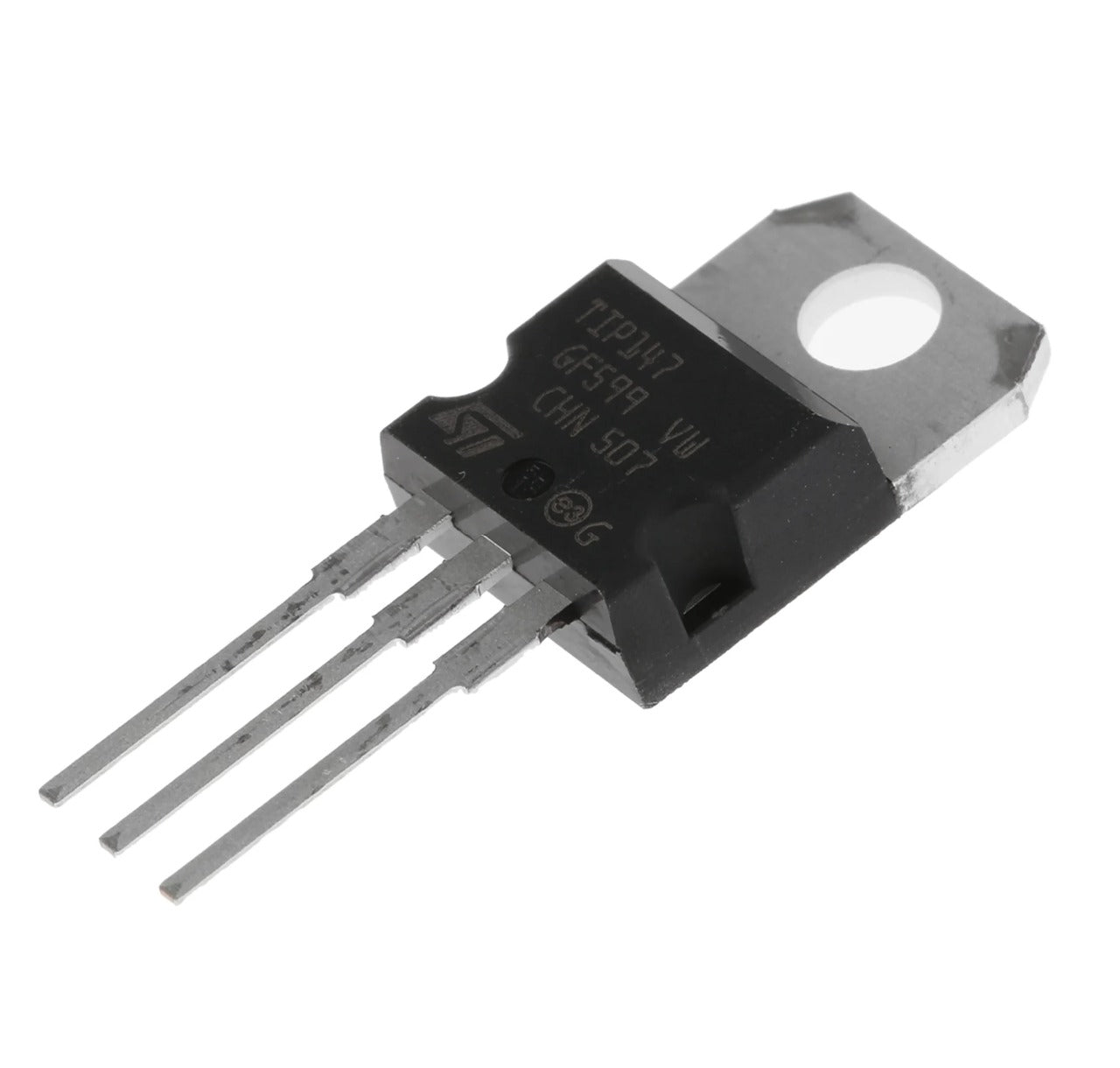

TIP147T PNP Darlington Transistor -100V @ -10A TO-220 - (AD3103)

Description:

The TIP145, TIP146, and TIP147 are epitaxial-based PNP power silicon transistors in a monolithic Darlington configuration, mounted in a TO-220 plastic package, intended for use in linear and power switching applications. The complementary NPN types are TIP140, TIP141, and TIP142, respectively.

Characteristics:

- Monolithic construction with Base-Emitter shunt resistors

- High DC current gain, hFE = 1000 @ VCE = -4V, IC = -5A (Min.)

- Industrial use

- Complement to TIP140, 141, 142

Data sheet
