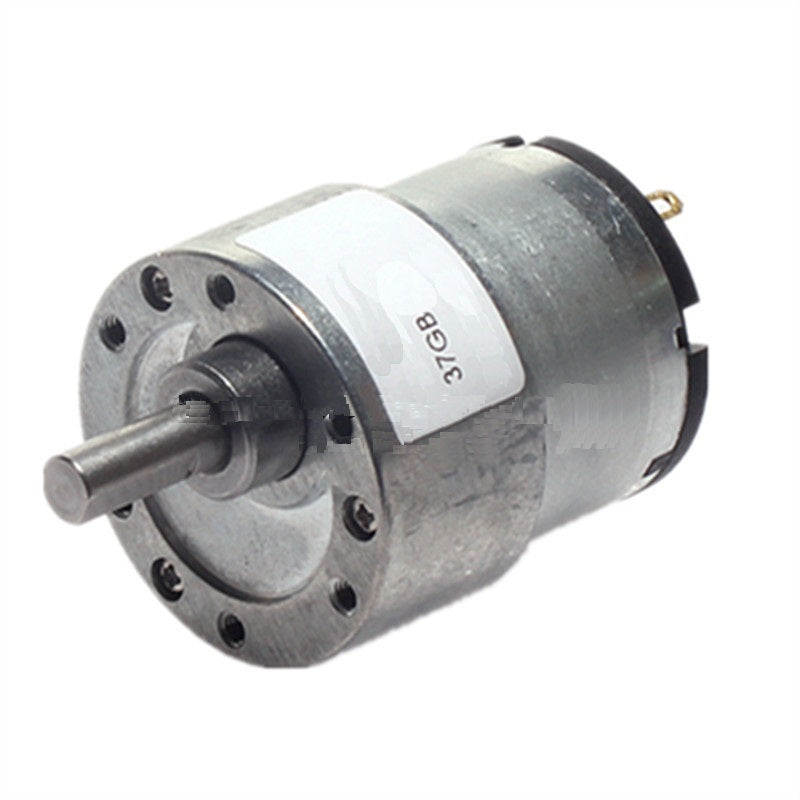

JGB37-3530 24VDC 319RPM Gear Motor - (AD30627)

Description:

These standard gear motors are incredibly durable and feature all-metal gears to help you control wheels, gears, or almost anything else you need to rotate. They have an 18.8:1 gear ratio and operate up to 24 volts, plus they have a maximum speed of 319 RPM. Each standard gear motor has a 6mm diameter D-shaft.

Features:

- Voltage: 12 - 30 Volts

- Gearbox ratio: 18.8:1

- Max torque: 2.1 Kg-cm @ 24V

- Speed: 319RPM @ 24V

- Max current: 0.9A @ 24V

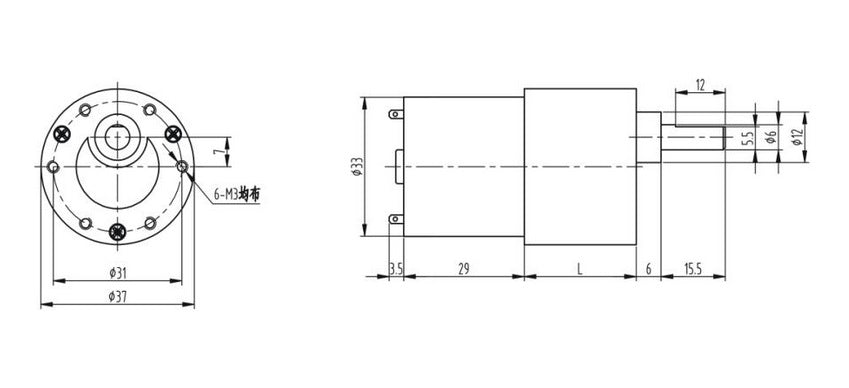

- Shaft size: 6mm Diameter x 15mm Length

- Motor size: 35mm Diameter x 50mm Length

- Gear Motor Model: JGB37-3530 (DC: 24V, 319RPM)
