DDC-331 Automation Delay Timer 12VDC - (AD30553)

Description:

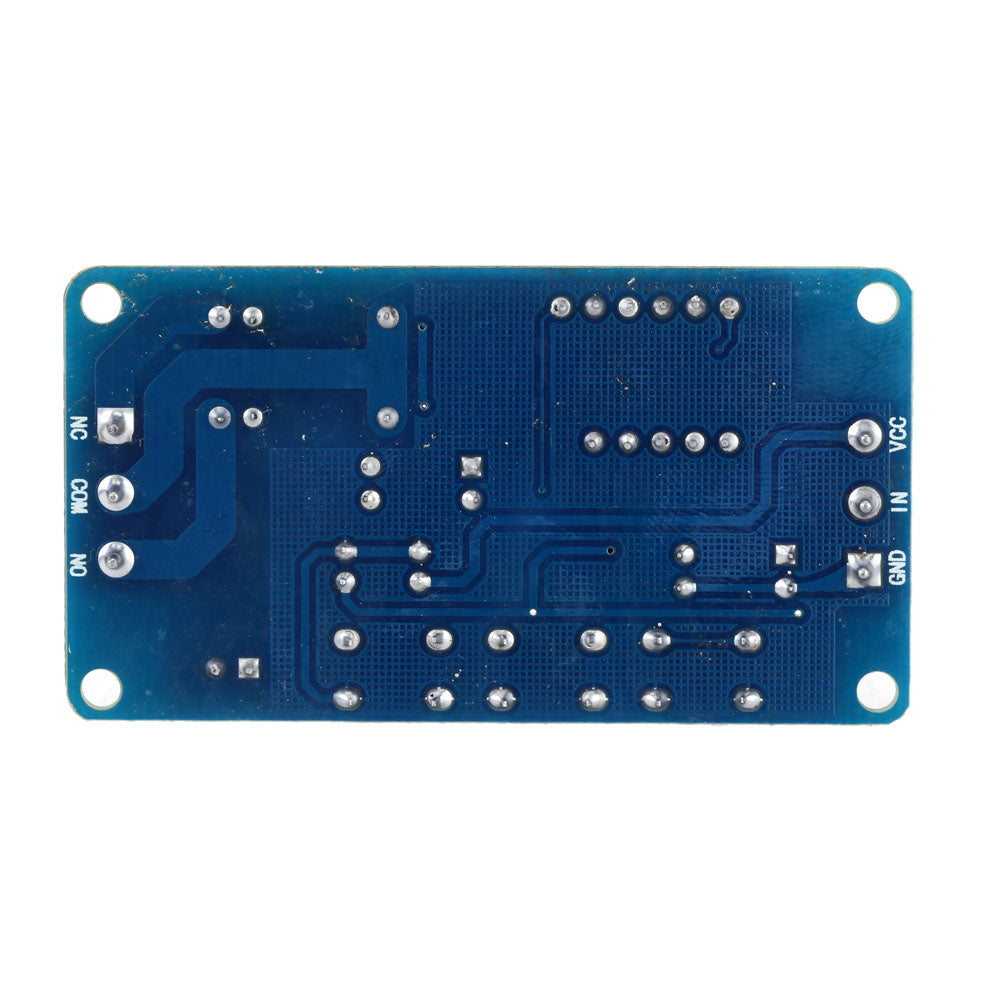

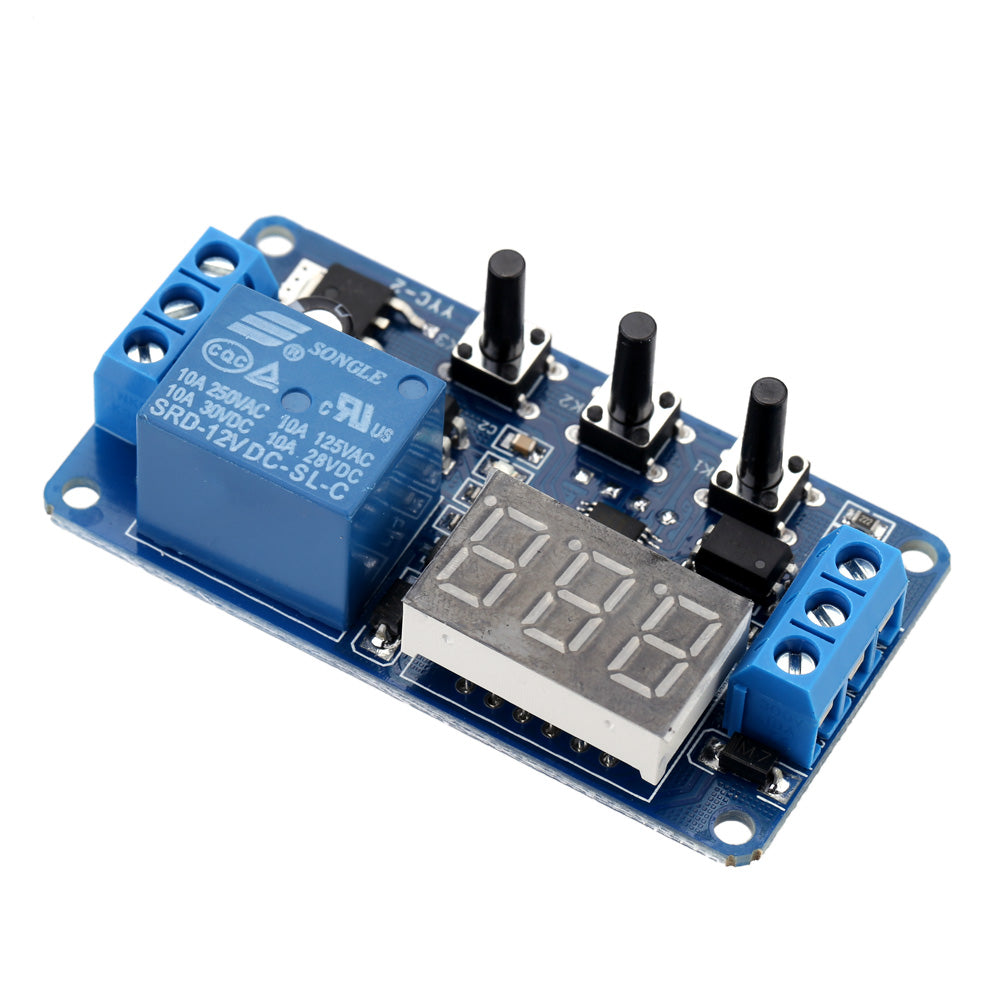

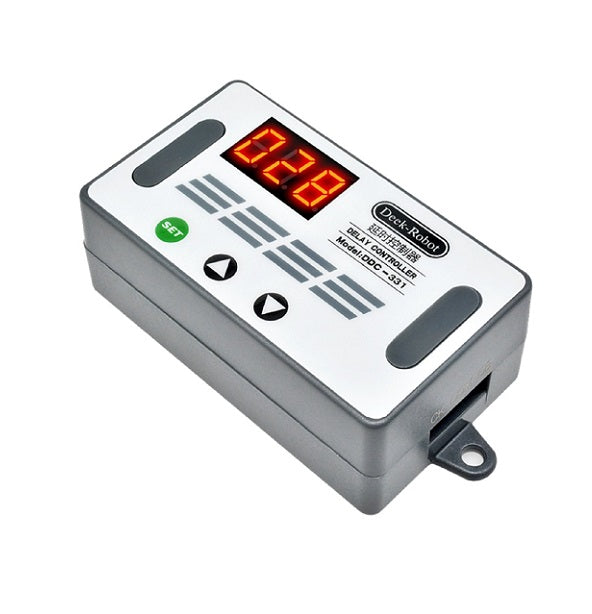

New 12Vdc automation timer module with relay switch and high-quality plastic case. It simplifies what the user needs, uses an optocoupler to isolate the input from the output. Configuration parameters can be stored after power-off. The voltage terminal signal can be maintained for a long time. The relay output is a passive contact with no load, and it controls the line in its ON-OFF state.

Working mode selection:

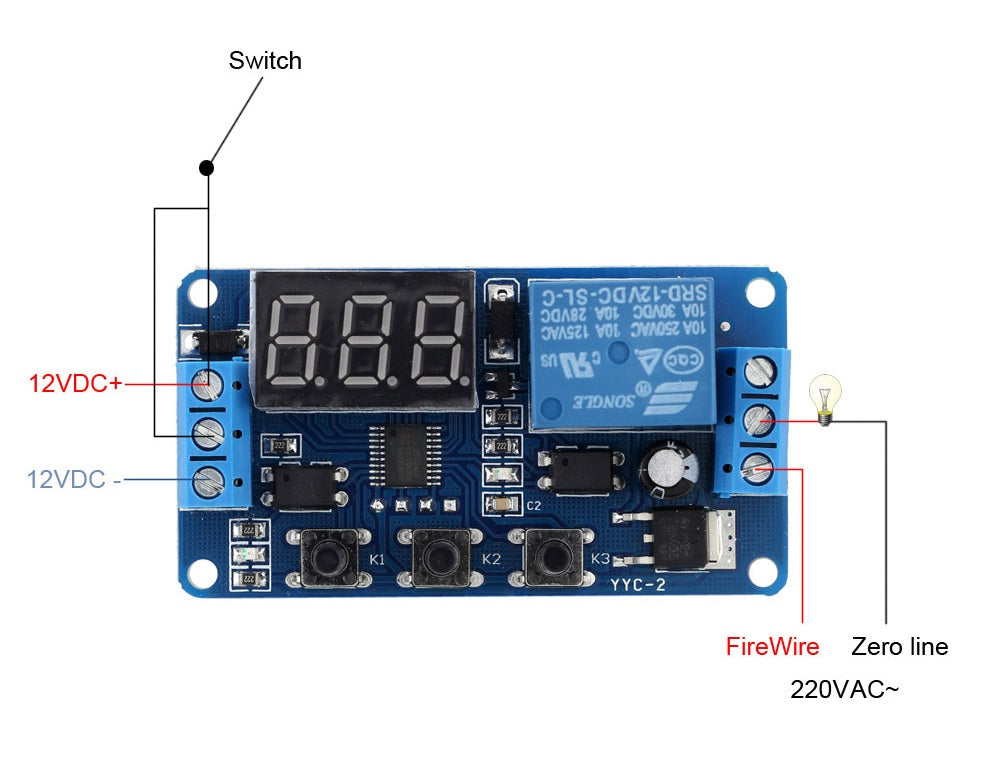

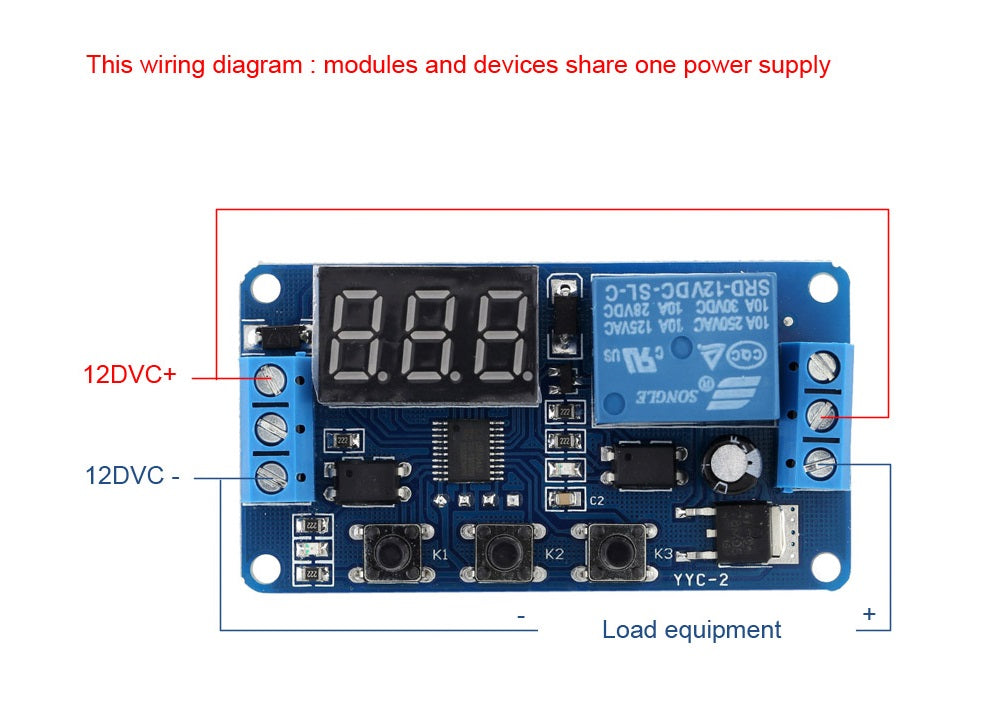

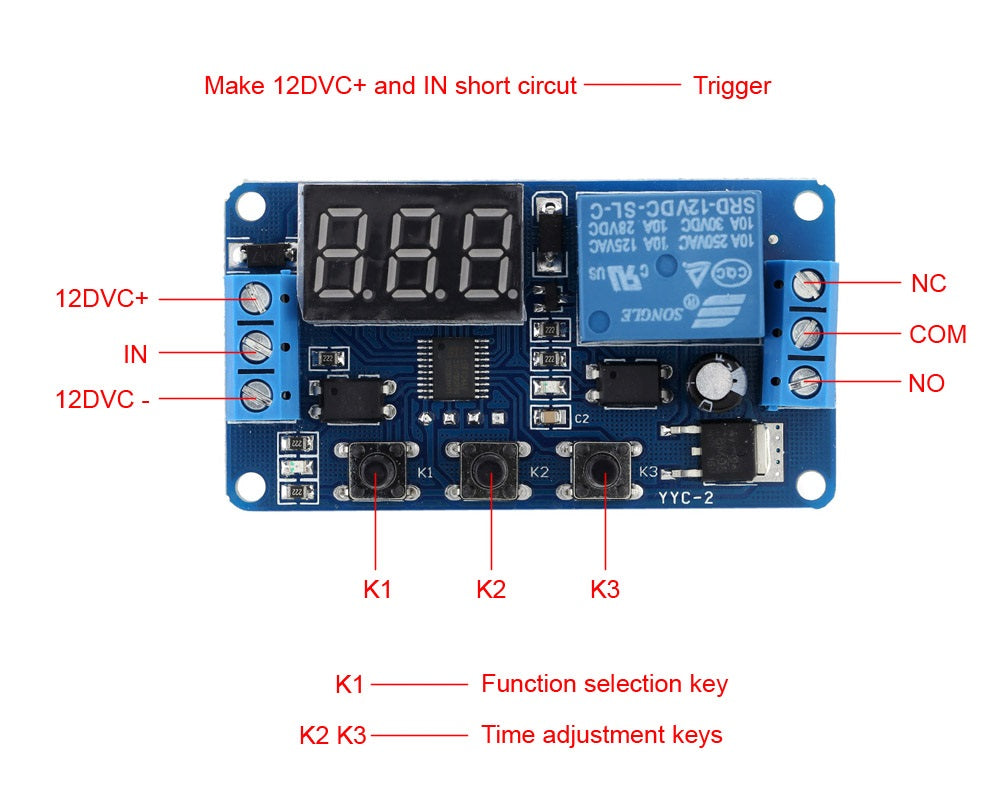

1. After powering on, press and hold K1 for 2 seconds, then select the mode (P1 to P4), press K2 to enter the mode.

    a. P-1: Monostable trigger delay: a signal to trigger the relay, timing starts, then the relay disconnects.

    b. P-2: A trigger signal and the negative count begins, T1 seconds later the relay activates, T2 seconds later the relay disconnects.

    c. P-3: The relay activates for T1 seconds, then disconnects for T2 seconds, in an infinite cycle. Users can set T1 and T2 times.

   d. P-4: The relay activates when the trigger signal turns ON, when the trigger signal turns OFF the digital countdown begins, and the relay deactivates when T1 reaches 0.

Specifications:

- Time range: (adjustable): 0.1~99.9 seconds; 1~999 seconds; 1~999 minutes

- Working voltage: DC 12V

- Voltage signal: DC 4~20V

- Output capacity: Can control load with DC30V @ 5A / AC220V @ 5A

- Static current: 20mA

- Working current: 50mA

- Working temperature: -40 to 85°C

- PCB size: 64 * 35 * 18mm (L * W * H)

- Case size: 68 * 40 * 22mm (L * W * H)

- Product weight (with Case): 42g / 1.49oz

Package includes:

- 1x Timer module + Plastic Case
