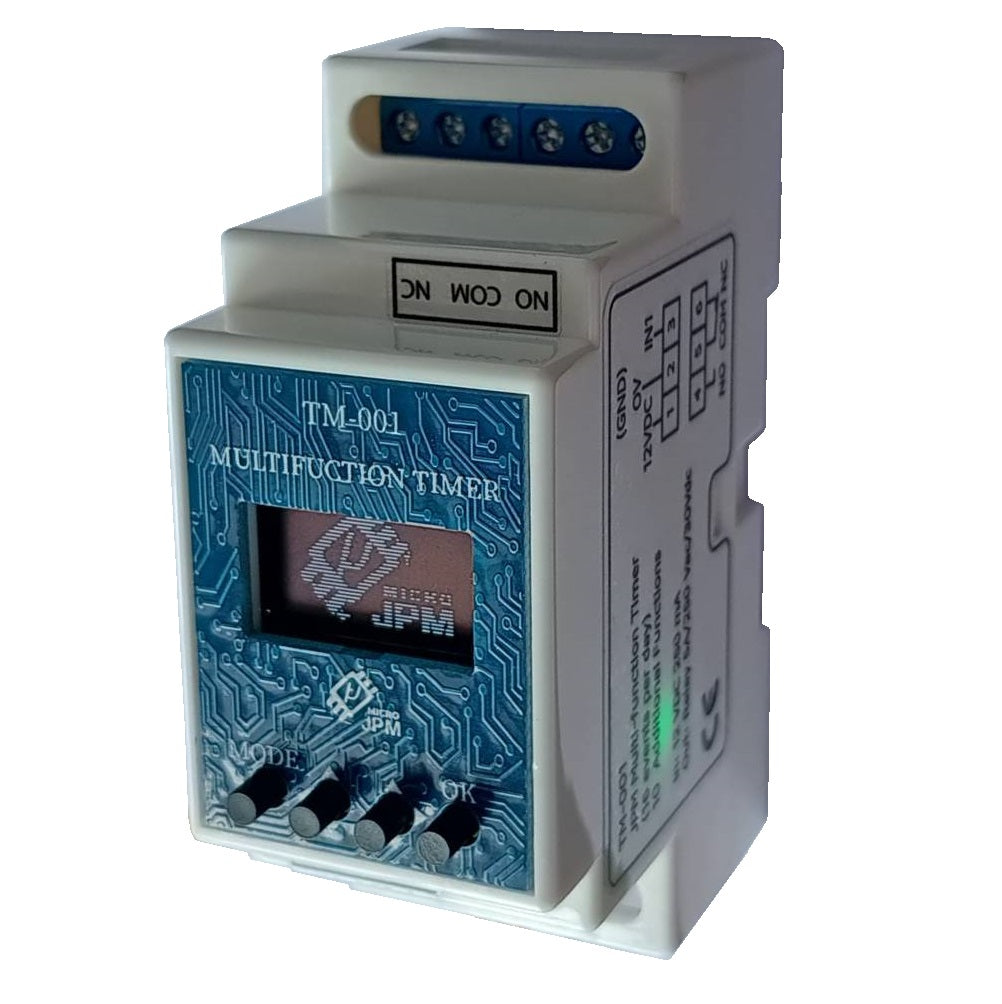

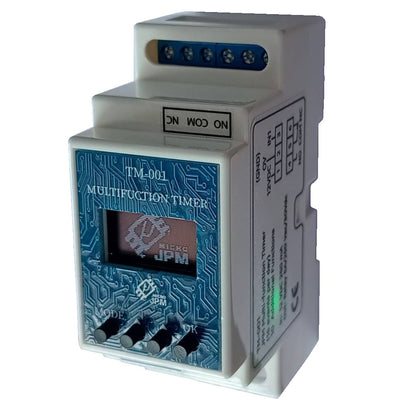

TM-001 JPM Multi-Function Timer - (AD30552)

Description:

This TM-001 timer can be configured as a weekly timer and allows for programming up to 16 events or actions per day. You can set the time in hours, minutes, and seconds.

In addition, it features 10 additional timing functions, all in a single timer, allowing the user to select the option that best suits each moment. It features a high-quality, high-contrast 0.96’’ OLED screen, ideal for viewing each scheduled event.

Features:

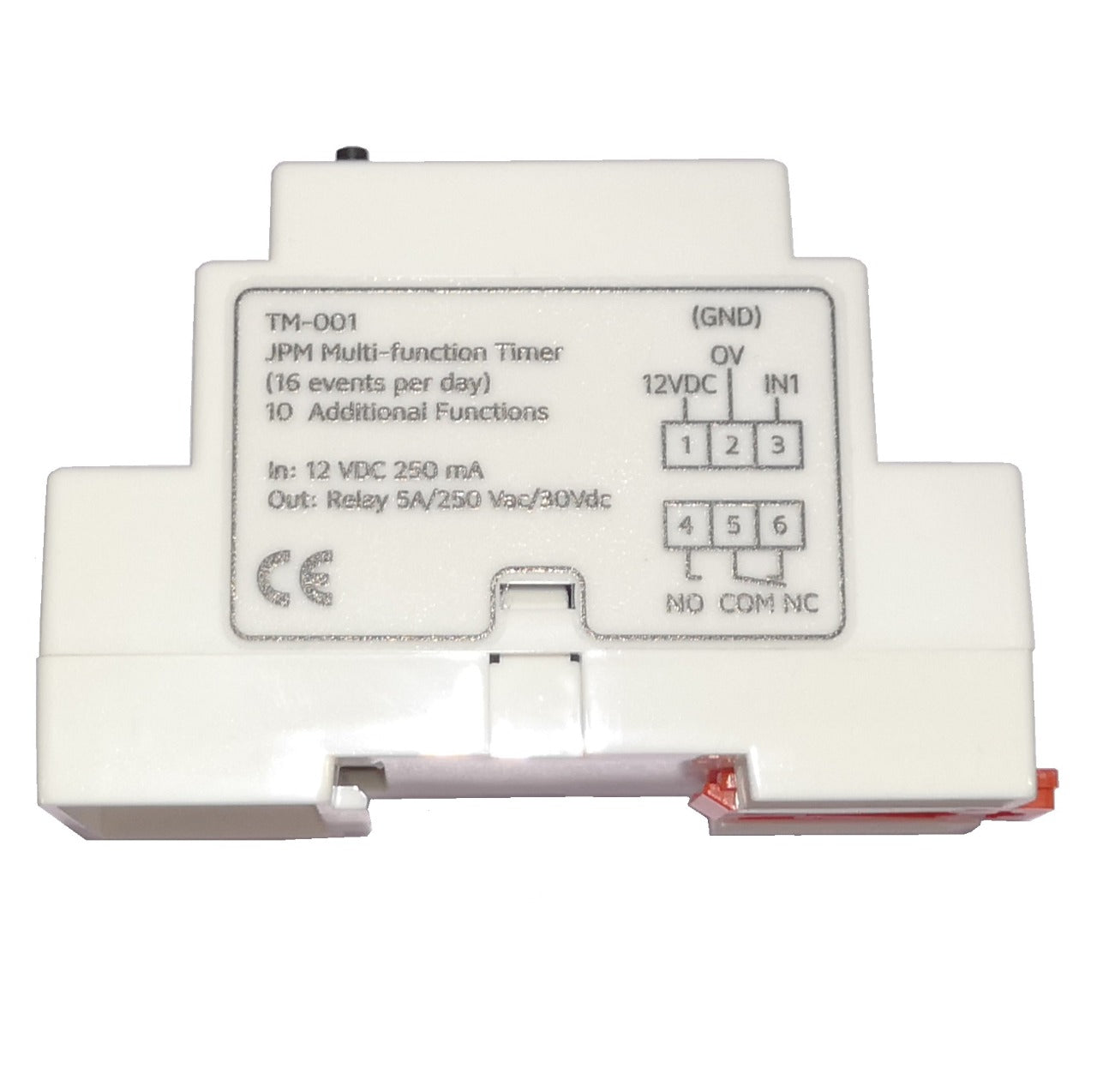

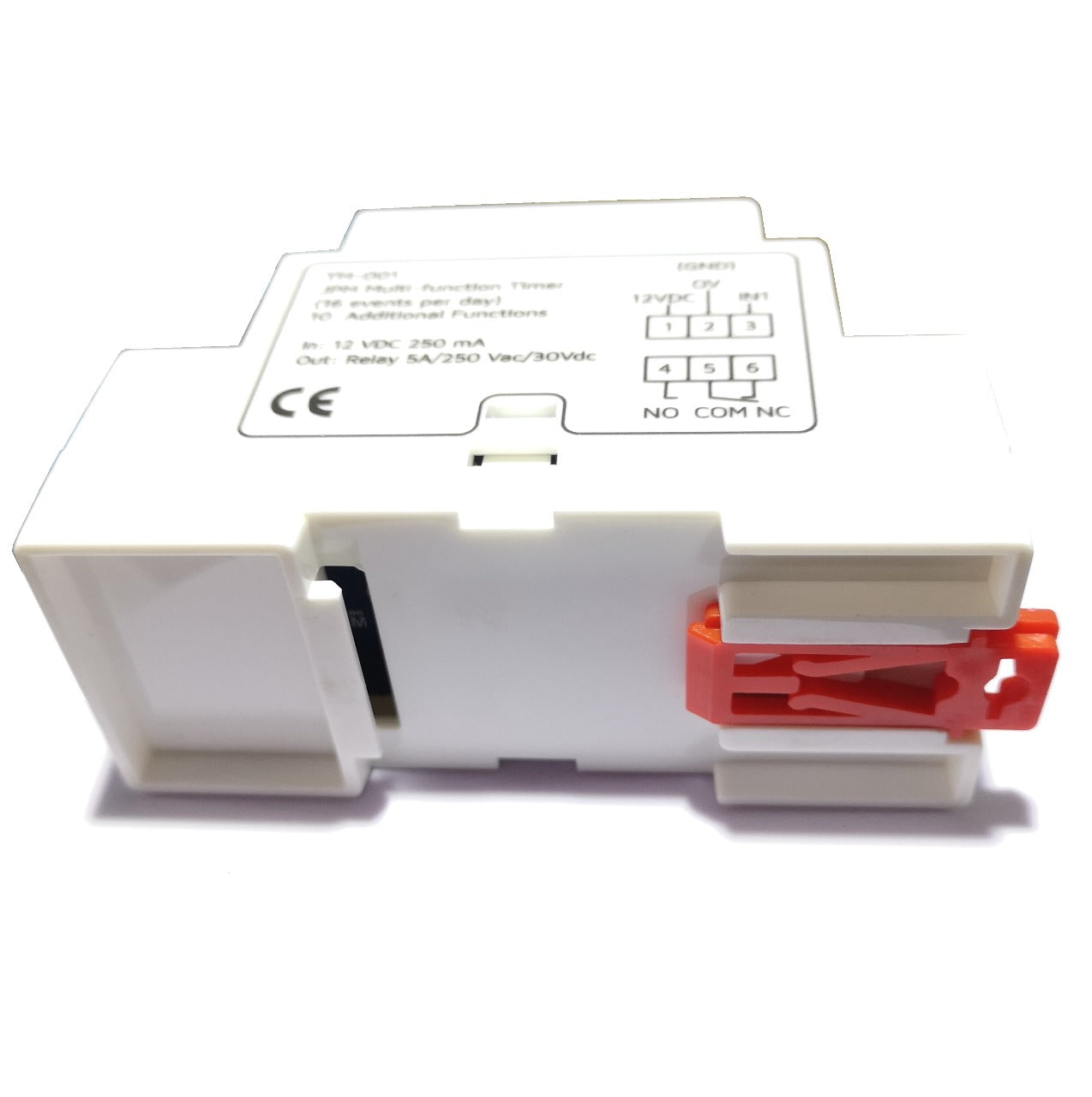

- Suitable for DIN rail mounting.

- SPDT version.

- Power supply: 250mA, 12 VDC (maximum 16 VDC).

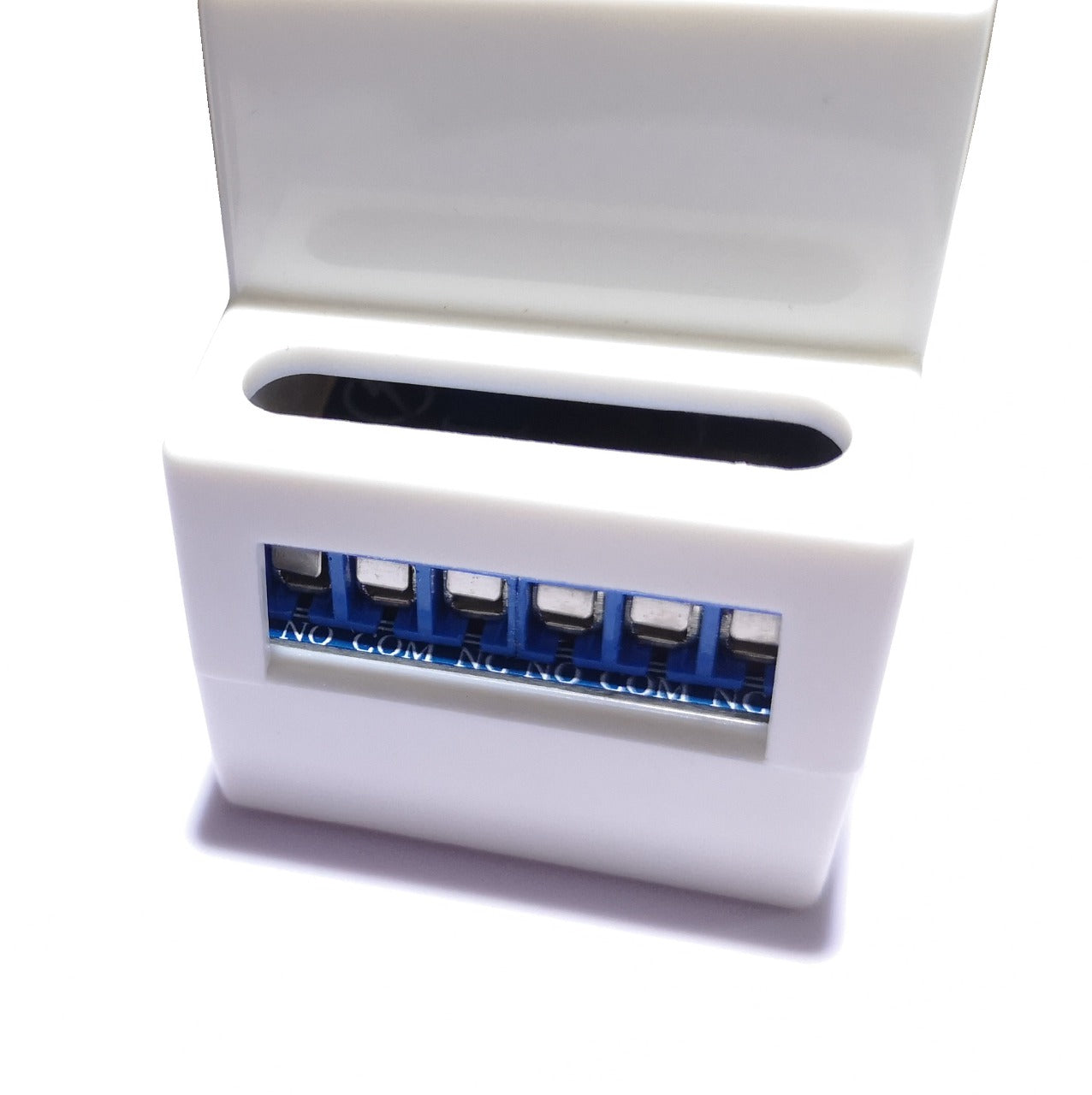

- Output contact: SPDT, 5A @ 250 VAC, 5A @ 30 VDC.

- Contains a digital menu with non-volatile memory, which means that all data entered by the user will be stored in memory, ensuring that the information will not be lost if the timer is de-energized.

- The processor of this timer cyclically checks the last event of the day, in case an event occurs at a time when the timer was de-energized or turned off. This feature ensures that this timer does not miss any events.

Functions:

- Weekly Timer function that allows for programming up to 16 events or actions per day.

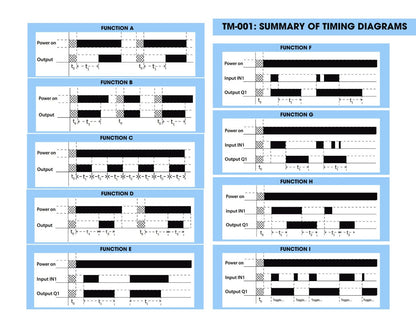

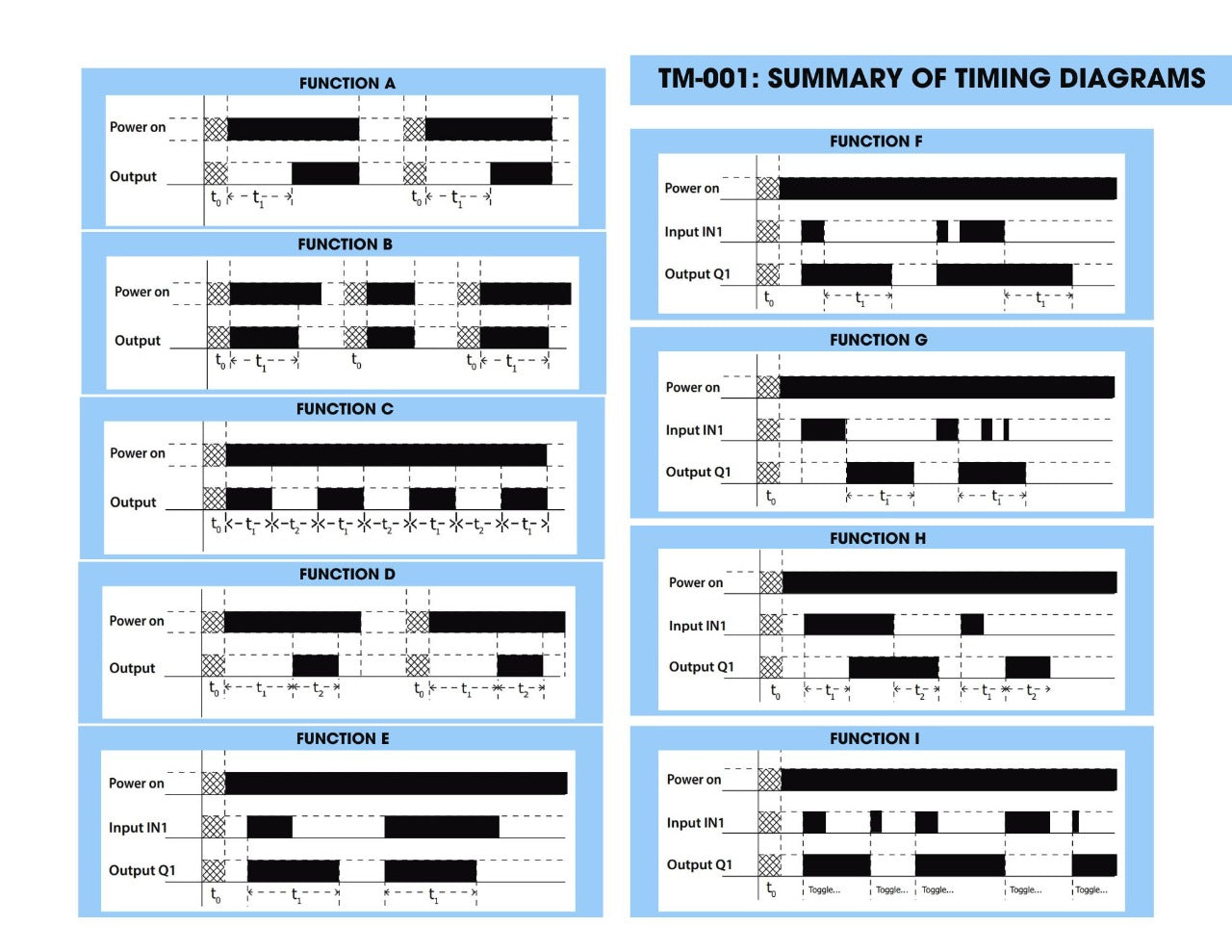

- Functions A, B, C, and D start automatically when the timer is powered with 12VDC; they do not require any external signal to start.

- Functions E, F, G, H, I, and J require an external pulse from input IN1 to start the countdown and/or generate a change in output Q1.

- Function J is a pulse counter; the maximum sampling frequency of this counter is 60 Hz. Each count is triggered when there is a LOW to HIGH transition on input IN1. This function has several parameters to configure, including: Frequency, Set Point, Count Type, Reset Type, Output State.
