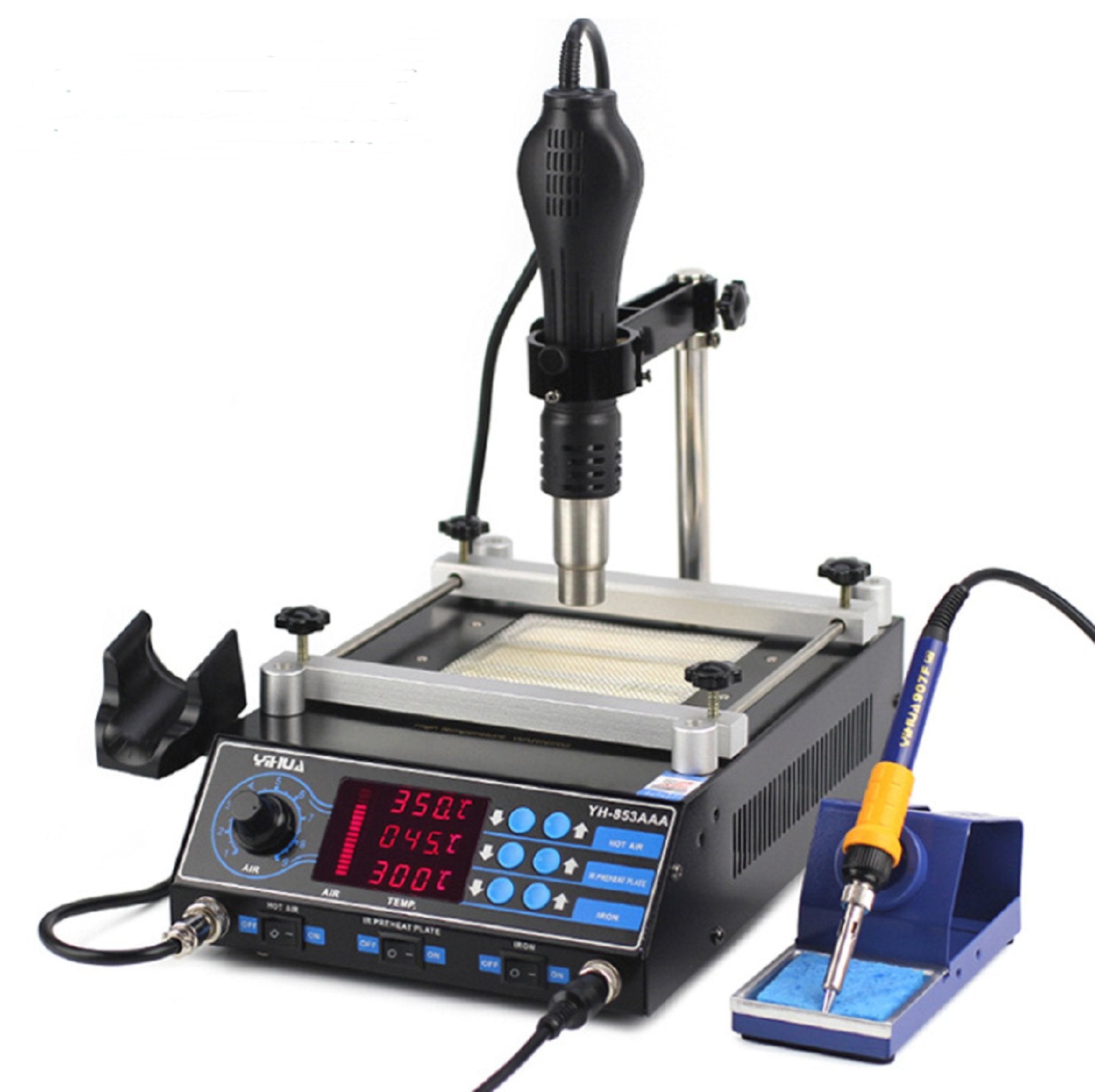

853AAA YIHUA 1350W BGA Rework Station - (AD30502)

Description:

Professional-grade BGA rework station designed for precision soldering and PCB preheating. The YIHUA 853AAA offers 1350W of power with a dual heating system: integrated hot air gun and soldering iron for comprehensive work on circuit boards. It incorporates a preheating station to ensure optimal solder flow and reduce thermal stress on components. Ideal for electronics repair technicians, hobbyists, and production environments requiring reliable rework equipment. Combines efficiency and durability for demanding soldering applications.

Features an LED digital display for precise temperature control and three integrated heating systems: preheating station (50-400°C, 120 × 120 mm heating area), brushless motor hot air gun (100-480°C, 120 L/min airflow), and soldering iron (200-480°C).

Features:

• Power: 1350 W (max.)
• Display: LED digital display
• Temperature stability: Good
• Preheating station:
  • Temperature control range: 50-400 °C
  • Heating area: 120 x 120 mm
• Hot air gun:
  • Air supply: Brushless motor fan
  • Airflow: 120 L/min (max.)
  • Temperature control range: 100-480 °C
• Soldering iron:
  • Temperature control range: 200-480 °C

User manual
