LED Cube Yellow DIY Kit 8x8x8 - (AD30342)

Description:

This is an 8x8x8 LED Cube, its function is to sequentially light up the LEDs in small rows, controlled by a microcontroller, an STC12C5A60S2 with built-in code, using 8 digital pins (P00 - P07) and 8 more pins to control 8 74LS573 shift registers.

It is used to demonstrate LED operation, for entertainment, or advertising. It is used with the help of the microcontroller, connecting 8 of its digital pins and 8 more to control the shift registers and then the LEDs.

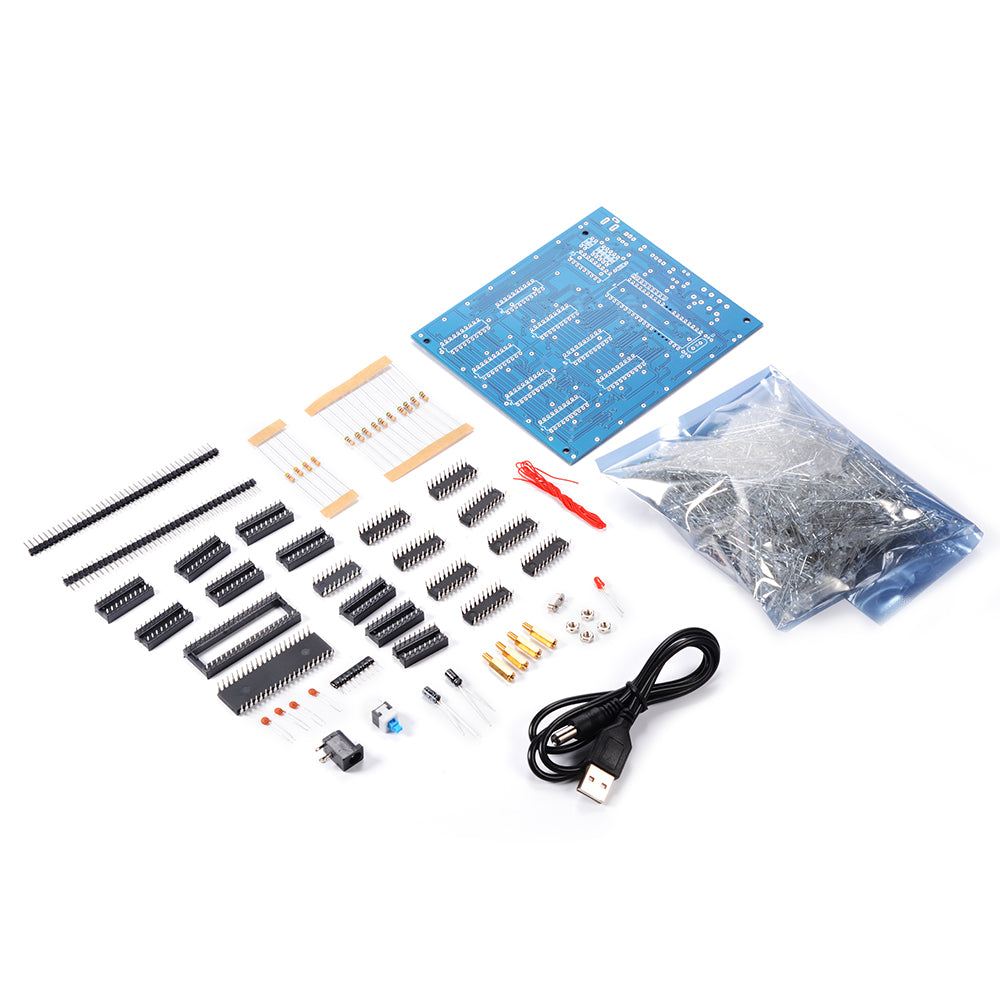

The Kit includes:

- 512 x YELLOW 3mm LED

- 2 x XH2.54 - 40Pin round female

- 9 x 20P IC socket (integrated base)

- 9 x 74HC573 DIP

- 1 x USB to DC005 power cable

- 1 x DC005 power socket

- 1 x 18P IC socket

- 1 x ULN2803 DIP

- 1 x 40P IC socket

- 1 x STC12C5A60S2 (programmed)

- 1x A09-103 Resistors

- 1 x 8*8 Self-locking switch

- 2 x 10uF 25V electrolytic capacitor

- 1 x 12MHz crystal

- 2x 22pF ceramic capacitor

- 8 x 470ohm resistor

- 2 x 4.7K ohm resistor

- 1 x 3mm LED

- 1 x 0.8mm cable
