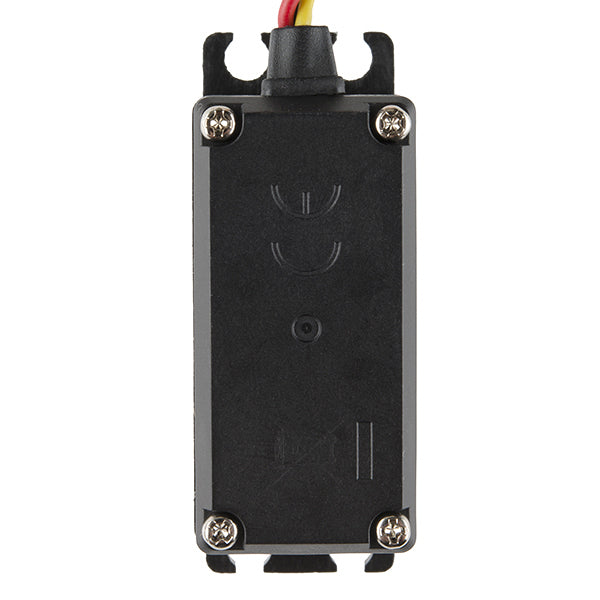

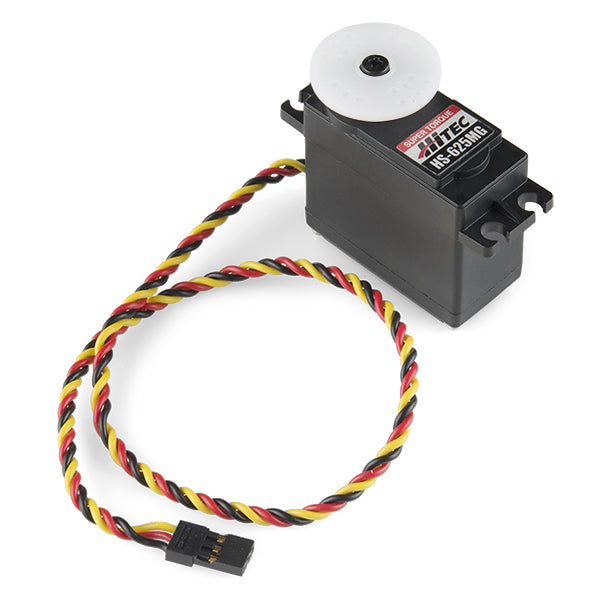

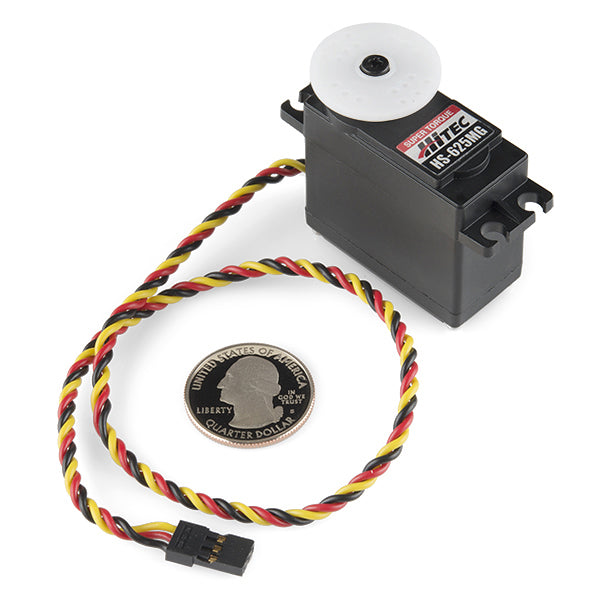

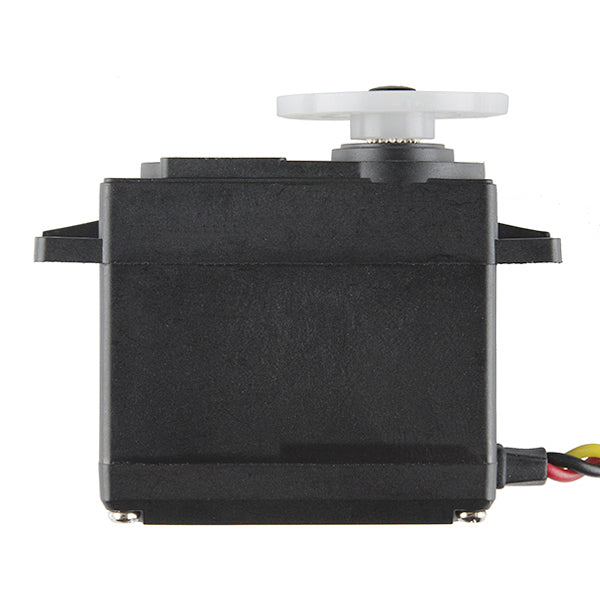

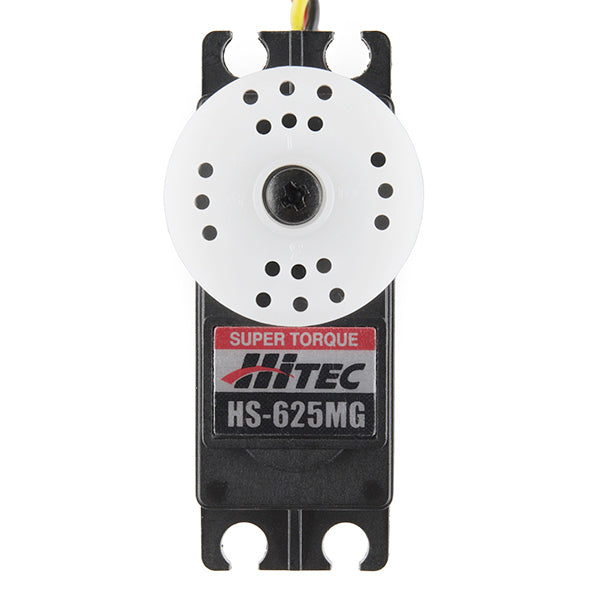

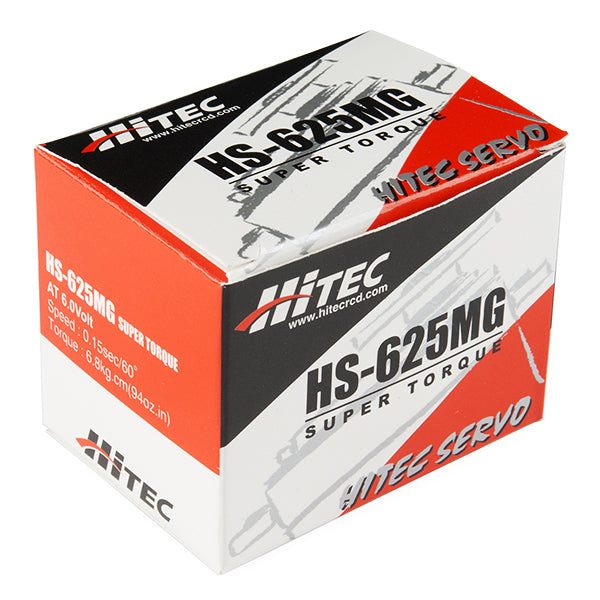

Servo - Hitec HS-625MG (Standard Size) [ROB-11885] - (AD29688)

Description:

This powerful motor is the Hitec HS-625MG servo. It is one of the most powerful metal gear servos on the market and comes at an excellent price. The HS-625MG can take 6 volts and put out 94 oz-in of max torque at 0.15 sec/60° – numbers you can rely on!

This high quality servo is perfect for your mechatronic needs and, if you are looking to get into robotics, this is the place to start. The HS-625MG servo comes standard with a 3-pin gold plated power and control cable and all the hardware listed below.

Includes:

• 1x HS-625MG Servo

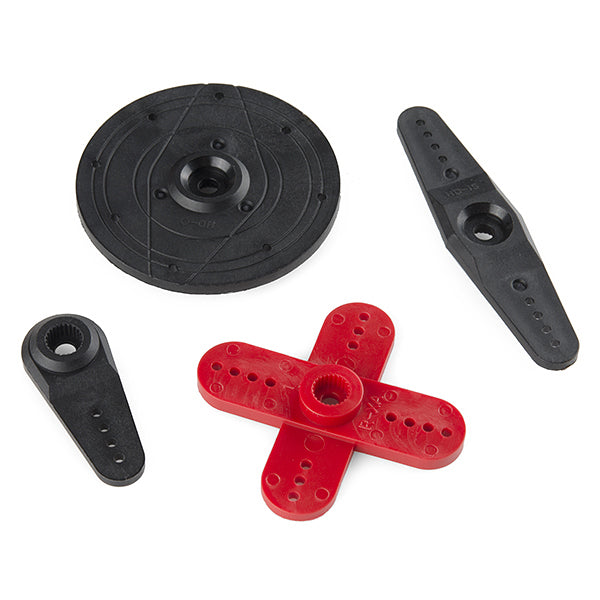

• 1x Double Arm Horn
• 1x Single Arm Horn
• 1x Four Point Horn
• 2x Circular Horns (1 small white, 1 large black)

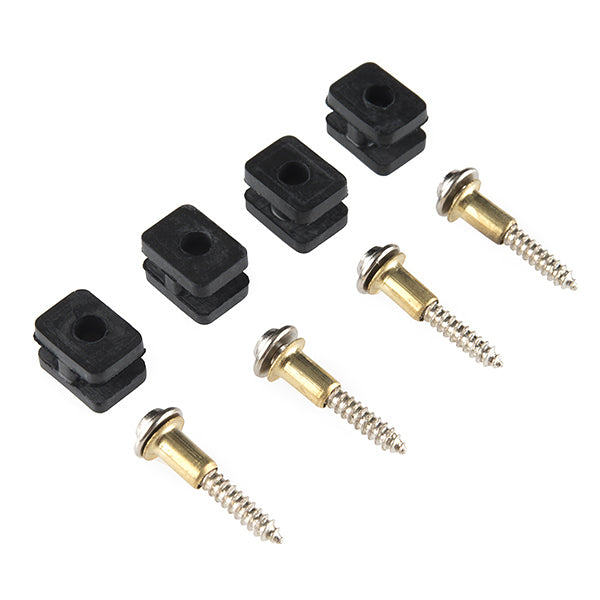

• 4x Rubber Grommets
• 4x 15mm Phillips Head Screws
• 4x Brass Eyelets

Features:

• Voltage: 4.8-6.0 Volts
• Torque: 76.37/94.43 oz-in (4.8/6.0 V)
• Speed: 0.18/0.15 sec/60° (4.8/6.0 V)
• Direction: Clockwise/Travel by Pulse: 1500-1900 µs
• Rotation: 180°
• Dual Ball Bearing
• 3 Metal Gears & 1 Resin Metal Gear
• 3 Pole Ferrite Motor
• Standard C1 Splines*: 40.6 x 19.8 x 36.6mm
• Wire Length: 300mm
• Weight: 55.2g

Documents:

• Datasheet
