[8 x 8mm] Latching Mini Tactile Push Button Switch DPDT - (AD29618)

Description:

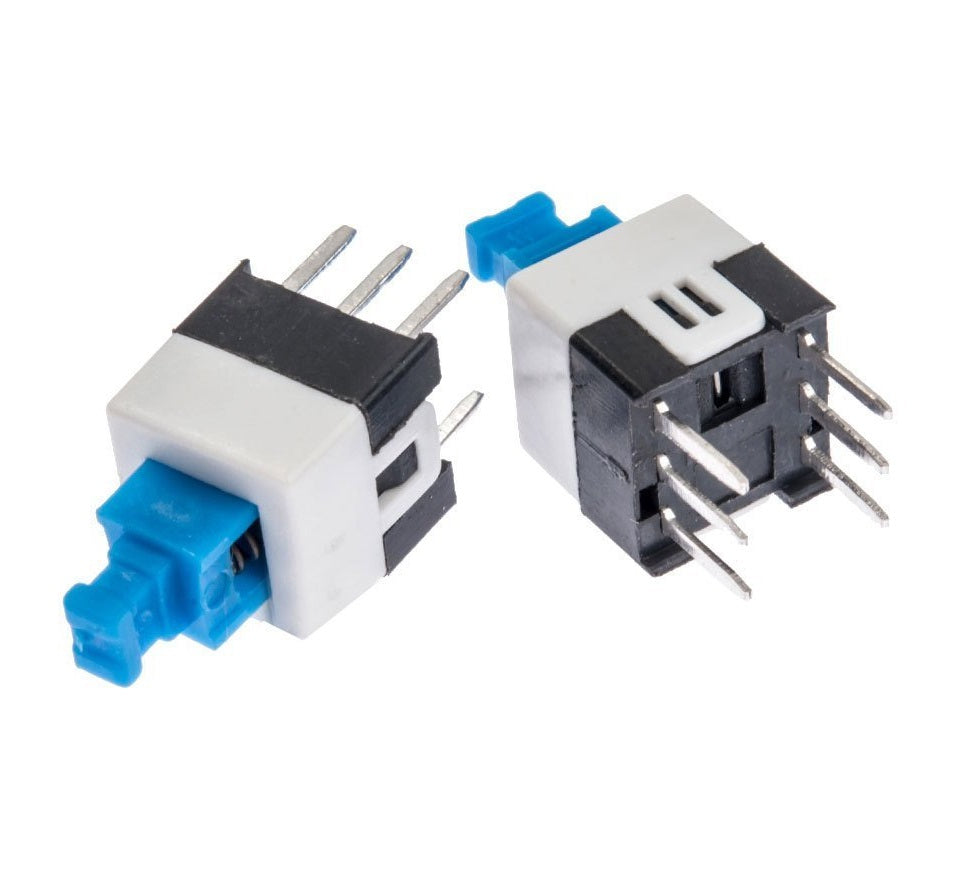

This is a perfect option if you need an on/off button! These plastic buttons are small, very sturdy pcb mount latching switches. It's a DPDT with 6 pins spaced at 2.54mm, meaning it's breadboard compatible. This button is perfect for basic on/off functions. These latching buttons support up to 0.5A and 250VAC. Sold individually!

Features:

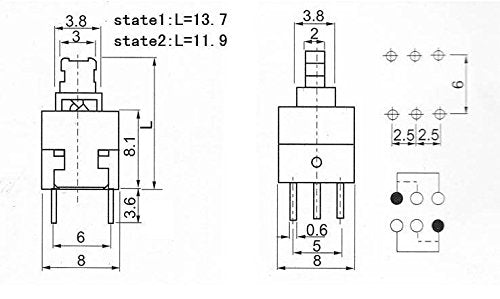

- Size: 8x8mm

- Operating temperature: -40°C to +70°C

- Average load: 250VAC/30VDC @ 0.5A

- Insulation resistance: 100 Mohm

- Contact resistance: 0.03 ohm

- ON state when pressed

- OFF state when pressed again

- Pin spacing: 2.54mm (breadboard compatible)

Datasheet
