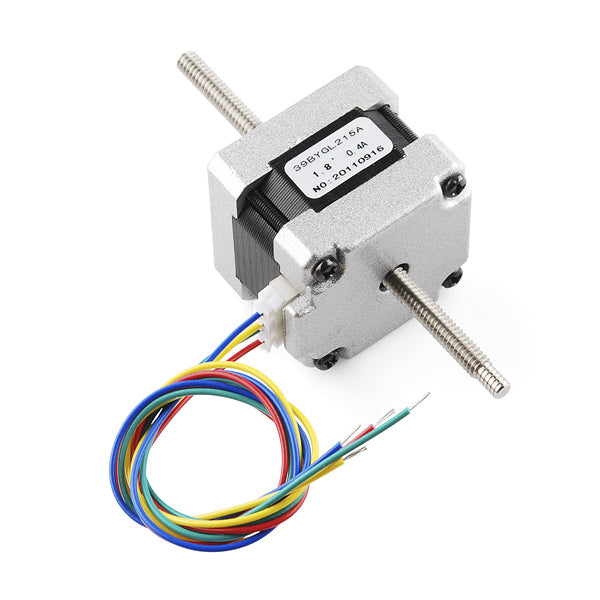

Stepper Motor - 29 oz.in (200 steps/rev, Threaded Shaft) [ROB-10848] - (AD29430)

Description:

These stepper motors feature a threaded shaft, allowing them to be used as linear actuators. When in operation, the motor travels along the shaft at a specific rate of 1cm for every 5 full rotations. These are a good choice for linear motion where precision and repeatability are important.

Note: The datasheet for this stepper motor appears to be inaccurate. When connecting this motor to a bipolar driver, you will need to wire it according to the wiring diagram found in the documents below.

Features:

• Step Distance: 0.01 mm
• Two Phase
• Rated Voltage: 12V
• Rated Current: 0.4 A/Phase

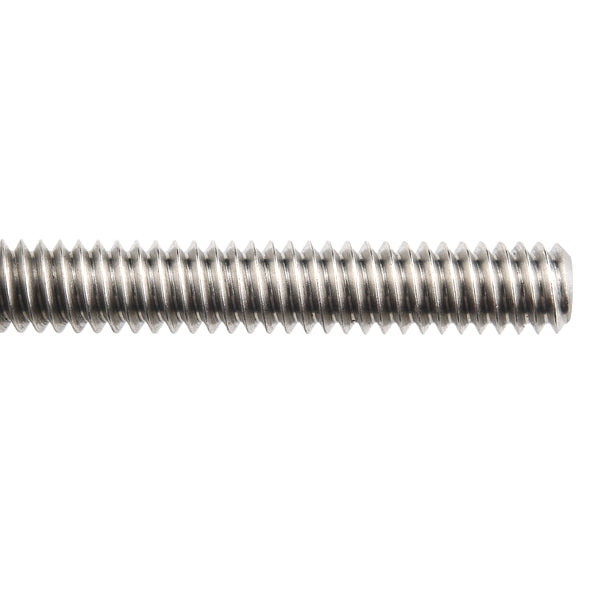

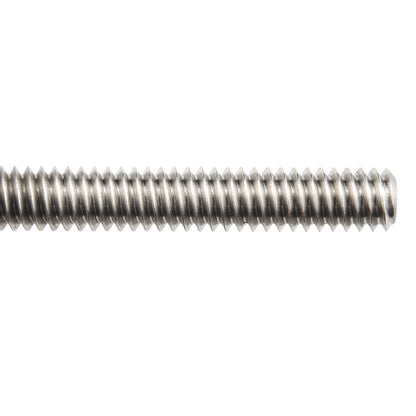

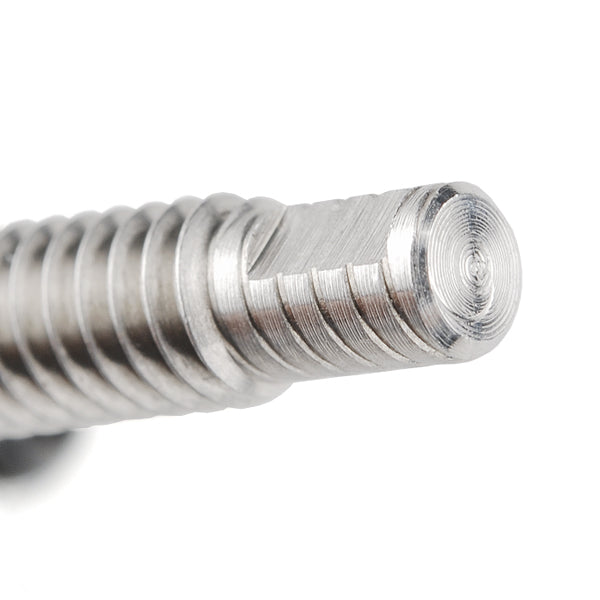

• 100mm Threaded Shaft (with keyway on one end)
• Holding Torque: 21 N·cm

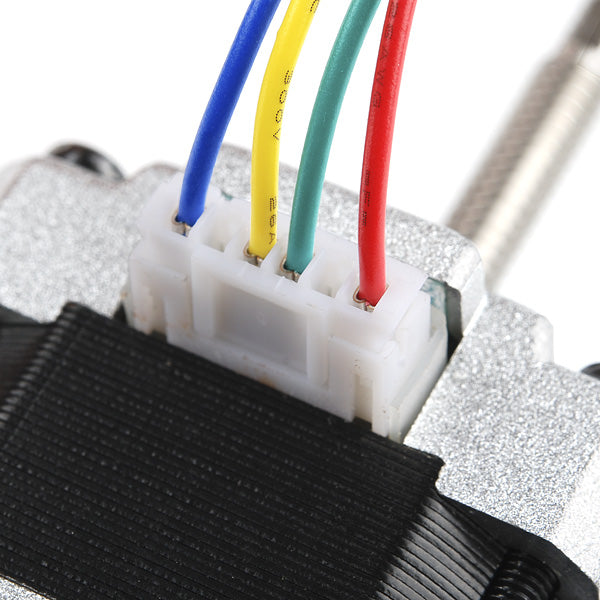

• 6-Pin Wire Harness Included
• NEMA 15

Documents:

• Datasheet
• Wiring Diagram
