VS1053 MP3 Shield - (AD27998)

Description:

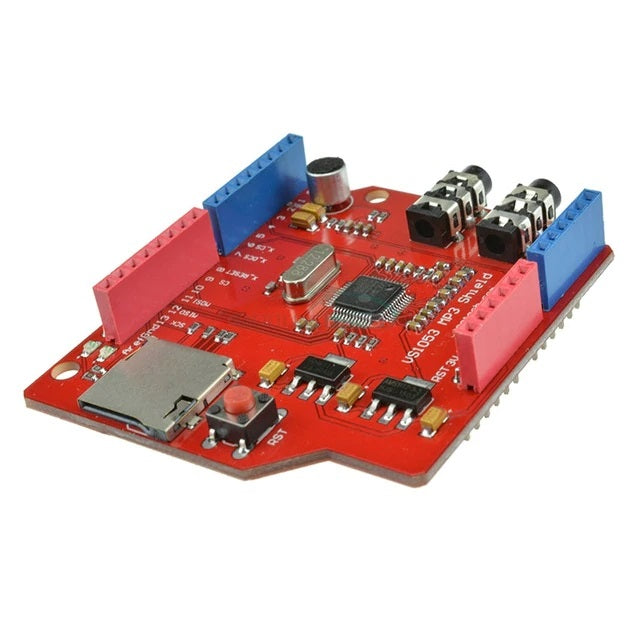

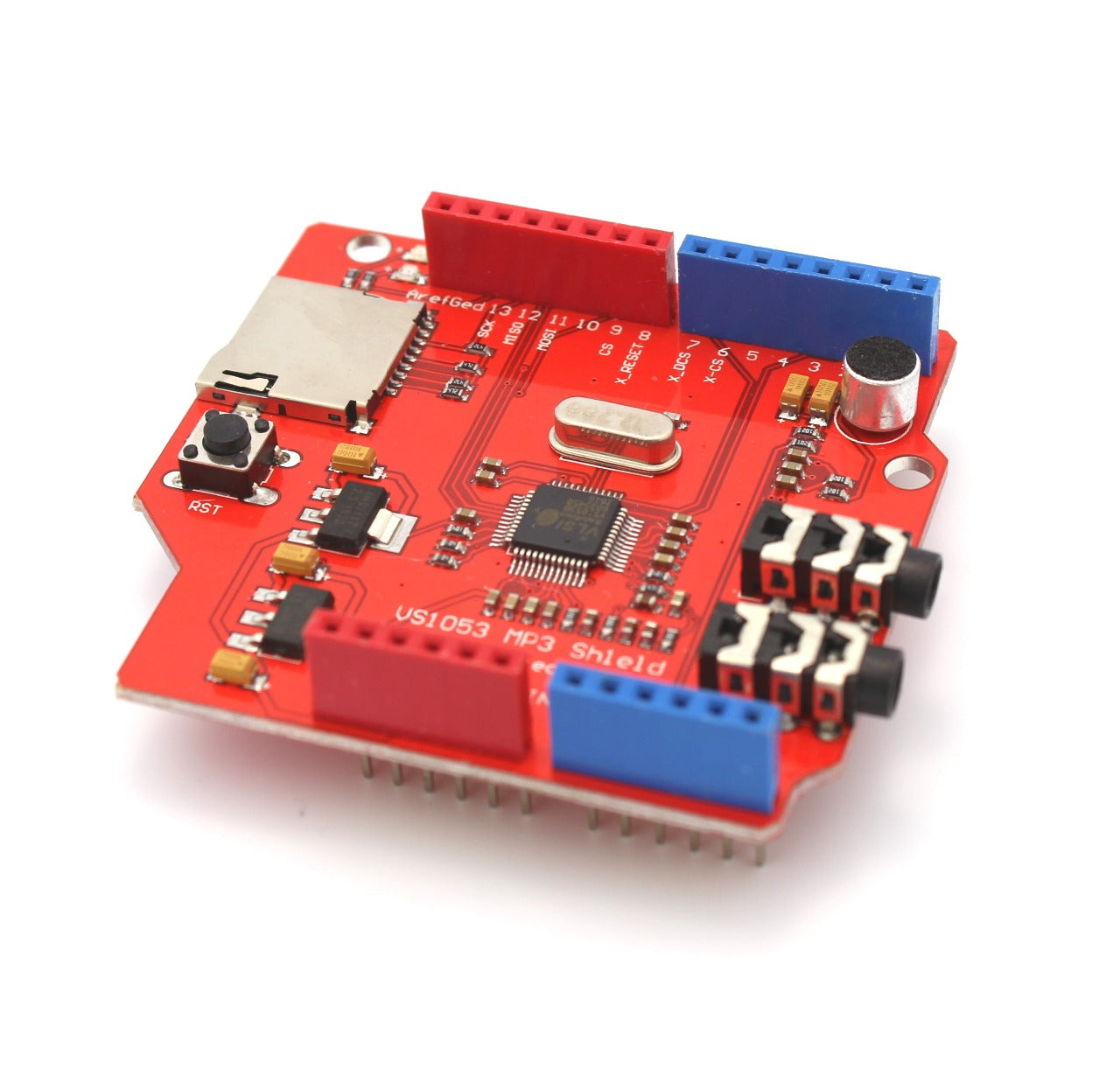

The VS1053 is an excellent MP3 decoder, capable of decoding Ogg Vorbis/MP3/AAC/WMA/MIDI audio and encoding user-loadable IMA ADPCM and Ogg Vorbis. It can drive 30-ohm headphones without additional power supply. This VS1053 MP3 Shield is designed based on VLSI's VS1053B. For the best headphone listening experience, the VS1053 includes EarSpeaker spatial processing that accurately simulates how a room would sound with stereo speakers. In addition to being able to decode all major formats, the VS1053 is capable of recording to Ogg Vobis files. With the SD card slot on the other side of the board, you can play MP3 files from the SD card using this shield. It's easy to integrate into your project or build an MP3 player using your Arduino.

Features:

- Can play a variety of music formats, supports real-time recording with OGG encoding

- SPI interface

- One headphone and stereo output

- One microphone for recording

- One input interface

- Power indicator

- 3.3 V and 2.8 V from the integrated AMS-1117 LDO chip, provides up to 800mA current

- Single power supply: +5VDC

- 12.288MHz crystal

- SD card slot

Decodes formats

- Ogg Vorbis

- MP3 = MPEG 1 & 2 audio layer III (CBR+VBR+ABR)

- MP1 & MP2 = MPEG 1 & 2 audio layers I & II optional

- MPEG4/2 AAC-LC(+PNS), HE-AAC v2 (Level 3) (SBR + PS)

- WMA4.0/4.1/7/8/9 all profiles (5-384 kbps)

- FLAC lossless audio with software plugin (up to 24 bits, 48 kHz)

- WAV (PCM + IMA ADPCM)

- General MIDI 1 / SP-MIDI 0 format

Encodes microphone/line formats

- Ogg Vorbis with software plugin

- IMA ADPCM

- 16-bit PCM

Datasheet
