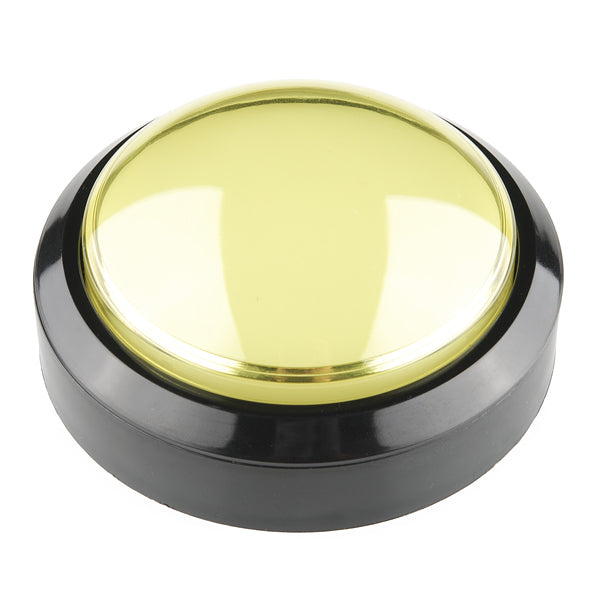

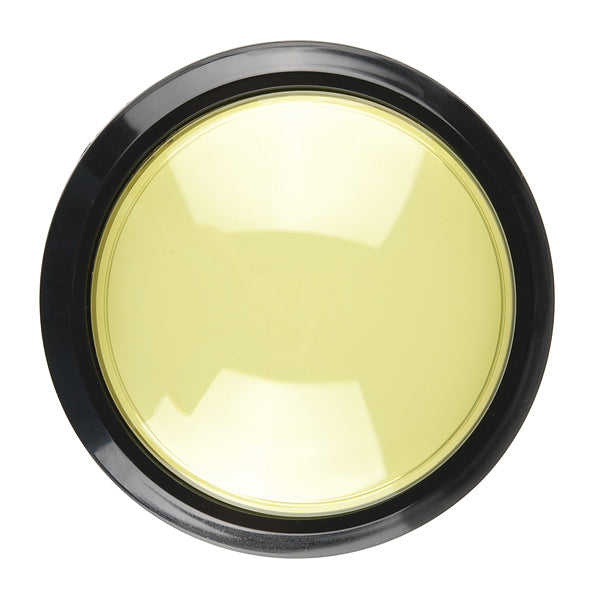

Big Dome Pushbutton - Yellow [COM-11273] - (AD27954)

Description:

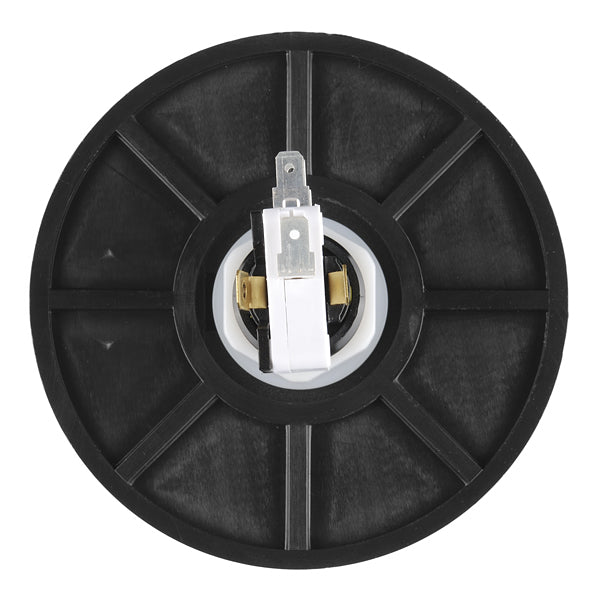

It's the end of the world and you need a button to push. This is the one you need. A 100mm (outer diameter) illuminated dome pushbutton includes a LED, a retaining nut and a pre-installed long life horizontal microswitch. The button can also be adjusted to a low profile by removing the center ring.

Features:

• 12VDC powered LED indicator
• Easy to install and remove bulb holder

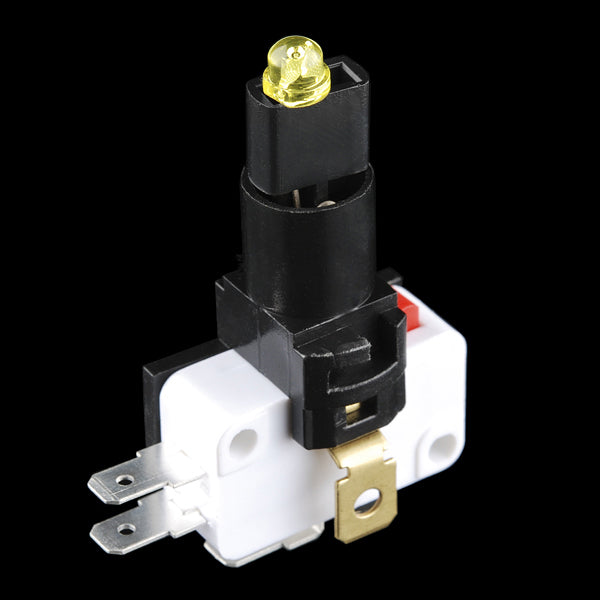

• 3-terminal microswitch included
• Microswitch reliability tested up to 10,000,000 cycles
• Replaceable microswitch
• Polycarbonate lens cap for optical clarity* 100 mm diameter x 72 mm height
• Net weight: 100 grams
• Mounting hole diameter: 24 mm
