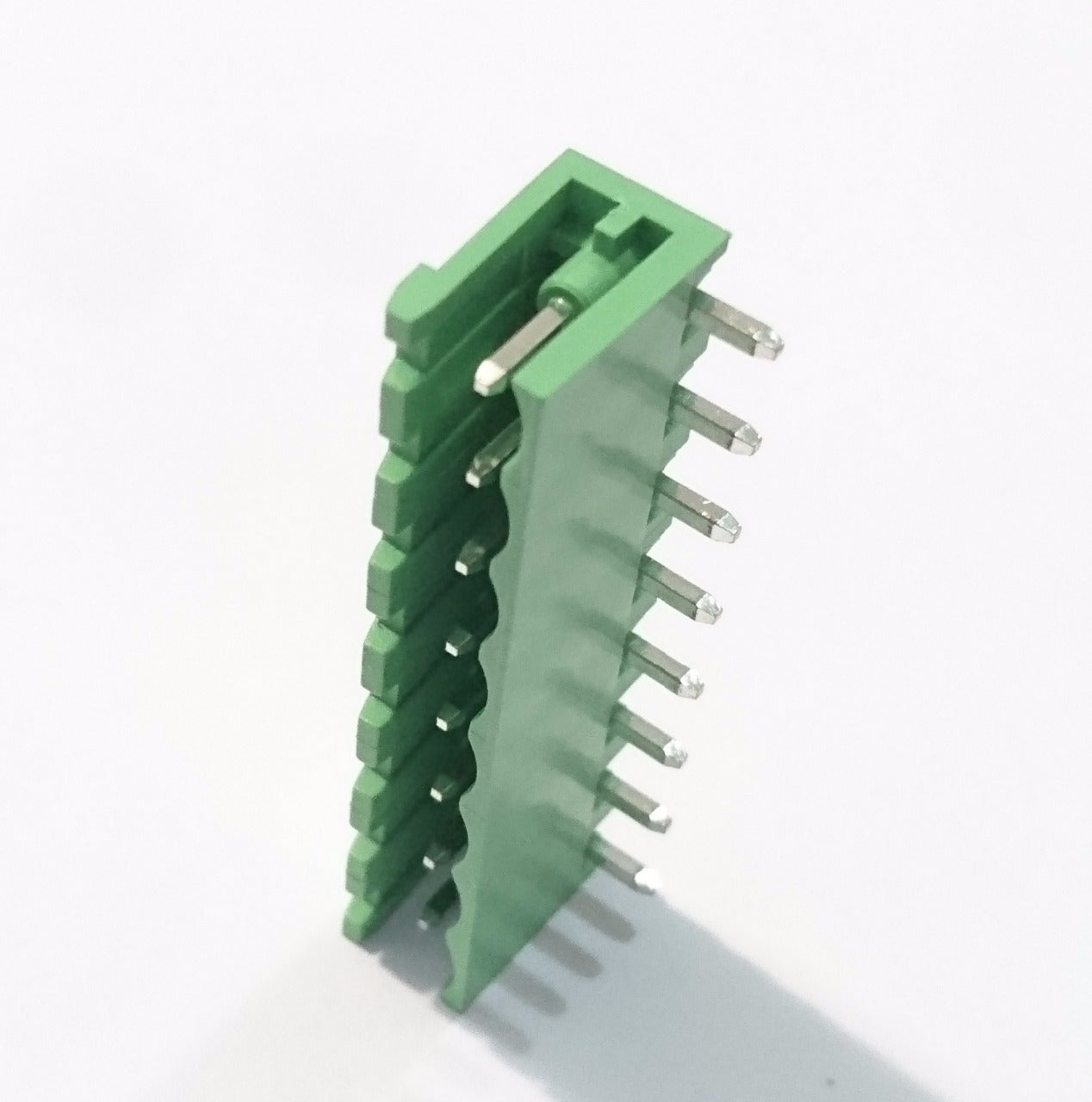

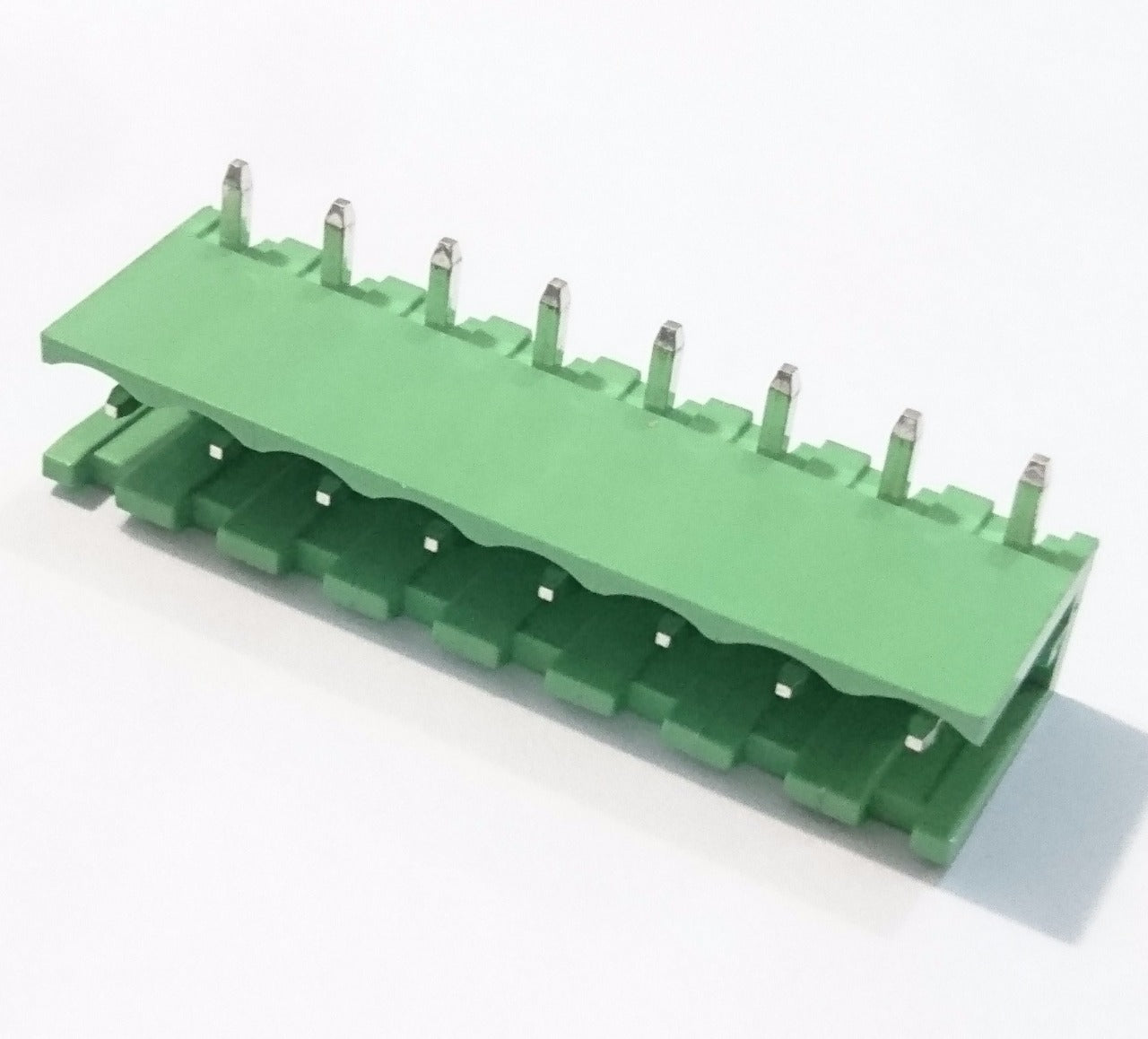

8 Pin Male Plug-in Type Vertical Terminal Block 5mm - (AD27816)

Description:

Screw terminals spaced at 5mm. They come in 2 or more positions. Rated up to 300V at 8A. The terminal can accept 26 to 10 AWG wires. The 5mm pin pitch will align well with standard 0.1" perf boards, but the pins are thick enough (1.0mm OD) that you may need to enlarge the hole diameter on some perf boards.

Specifications:

- Manufacturer: DINKLE

- Series: 5EHDRC-08P

- Pitch: 5mm

- Maximum Voltage: 300V

- Maximum Current: 8A

- Contact Resistance: 20mΩ

- Insulation Resistance: 5000MΩ/1000V

- Wire Gauge: 18AWG

- Working Temperature: -40°C~+105°C

- Length: 5-6mm

- Pin Spacing: Approx. 5.08mm

- Poles: 8P

- Material: Plastic
