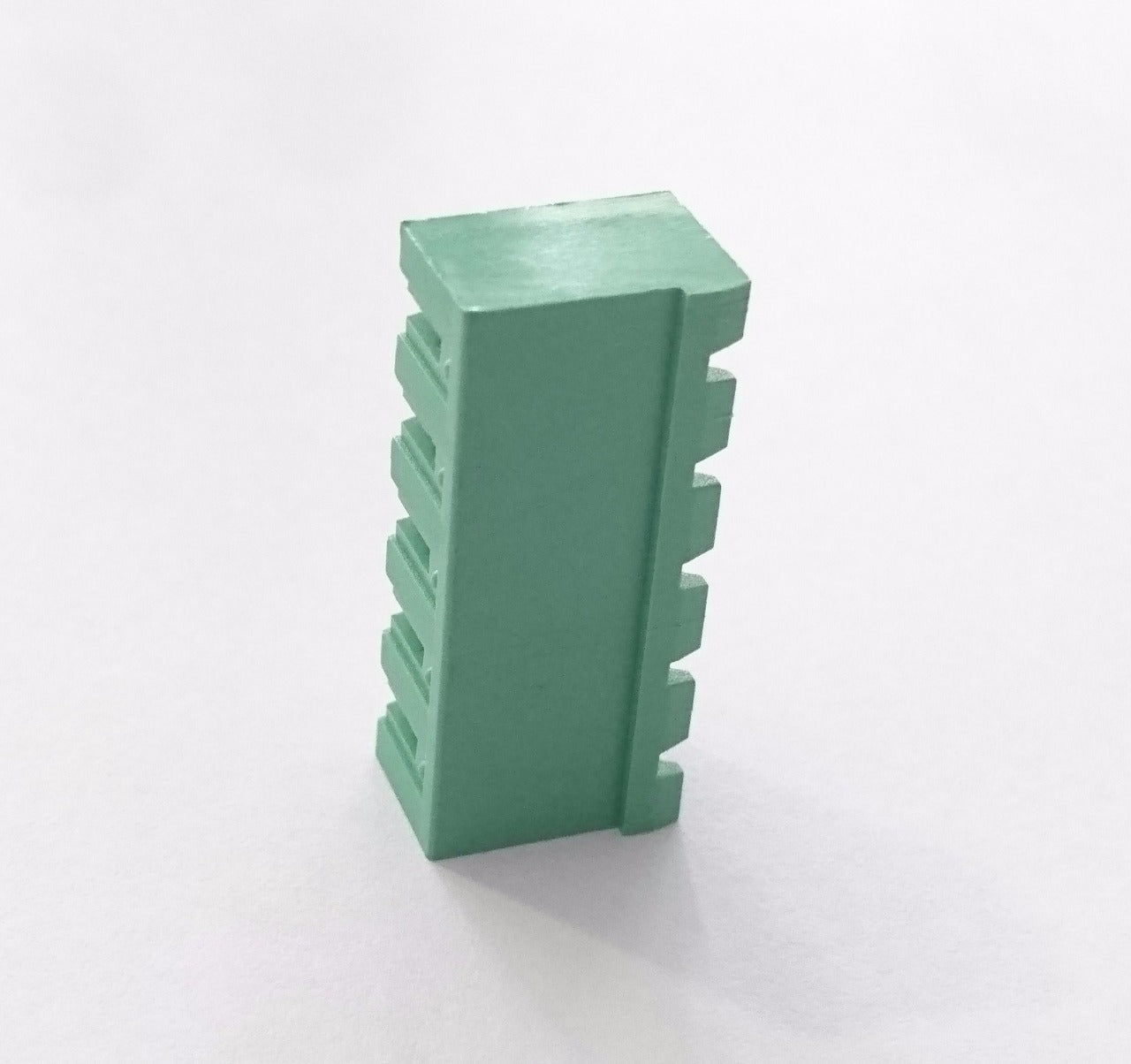

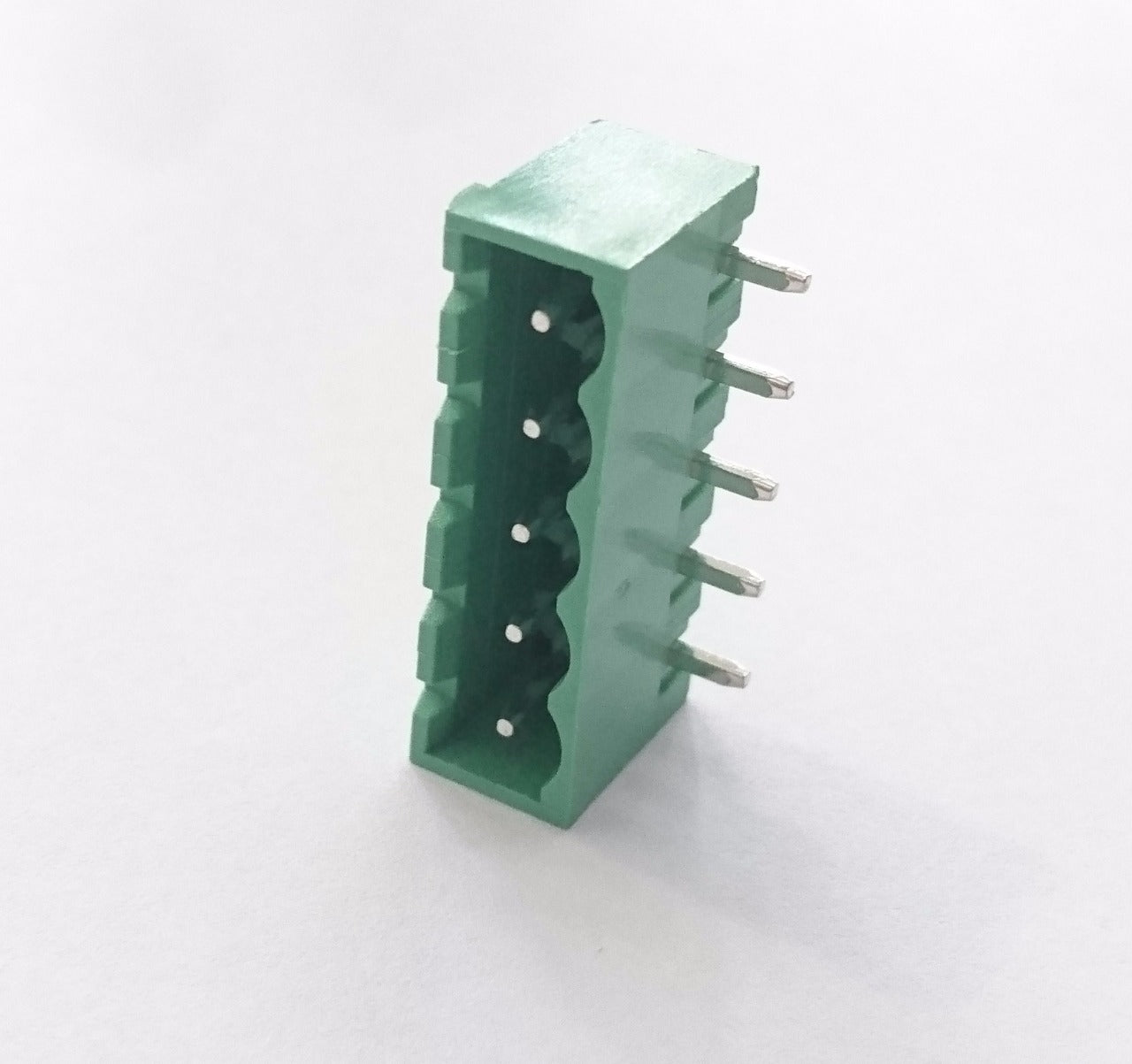

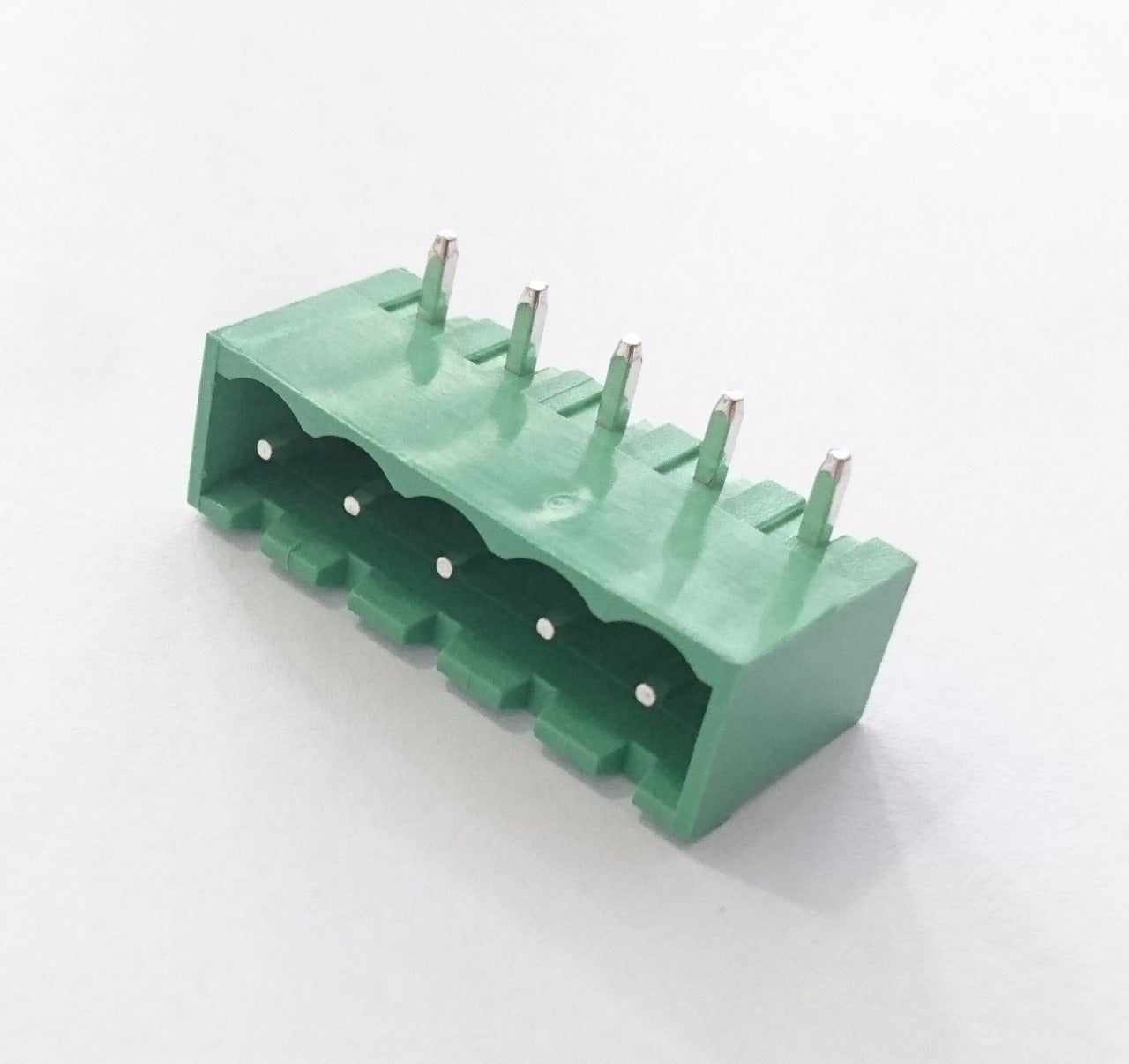

5 Pin Male Plug-in Type Vertical Terminal Block 5mm - (AD27787)

5 Pin Male Plug-in Type Vertical Terminal Block 5mm - (AD27787)

Regular price $1.30 USD
Regular price Sale price $1.30 USD
Sale Sold out
Quantity

Description:

Screw terminals spaced at 5mm. Available in 2 or more positions. Rated up to 300V at 8A. The terminal can accept wires from 26 to 10 AWG. The 5mm pin pitch will align well with standard 0.1" perfboards, but the pins are thick enough (1.0mm OD) that you may need to increase the hole diameter on some perfboards.

Specifications:

- Manufacturer: DINKLE

- Series: 5EHDRC-05P

- Pitch: 5mm

- Maximum Voltage: 300V

- Maximum Current: 8A

- Contact Resistance: 20mΩ

- Insulation Resistance: 5000MΩ/1000V

- Wire Gauge: 18AWG

- Working Temperature: -40°C~+105°C

- Length: 5-6mm

- Pin Spacing: Approx. 5.08mm

- Poles: 5P

- Material: Plastic
