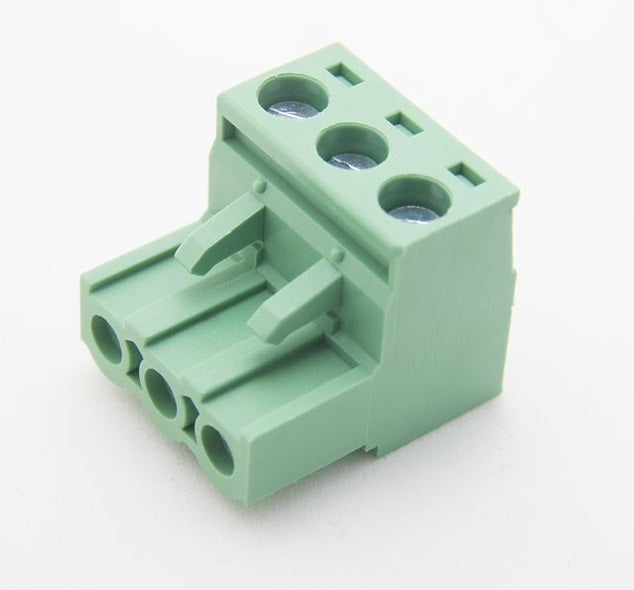

3 Pin Female Plug-in Type Vertical Terminal Block 5mm - (AD27719)

Description:

5mm spaced screw terminals. They come in 2 or more positions. Rated up to 300V at 8A. The terminal can accept 26 to 10 AWG wire. The 5mm pin pitch will line up nicely with standard 0.1" perfboards, but the pins are thick enough (1.0mm OD) that you may need to enlarge the hole diameter on some perfboards.

Specifications:

- Manufacturer: DINKLE

- Series: 5ESDV-03P

- Pitch: 5mm

- Max Voltage: 300V

- Max Current: 8A

- Contact Resistance: 20mΩ

- Insulation Resistance: 5000MΩ/1000V

- Wire Gauge: 18AWG

- Working Temperature: -40°C~+105°C

- Length: 5-6mm

- Pin Spacing: Approx. 5.08mm

- Poles: 3P

- Material: Plastic
