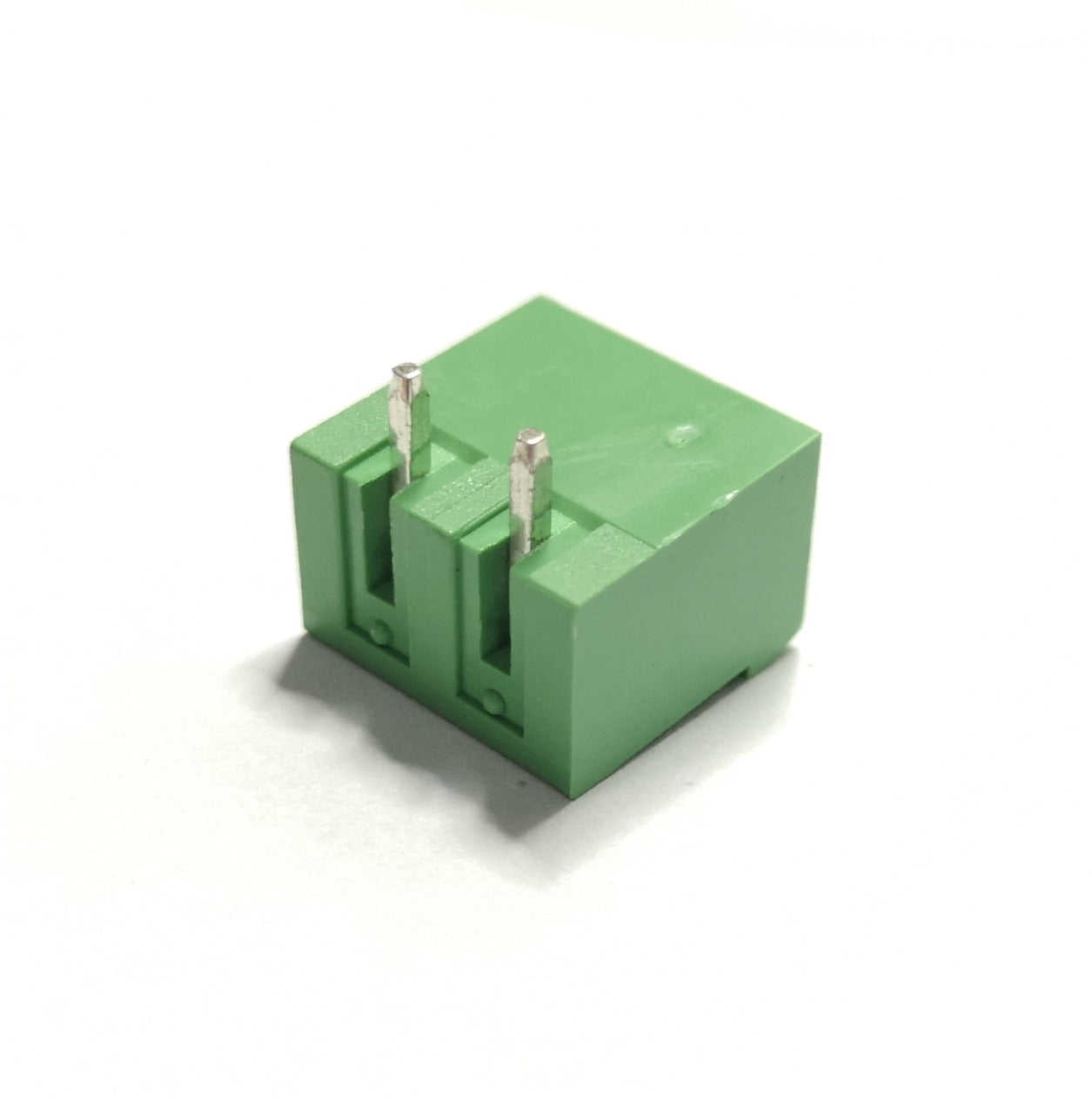

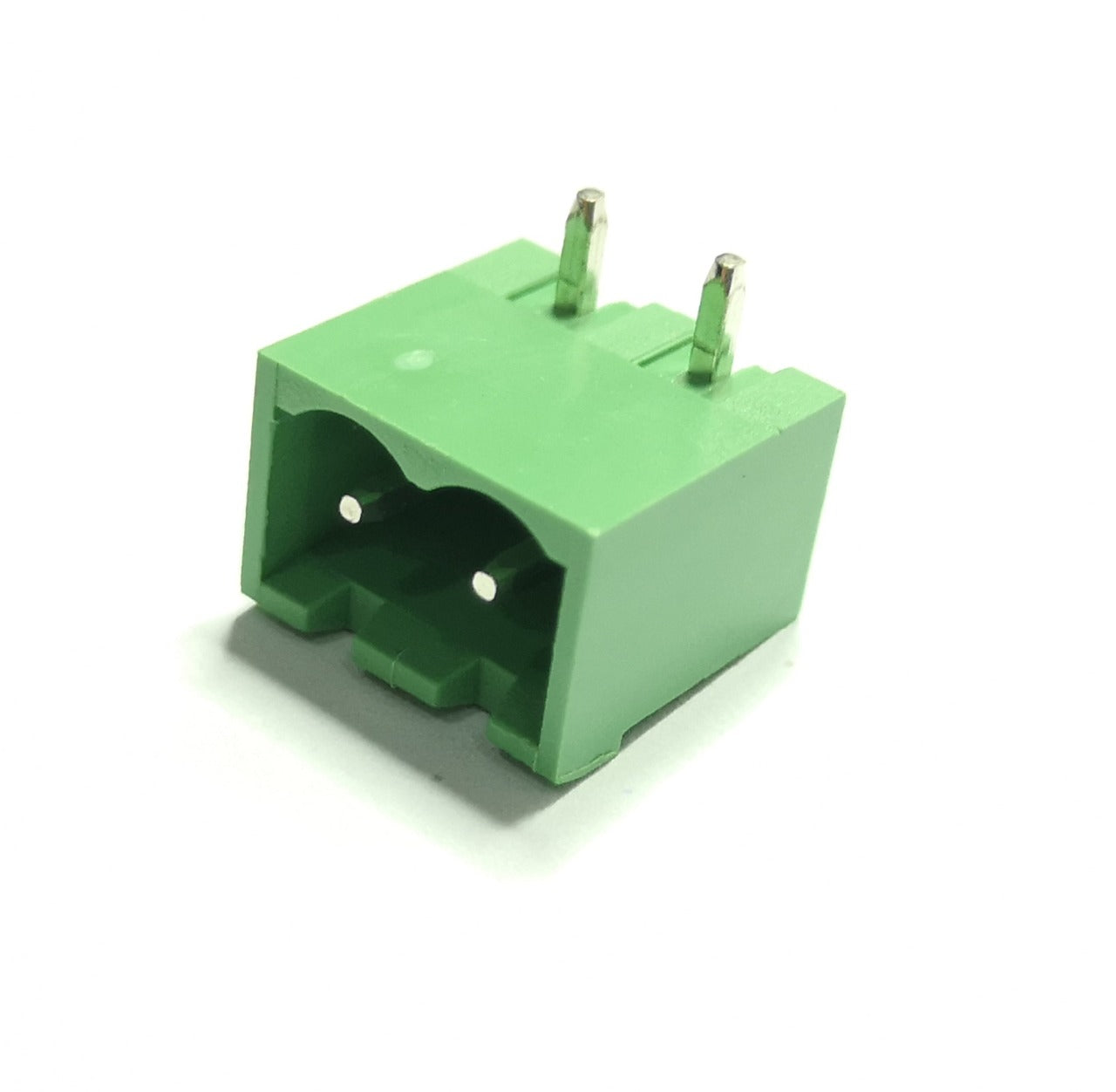

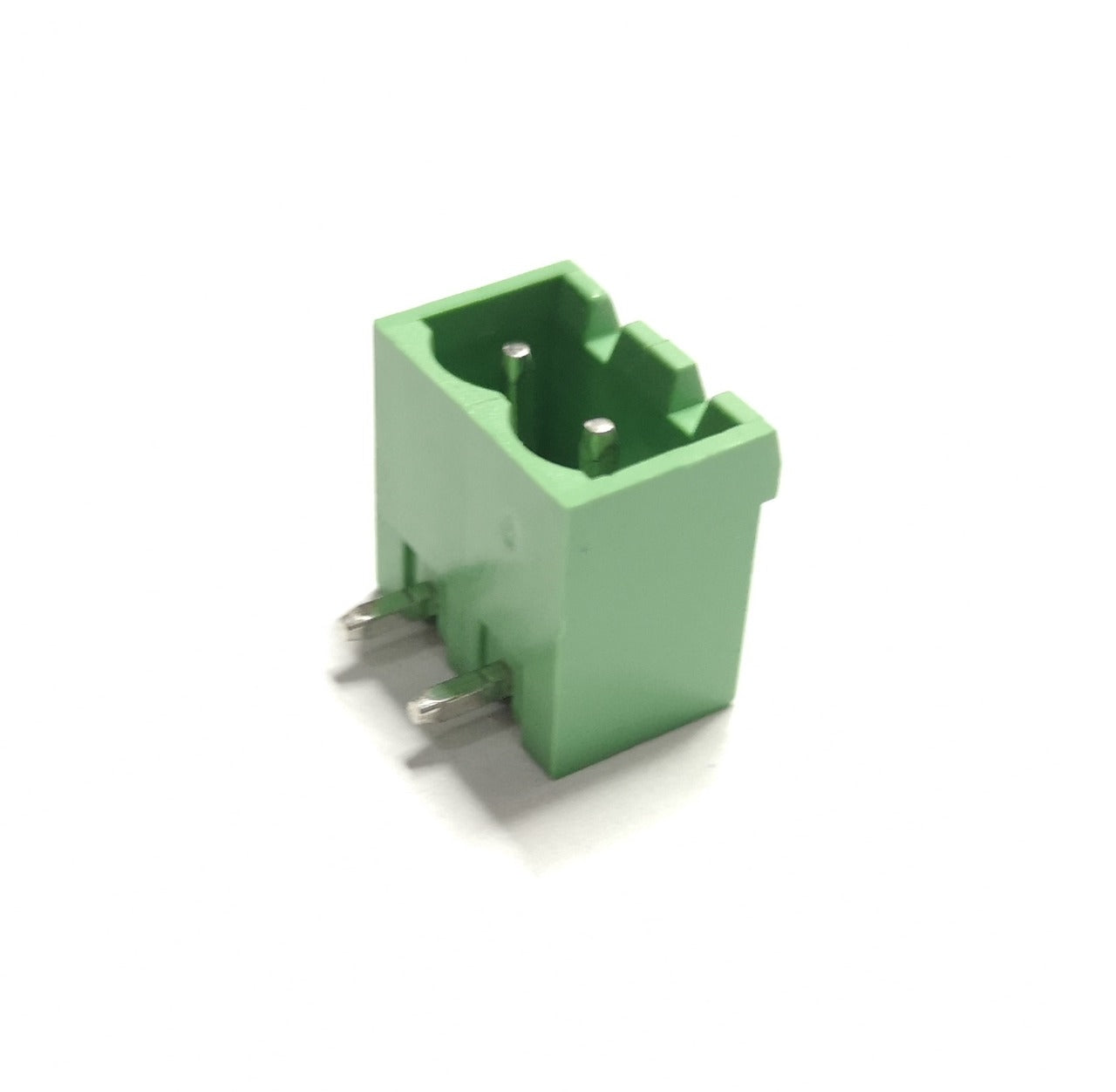

2 Pin Male Plug-in Type Vertical Terminal Block 5mm - (AD27713)
2 Pin Male Plug-in Type Vertical Terminal Block 5mm - (AD27713)
Regular price
$0.80 USD
Regular price
Sale price
$0.80 USD
Quantity
Couldn't load pickup availability
Description:
Screw terminals spaced at 5mm. They come in 2 or more positions. Rated up to 300V at 8A. The terminal can accept 26 to 10 AWG wires. The 5mm pin pitch will line up well with standard 0.1" perfboards, but the pins are thick enough (1.0mm outer diameter) that you may need to increase the hole diameter on some perfboards.
Specifications:
- Manufacturer: DINKLE
- Series: 5EHDRC-02P
- Pitch: 5mm
- Max Voltage: 300V
- Max Current: 8A
- Contact Resistance: 20mΩ
- Insulation Resistance: 5000MΩ/1000V
- Wire Gauge: 18AWG
- Working Temperature: -40°C~+105°C
- Length: 5-6mm
- Pin Spacing: Approx. 5.08mm
- Poles: 2P
- Material: Plastic
