Stepper Motor Mount - NEMA 23 (Actobotics) - (AD27441)

Description:

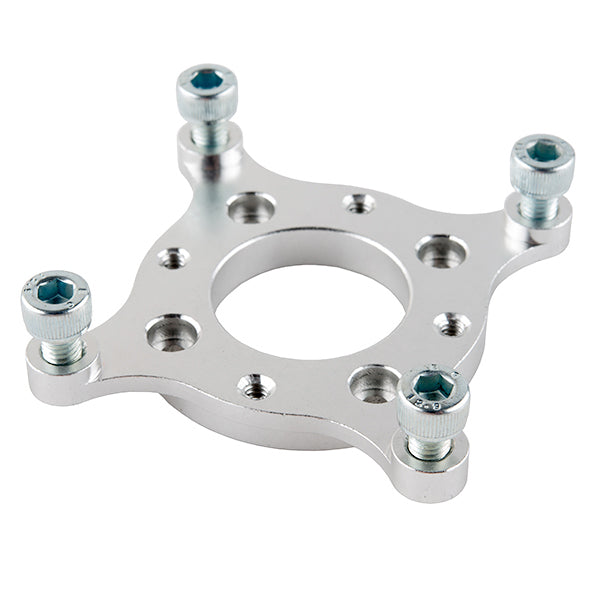

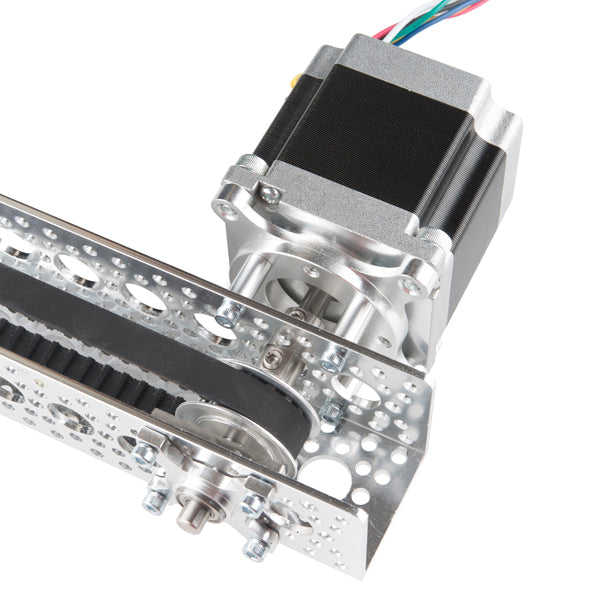

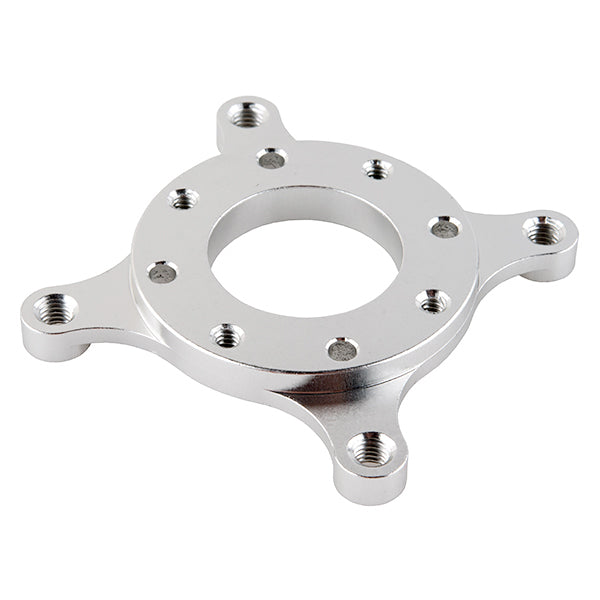

The NEMA 23 Stepper Motor Mount attaches to the top of a stepper motor to further ease its integration into your Actobotics project. Thanks to its 1.5" hub pattern, this mount can be connected to Actobotics channels or any other surface with the same hub pattern, making it easy to build your 3D printer or precision camera slider. The mount includes four M5 x 10mm x 0.8mm pitch mounting screws to secure the stepper motor and has a 0.5" inner diameter.

Actobotics is a robotic building system based on extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, almost all Actobotics components can be intuitively connected. The wide range of components makes it easy to build complex electromechanical prototypes or finished projects.

Includes:

• 1 NEMA 23 Stepper Motor Mount
• 4 M5 x 10mm x 0.8mm Mounting Screws

Features:

• NEMA 23
• Inner Diameter: 1"
• Hub Pattern: 1.5"

Documents:

• Product Page (555160)
• Product Video
