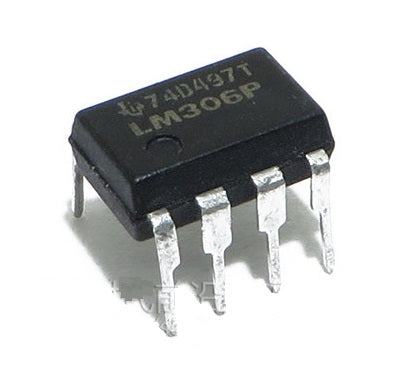

LM306 Differential Comparator With Strobes - (AD25860)

Description:

The LM306 is a high-speed voltage comparator with differential inputs, a low-impedance output with high current capability (100 mA), and two strobe inputs. This device detects low-level analog or digital signals and can directly drive digital logic, lamps, and relays. It incorporates short-circuit protection and over-current limiting. A low-level input at either strobe input keeps the output high, regardless of the differential input. When both strobe inputs are open or at a high logic level, the output voltage is controlled by the differential input voltage. The circuit operates with any negative supply voltage between -3 V and -12 V with minimal variation in performance. The LM306 is designed to operate between 0 °C and 70 °C.

Datasheet
