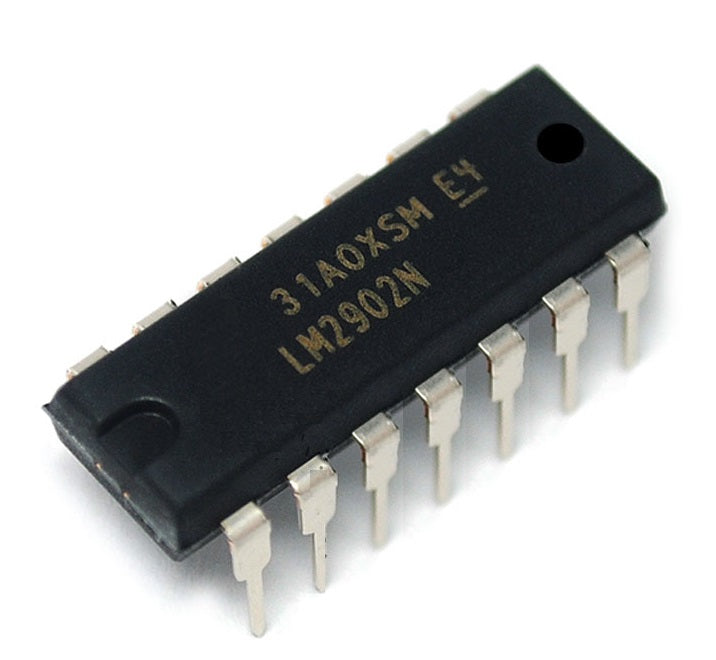

LM2902 Quad Operational Amplifier - (AD25534)

Description:

The LM324/LM324A, LM2902, LM224/LM224A consist of four independent, high-gain, internally frequency compensated operational amplifiers that were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible provided that the difference between the two is not greater than 32 volts. Application areas include transducer amplifiers, DC gain blocks and all conventional OP-AMP circuits that can now be easily implemented in single power supply systems.

Features:

- Internally frequency compensated for unity gain

- Large DC voltage gain: 100dB

- Wide power supply range: LM224 / LM224A, LM324 / LM324A: 3V ~ 32V (or ±1.5~15V), LM2902: 3V ~ 26V (or ±1.5V ~ 13V)

- Input common mode voltage range

- Large output voltage swing: 0V to VCC -1.5V

- Current drain suitable for battery operation
