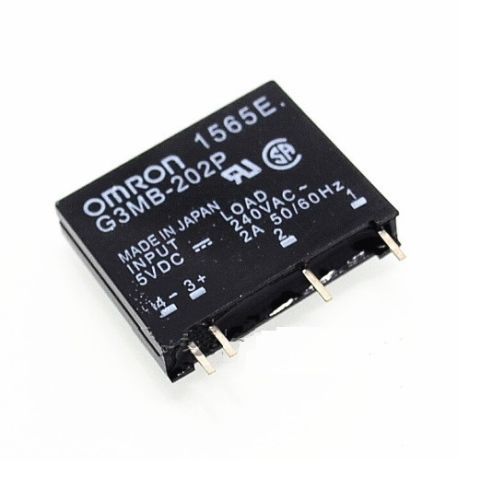

G3MB-202P Omron Solid State Relay 5VDC - 240VAC - (AD25198)

Description:

A Solid State Relay (SSR) allows you to control high current AC loads from a lower voltage DC control circuit. Solid State Relays have several advantages over mechanical relays. One such advantage is that they can be switched with a much lower voltage and much lower current than most mechanical relays. Also, because there are no moving contacts, Solid State Relays can be switched much faster and for much longer periods without wearing out.

Features:

• The bottom is about three times smaller than that of the G3M.
• Low-cost switches with SIP packaging for loads up to 2 A.
• Built-in snubber circuit and optional input resistor.
• Two packages available for greater design flexibility.
• The G3MB-202PEG-4-DC20MA is directly compatible with the Motorola M0C2A-60 Power Triac.

Datasheet
