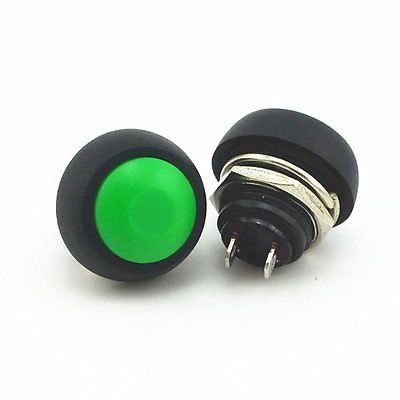

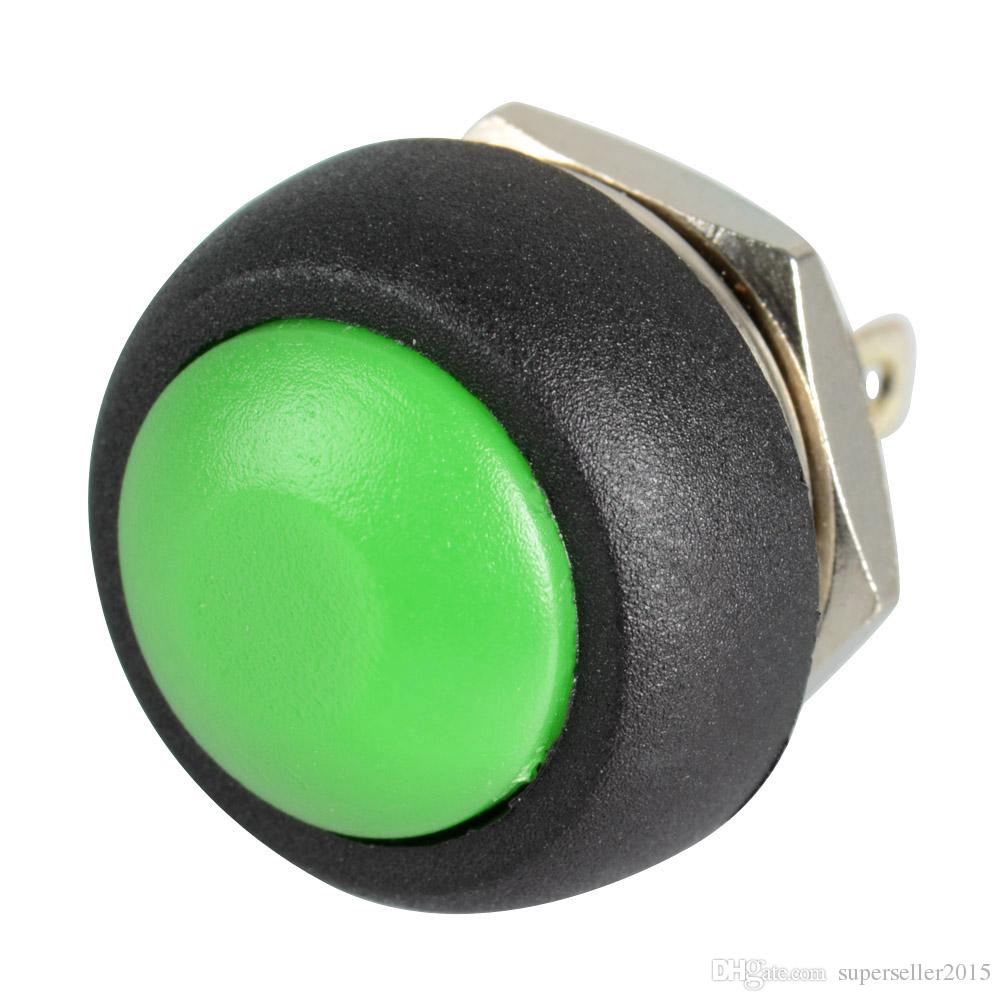

PBS-33B Green Waterproof Momentary Push Button Switch Round 12mm - (AD24597)

Description:

This is a perfect option if you need a heavy-duty button! These plastic buttons are a small and very durable panel-mount push-button switch. It is a 12mm threaded SPST. This button is a push-type, meaning that while it is pressed it is ON, and when released it changes its state to OFF. These buttons are rated for up to 3A and 250VAC.

Sold individually!

Features:

- Push to ON, release to OFF

- Model: PBS-33B

- Max. rating: 3A @ 125VAC, 1A @ 250VAC

- Type: SPST N.O. (normally open)

- Terminal: 2-Pin (OFF-ON momentary)

- Contact resistance: 20mΩ max.

- Insulation resistance: ≥100MΩ at 500VDC

- Dielectric strength: 1000VAC for 1 minute

- Operating temperature: -25 ℃ - 85 ℃

- Electrical life: 50,000 cycles

- Diameter: 12mm
