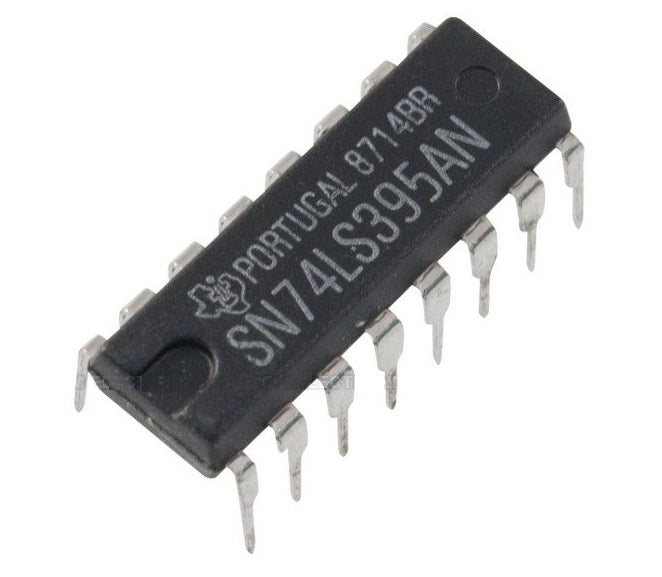

74LS395 4-Bit Shift Register With 3-State Outputs - (AD24512)

Description:

The SN74LS395 is a 4-bit register with 3-state outputs and can operate in either synchronous parallel load mode or serial right-shift mode, as determined by the select input. A low-active asynchronous master reset (MR) input overrides synchronous operations and clears the register. A high-active output enable (OE) input controls the 3-state output buffers but does not interfere with other operations. The fourth stage also features a conventional output for cascading purposes in multi-stage serial operations.

- 4-bit register with left or parallel shift

- 3-state outputs

- Input clamping diodes limit high-speed termination effects

Datasheet
