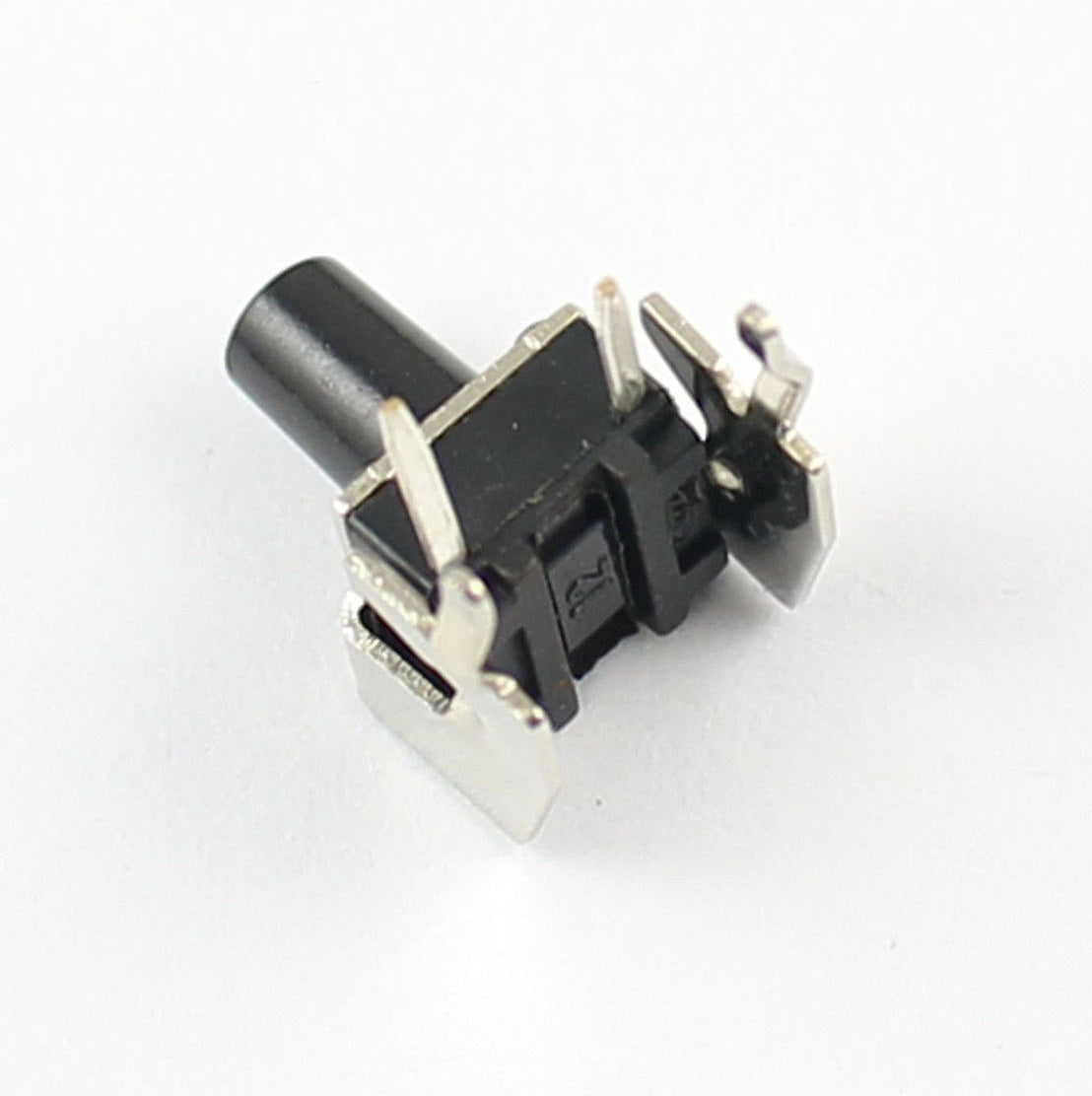

6x6x9mm Right Angle 2-Pin Momentary Push Button - (AD24402)

Description:

This is a 6mm square SPST button. What we really like is the small button and the good tactile feel (it "clicks" really nicely). This button is ideal for user input or a good reset button on a PCB.

Features:

- Pins: 2

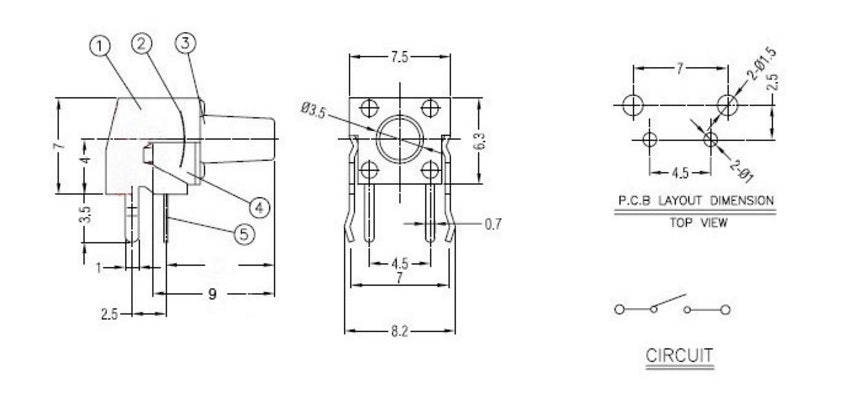

- Dimension: 6 x 6 x 9 mm (L * W * H)

- Button Diameter: 3.5 mm

- Height: 9mm

- Materials: Plastic, metal, electrical parts

- Color: Black, silver tone

Electrical Characteristics:

- Rated Load: DC12V 0.5A

- Contact Resistance: <= 0.03Ω

- Withstand Voltage: AC250 V (50Hz) / MIN

- Actuating Force: 00 ~ 300gf

- Insulation Resistance:> = 200MΩ

- Temperature: -10 ° ~ + -60 ° C

- Life: 10000 actuations
