Adafruit PCB Ruler v2 - 6" - (AD24107)

Description:

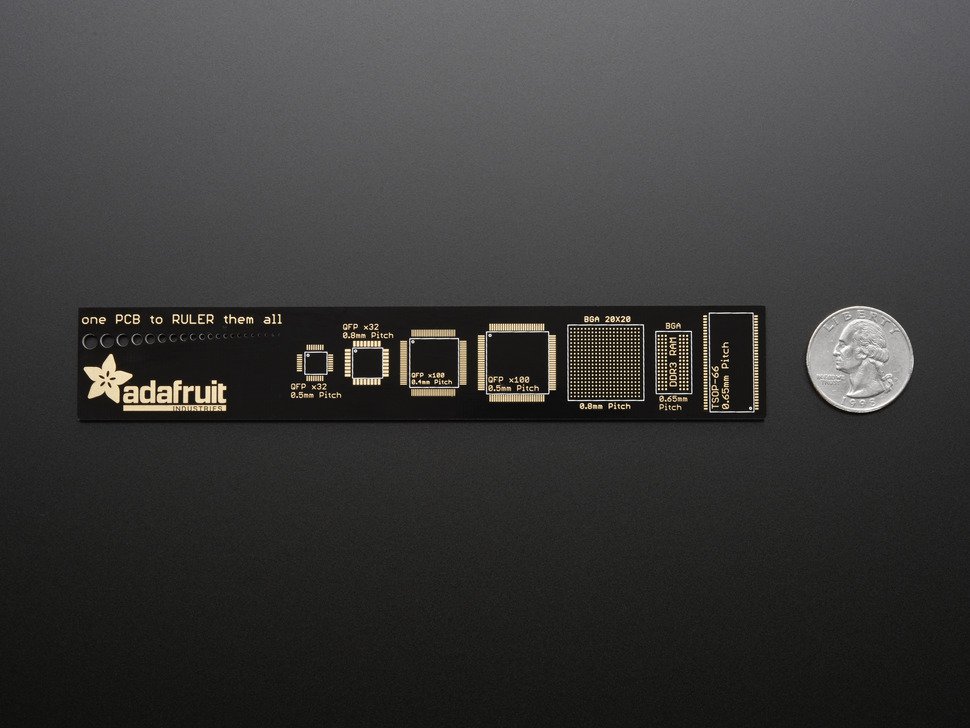

The first time you soldered a surface-mount component, you may have been surprised: "These are really small parts!" And besides, there are dozens of different names! QFN, TDFN, SOIC, SOP, J-Lead: what do they mean, and how can you tell their size? Now you can have a reference board at your fingertips with this elegant PCB reference ruler.

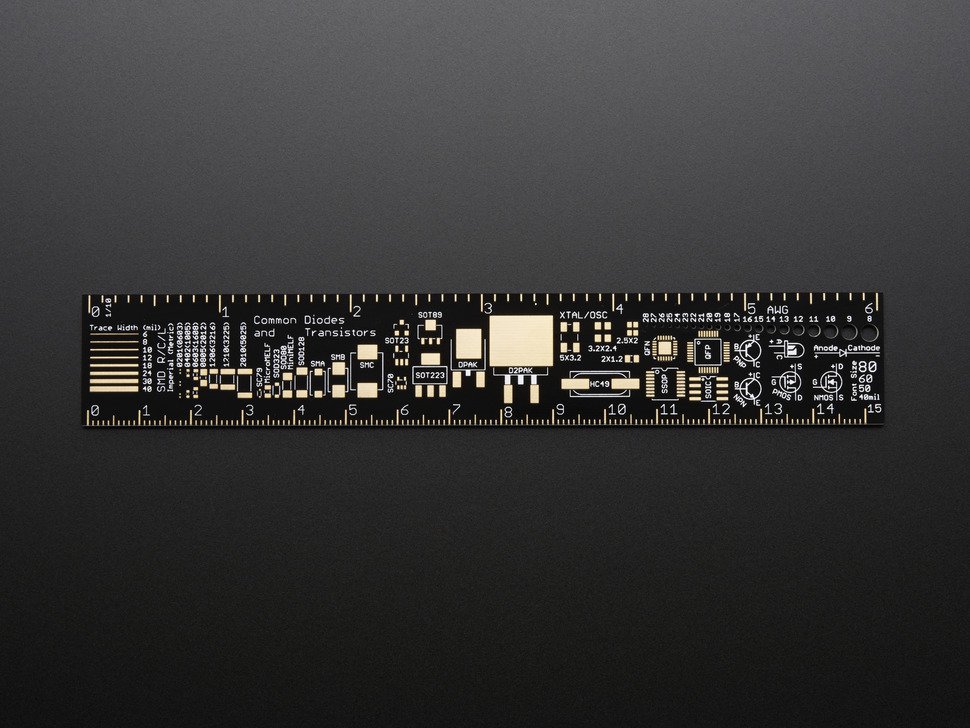

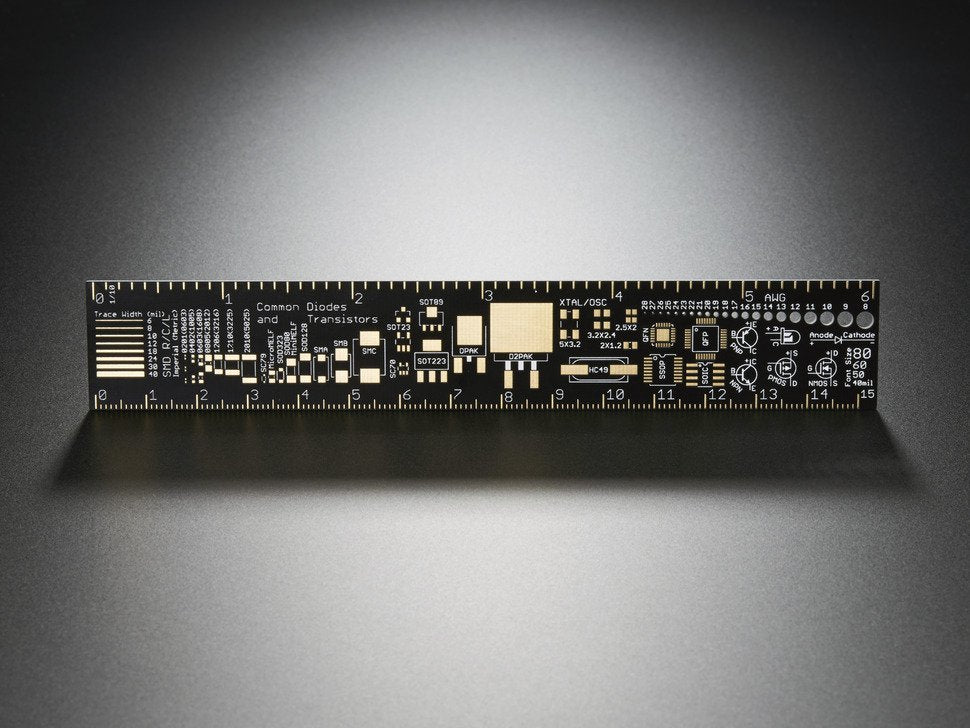

Measuring approximately 1" x 6", this gold-plated FR4 standard-thickness ruler includes the most common component packages. It also includes a font size guide, a trace width diagram, and an AWG sizing drill bit set so you can measure the thickness of your wires.

Characteristics:

• Dimensions: 25.6 mm / 1" x 153.98 mm / 6.06" x 1.64 mm / 0.06"
• Weight: 12.07 g
