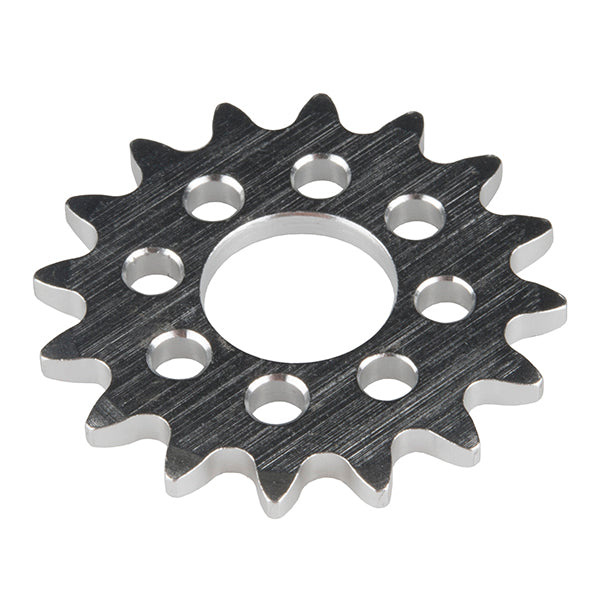

Sprocket - Hub Mount (0.25", 16T; 0.5" Bore) [ROB-12207] - (AD24041)

Description:

These aluminum hub-mountable sprockets can be used to drive wheels or other sprockets with 0.25" chain. They have 16 teeth with a 0.25" pitch, a 1.407" OD and a 1/2" ID and use a 0.77" hub pattern.

Actobotics is a robotics building system based on extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, almost all Actobotics components can be intuitively connected. The wide range of components makes the construction of complex electromechanical prototypes or finished projects a reality.

Dimensions:

• Teeth: 16-tooth @ 0.25"
• Outer Diameter: 1.407"
• Inner Diameter: 0.50"
• Hub Pattern: 0.77"

Documents:

• SketchUp Part
• Product Page (615102)
