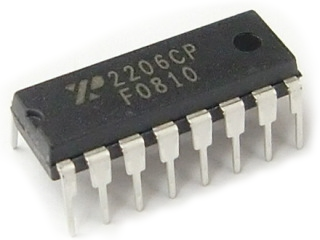

XR-2206 Monolithic Function Generator - (AD2399)

Description:

The XR-2206 is a monolithic function generator IC capable of producing high-quality sine, square, triangular, ramp, and pulse waveforms with high stability and accuracy.

The output waveform can be both AM or FM, meaning it can vary in both frequency and amplitude by an external voltage. The operating frequency can be externally selected over a range from 0.01Hz to more than 1MHz.

Features:

- Low sine wave distortion, typically 0.5%

- Excellent thermal stability, 20ppm/°C (typical)

- Wide sweep range, 2000:1 (typical)

- Low power supply sensitivity, 0.01%V (typical)

- Linear amplitude modulation

- TTL compatible FSK control

- Wide power supply range, 10V to 26V

- Adjustable duty cycle, 1% to 99%

Datasheet
