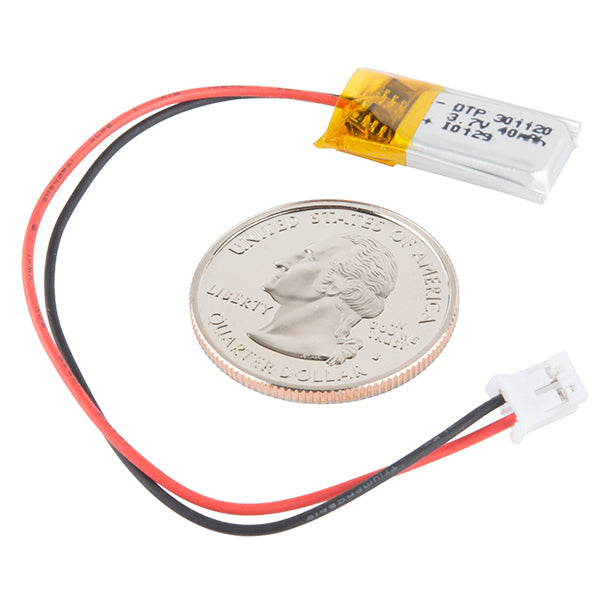

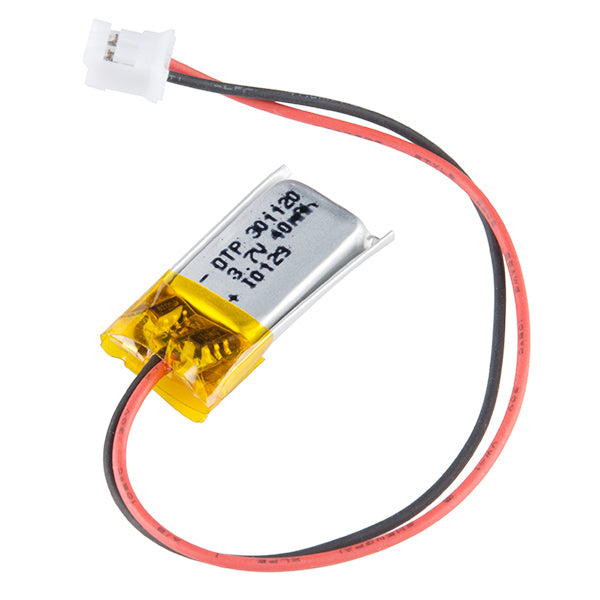

40mAh - Lithium Ion Battery - (AD23896)

Description:

These are very thin, extremely lightweight batteries based on Lithium Ion chemistry. Each cell outputs a nominal 3.7V at 40mAh! They come terminated with a standard 2-pin JST-PH connector - with 2mm spacing between pins. These batteries require special charging. Do not attempt to charge these with anything other than a specialized Lithium Polymer charger.

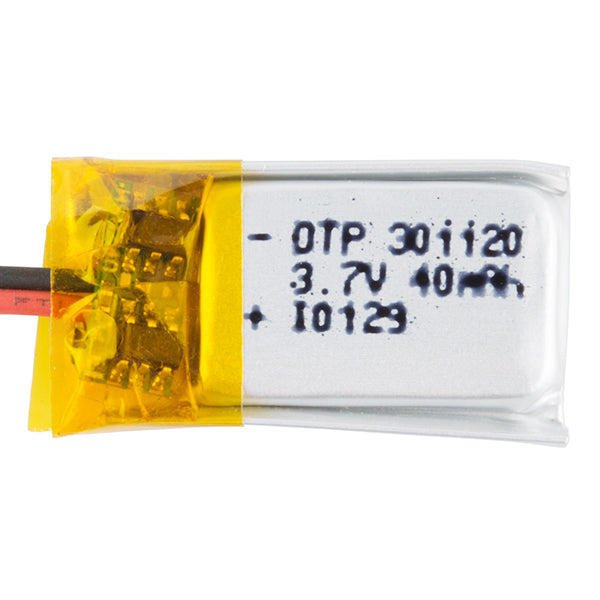

The battery includes built-in over-voltage, over-current, and minimum voltage protection. Be careful when using this battery in portable projects. When using conductive thread, a short in the thread can create sparks and heat. We recommend using coin cell batteries for beginners.

Features:

- Nominal Capacity: 40mAh

- Nominal Voltage: 3.70V

Documents:

• Datasheet
• MSDS
