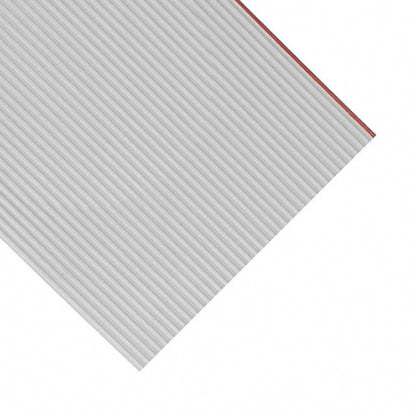

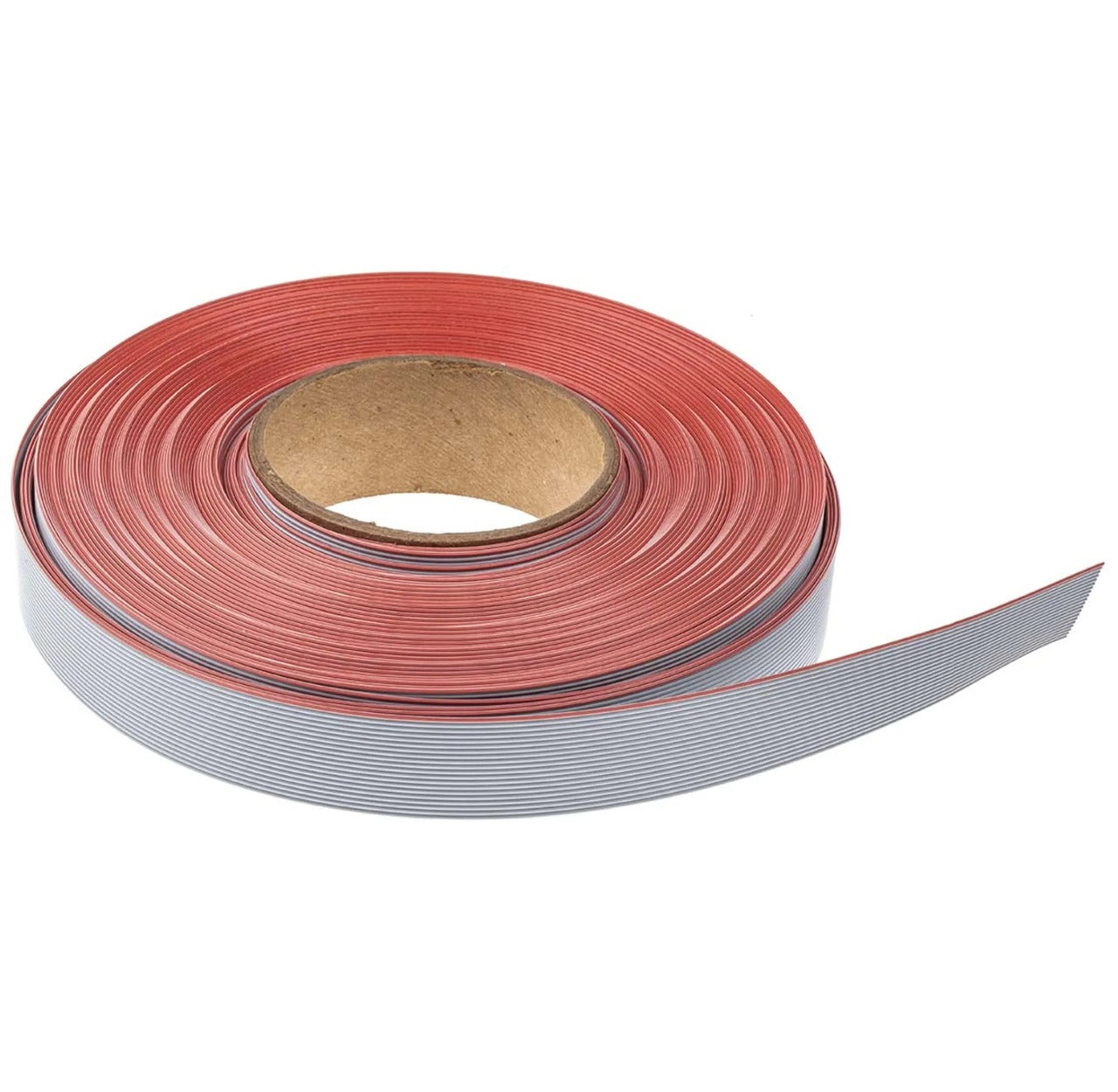

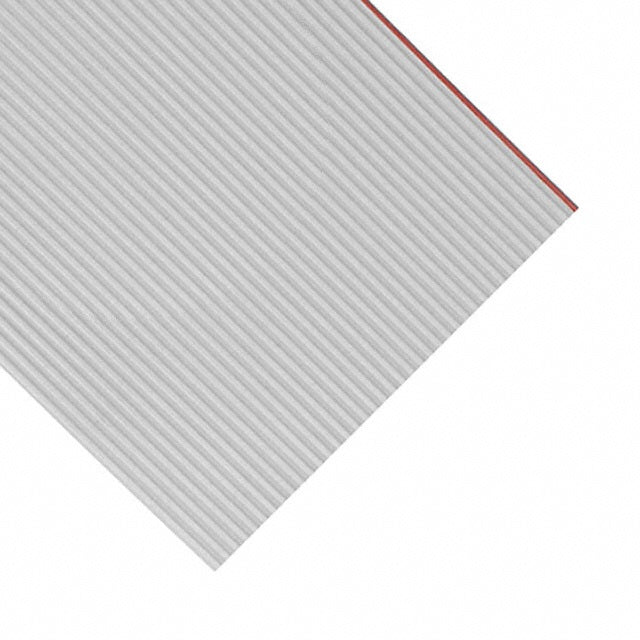

HF625/20-30 Flat Cable 3M - 20 wire (1 Meter) - (AD22857)

Description:

Ribbon cable is very useful in situations where many connections need to be made without a big mess of wires. Nothing makes a project look more finished than a neatly organized wire harness. This is a 20-wire flat cable from 3M, 28AWG gauge.

Features:

- Manufacturer: 3M

- Product Category: Ribbon Cables

- Number of Conductors: 20 Conductors

- Wire Gauge: AWG: 28 AWG

- Conductor Spacing: 1 mm (0.039 in)

- Color: Gray (dark gray)

- Rated Voltage: 300 V

- Insulation Material: Polyolefin (PO), halogen-free

- Conductor Material: Tinned Copper

- Stranding: 7 x 36

- Minimum Operating Temperature: - 40 C

- Maximum Operating Temperature: + 105 C

Datasheet
