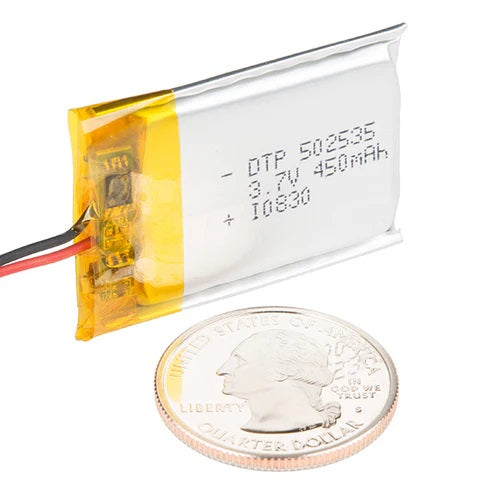

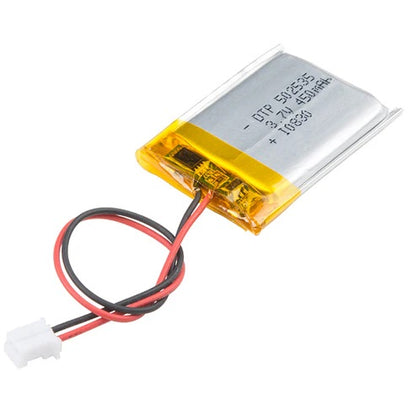

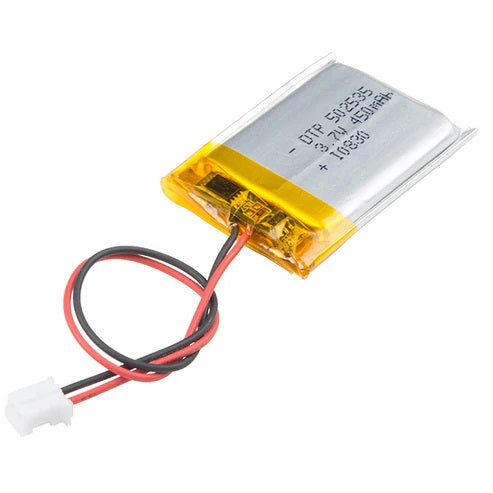

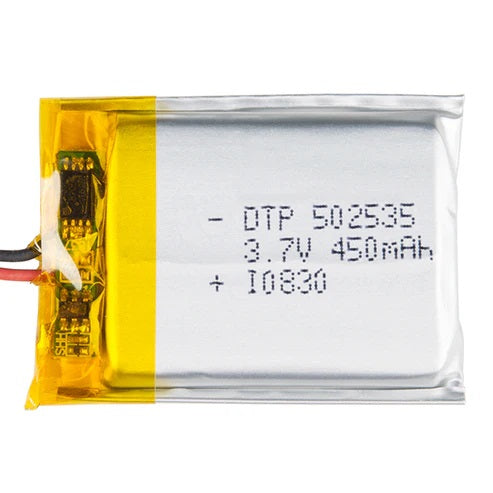

450mAh - Lithium Ion Battery - (AD21573)

Description:

This battery is very small and extremely light, based on lithium-ion chemistry, with the highest energy density currently in production. Each cell outputs a nominal 3.7V at 450mAh. It comes with a standard 2-pin JST-PH connector with 2mm pin spacing. These batteries require special charging; do not attempt to charge them with anything other than a specialized lithium polymer charger.

The battery includes built-in over-voltage, over-current, and minimum voltage protection. Please exercise caution when using this battery in wearable projects. When using conductive thread, a short in the thread can generate sparks and heat. We recommend using coin cell batteries.

Dimensions: 25.0 mm x 38.0 mm x 5 mm

Features:

• Nominal Capacity: 450 mAh
• Nominal Voltage: 3.70 V
• Max. Charge Current: 1 C (450 mA)
• Normal Charge Current: 0.2 C (80 mA)

Documents:

• MSDS
• Datasheet
