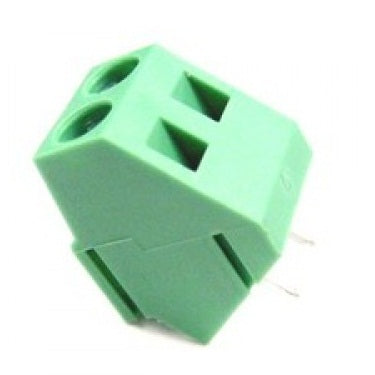

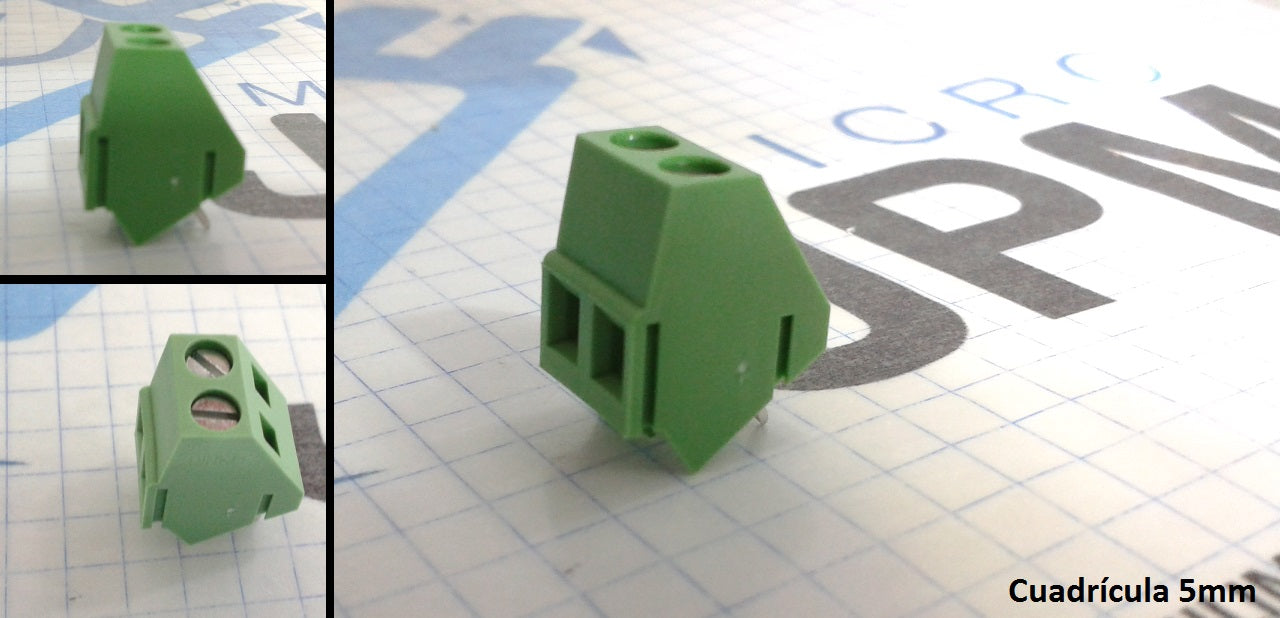

EK500A-2 Terminal Block 2 Poles 5mm 45° - (AD1983)

Description:

5mm spaced screw terminals. Comes in 2 or 3 positions and has the really cool feature of a sliding block union to form any size you need (4 pins, 5, or up to 20 pins without problems). Rated up to 300V at 20A. The terminal can accept 26 to 12 AWG wires. The pin pitch is 5mm and will align well with standard 0.1" perfboards, but the pins are thick enough (1.0mm OD) that you may need to increase the hole diameter on some perfboards.

Specifications:

- ROHS

- Number of poles: to choose: 2

- Pin spacing: 5mm

- Angle: 45°

- Fits 12 - 24 AWG wire

- Current rating: 20A @ 300V

- Insulation resistance: 5000Mohm/DC1000V
