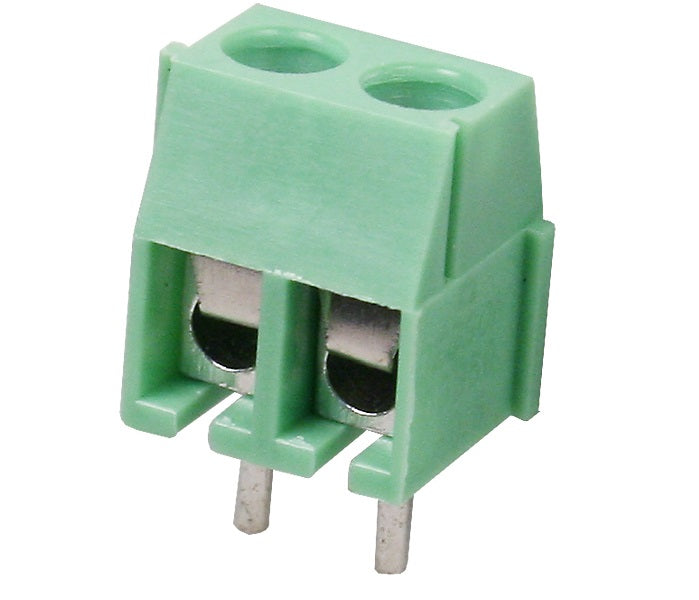

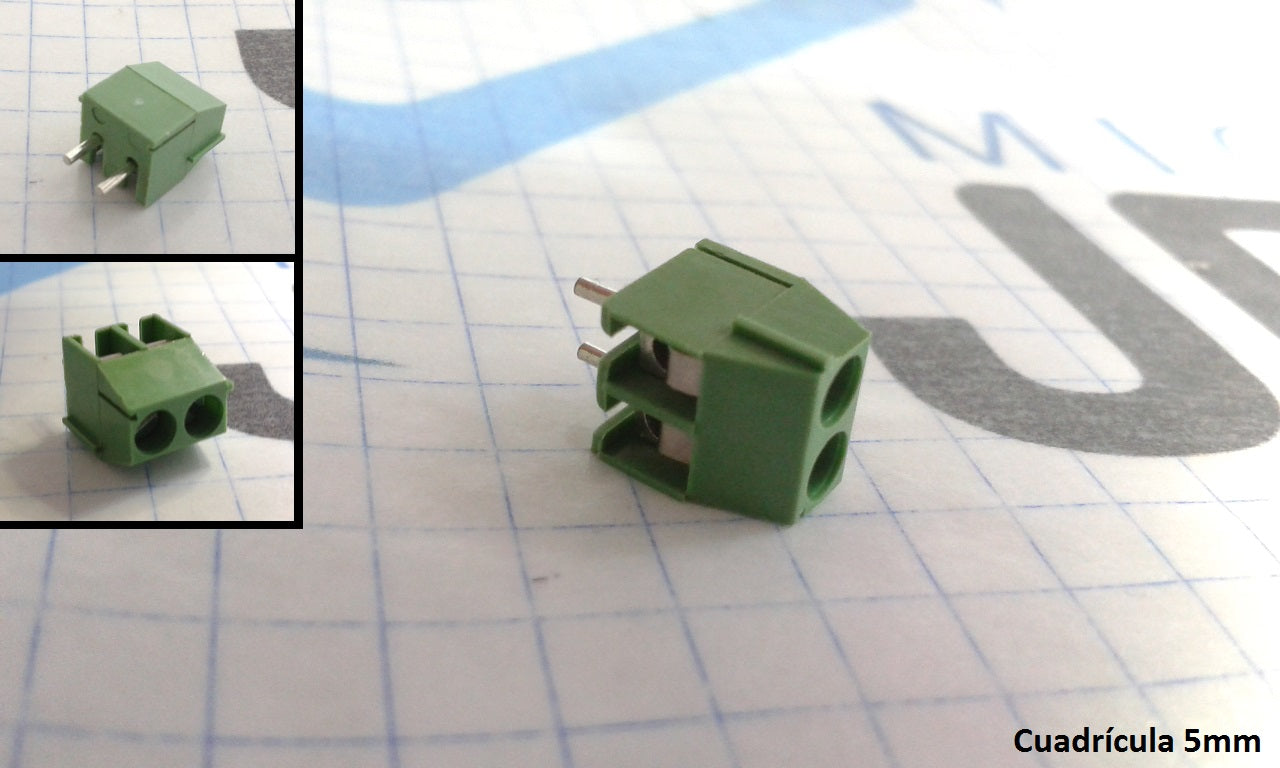

DG350-2 Terminal Block 2-Pole 3.5mm - (AD1976)

Description:

Screw terminals spaced at 3.5mm. Available in 2 or 3 positions and features a really cool sliding lock to form any size you need (4-pin, 5-pin, or up to 20-pin without issue). Rated up to 300V at 5A. The terminal can accept 26 to 18 AWG wires. The pin pitch is 3.5mm, these are thick enough pins (1.0mm outer diameter) that you may need to increase the hole diameter on some perfboards.

Specifications:

- Number of poles: 2

- Pin spacing: 3.5mm

- Fits 18 - 26 AWG wire

- Current rating: 5A @ 300V

- Insulation resistance: 5000Mohm/DC1000V
