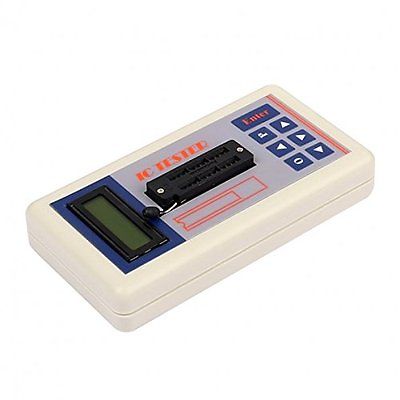

TSH-06F IC Tester - (AD18690)

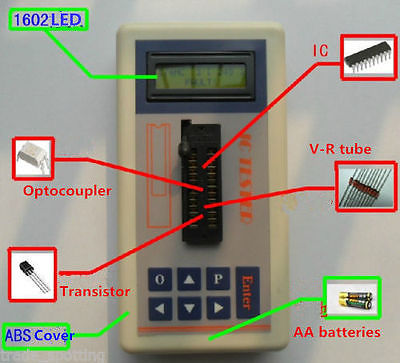

Multifunction IC tester is a professional instrument designed for front-line engineering personnel and maintenance personnel. Different test modes can be selected on this instrument such as: 5V mode, 3.3V mode, AUTO mode can test 74HC series 74LS series, CD4000 series, HEF400 series, 4500 series, operational amplifiers, interface class chip, transponder optocoupler automatic identification regulator regulator value recognition, and so on. Built for 13 kinds of various chips, more than 420 kinds of transistors, covering a majority of 24 feet or less as a universal device, can significantly reduce the workload and improve work efficiency

Operating Instructions:

The panel has 5 buttons: left, right, down and Enter keys.

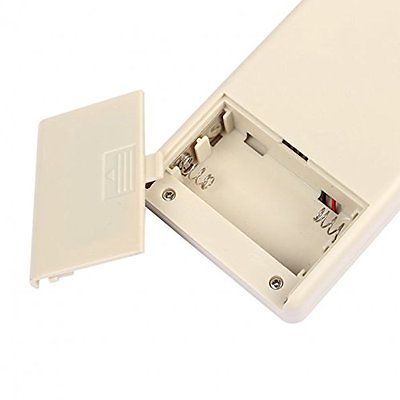

The Next key is used to set the directory and change the model number, the arrow keys are used to move around the cursor options to change. The Enter key is used to switch the machine and execute the test command. Open the battery cover, the laminated battery, and then close the battery cover. Press Enter for more than 2 seconds to start, boot will automatically display the current battery voltage, when the voltage is lower than 7.5, please replace the battery, low voltage will affect the reliability of the test result and automatic shutdown protection.

Boot: Press the key for 2 seconds and then boot.

Power off: 1. In the OFF directory, press the Enter button to power off immediately.

2. In any directory, press the Enter button for more than 10 seconds and then off.

3. In no operation after 60 seconds, automatic shutdown
